Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Ford Mustang

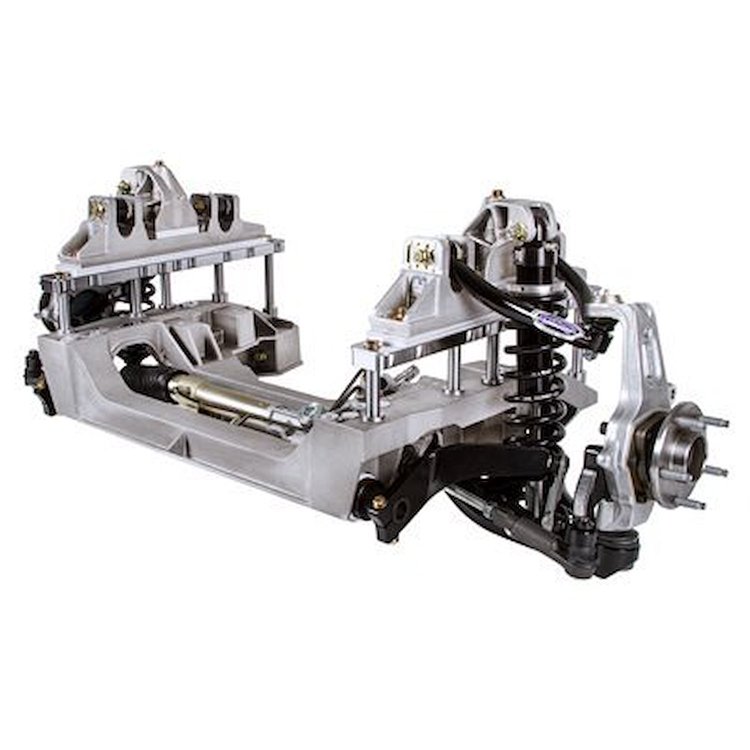

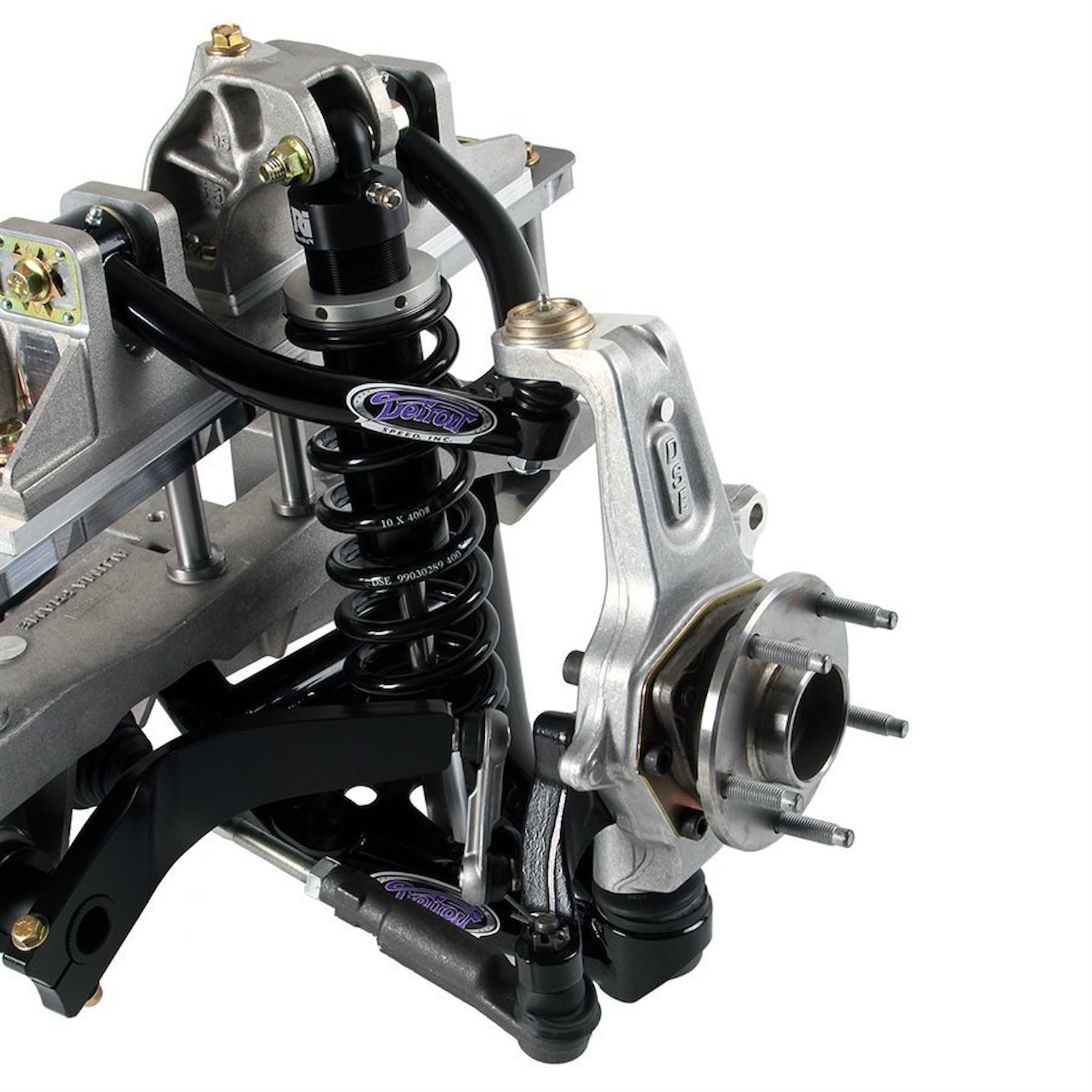

Aluma-Frame Front Suspension System1964.5-1970 Mustang GM 5 on 4-3/4" Bolt Pattern Hubs Double-Adjustable Shocks
Aluma-Frame Subframe Specifications;
- Total Suspension Travel: 6"
- Ride Height: 1.0" ±1.0"
- Static Camber: -0.5° ±.2°
- Static Caster: 8.0° ±.5°
- Static Toe: 0° ±.1°
- Total Bumpsteer (28" toe span): .070"
- Turning Angle: 27°
- Ackerman Angle (@ 15° turning angle): .875°
Fitment Notes:
At least 17" wheels that require a minimum inside wheel diameter of 16.250" must be used with this kit.
The Aluma-Frame will need to be modified to clear the alternator on the Coyote engine application. A remote mount will be required along with modifying the Aluma-Frame to fit the Coyote engine.
Part TypeSubframe
BrandDETROIT SPEED
Package Width350.0
Weight350.0 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part Number032051-DDS
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
