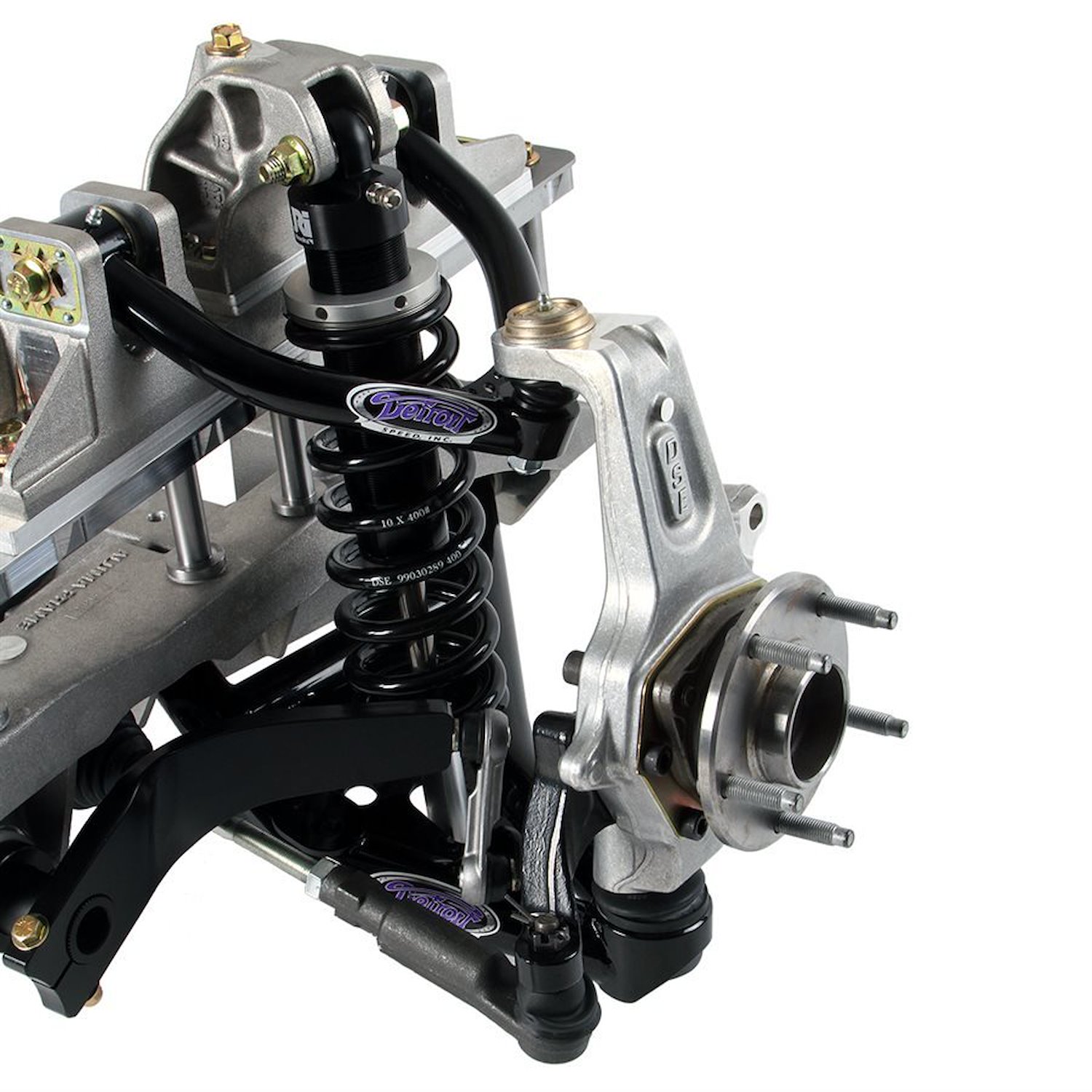

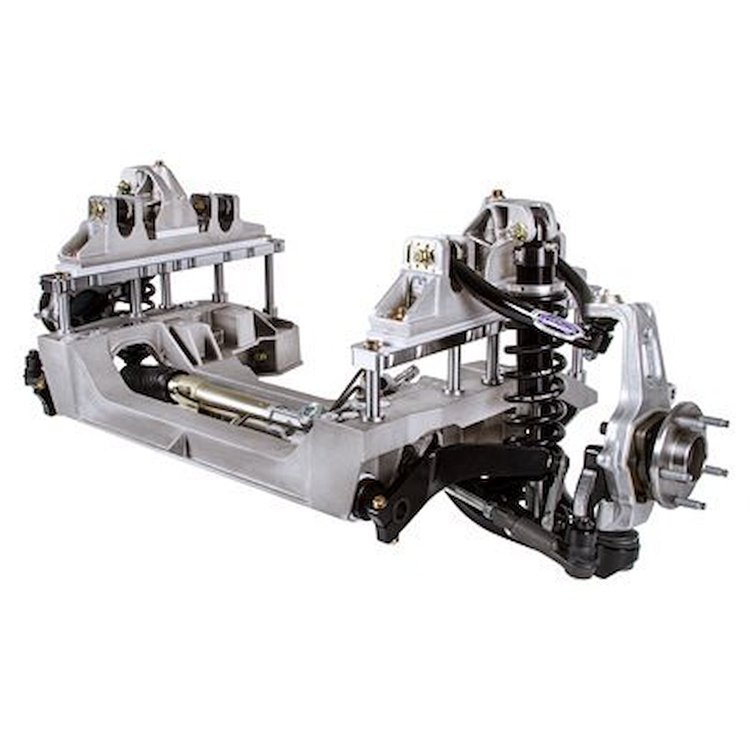

Aluma-Frame Front Suspension System

Name: Aluma-Frame Front Suspension System
Brand: DETROIT SPEED
SKU: 320-032051-S
Price: 10078.95 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Ford Mustang

1964.5-1970 Mustang
GM 5 on 4-3/4" Bolt Pattern Hubs
Single-Adjustable Shocks

Aluma-Frame Subframe Specifications;
Total Suspension Travel: 6"
Ride Height: 1.0" ±1.0"
Static Camber: -0.5° ±.2°
Static Caster: 8.0° ±.5°
Static Toe: 0° ±.1°
Total Bumpsteer (28" toe span): .070"
Turning Angle: 27°
Ackerman Angle (@ 15° turning angle): .875°
Fitment Notes:
At least 17" wheels that require a minimum inside wheel diameter of 16.250" must be used with this kit.
The Aluma-Frame will need to be modified to clear the alternator on the Coyote engine application. A remote mount will be required along with modifying the Aluma-Frame to fit the Coyote engine.

Part TypeSubframe

BrandDETROIT SPEED

Package Width350.0

Weight350.0 PG

Part CategoryPerformance Parts

Part FitmentSemi Universal

Vendor Part Number032051-SDS

Package Qty1

Package TypeEA
