Made in USA
QUADRALink Rear Suspension Kit 1973-87 GM C10/C15, Double-Adjustable Shocks, Weld-in Brackets [Ride Height: 5-7.500 in. Lowered]
InfoVehicle Info Needed
DETROIT SPEEDPART NUMBER: 320-041751-RDS

QUADRALink Rear Suspension Kit 1973-87 GM C10/C15, Double-Adjustable Shocks, Weld-in Brackets [Ride Height: 5-7.500 in. Lowered]

$6,88695
Truck Freight
ShippingShips on 09/16/2026
Lowest PriceLowest Price Guarantee

GM Pickup Truck
QUADRALink Rear Suspension Kit
  • 1973-1987 GM C10/C15
  • Ride Height: 5-7.500 in. Lowered
  • Coil-Over Springs with Double-Adjustable Shocks
  • Adjustable Swivel-Links
  • Horizontal Track Bar
  • Weld-in Brackets
  • Black Powder-Coated Finish

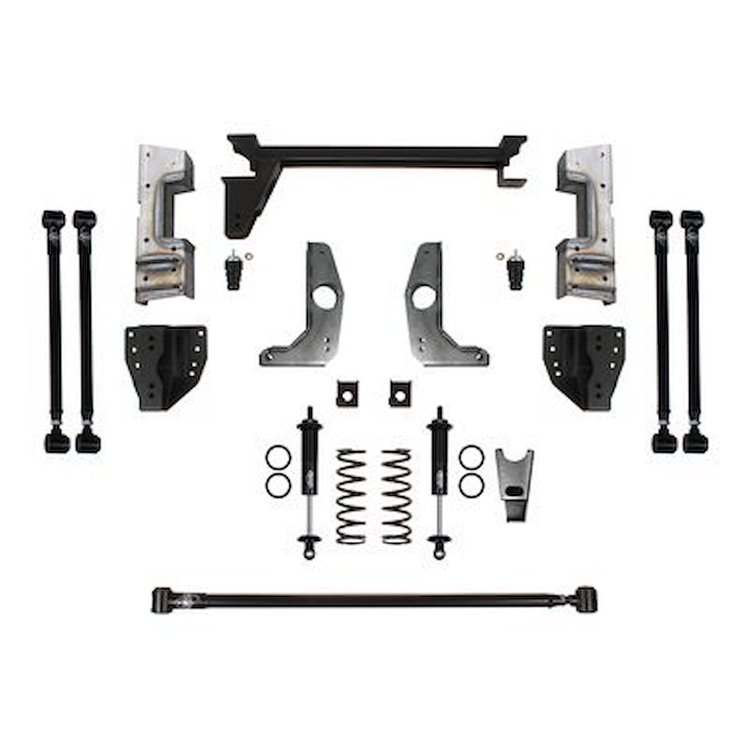

    Breakdown of Included Items for Detroit Speed 041751-RDS

    Features:

    • Ideal for daily driving and light-duty hauling
    • The axle brackets are compatible with the original axle, wiring, and brake lines
    • The Swivel-Links allow pinion angle and/or wheelbase to be adjusted without completely unbolting the link
    • The double-adjustable shocks have remote canisters with a gas-charged bladder to provide high-frequency and low-speed dampening control
    • Upper shock mounts are adjustable by 1 in. (up or down) allowing ride height changes without affecting shock travel

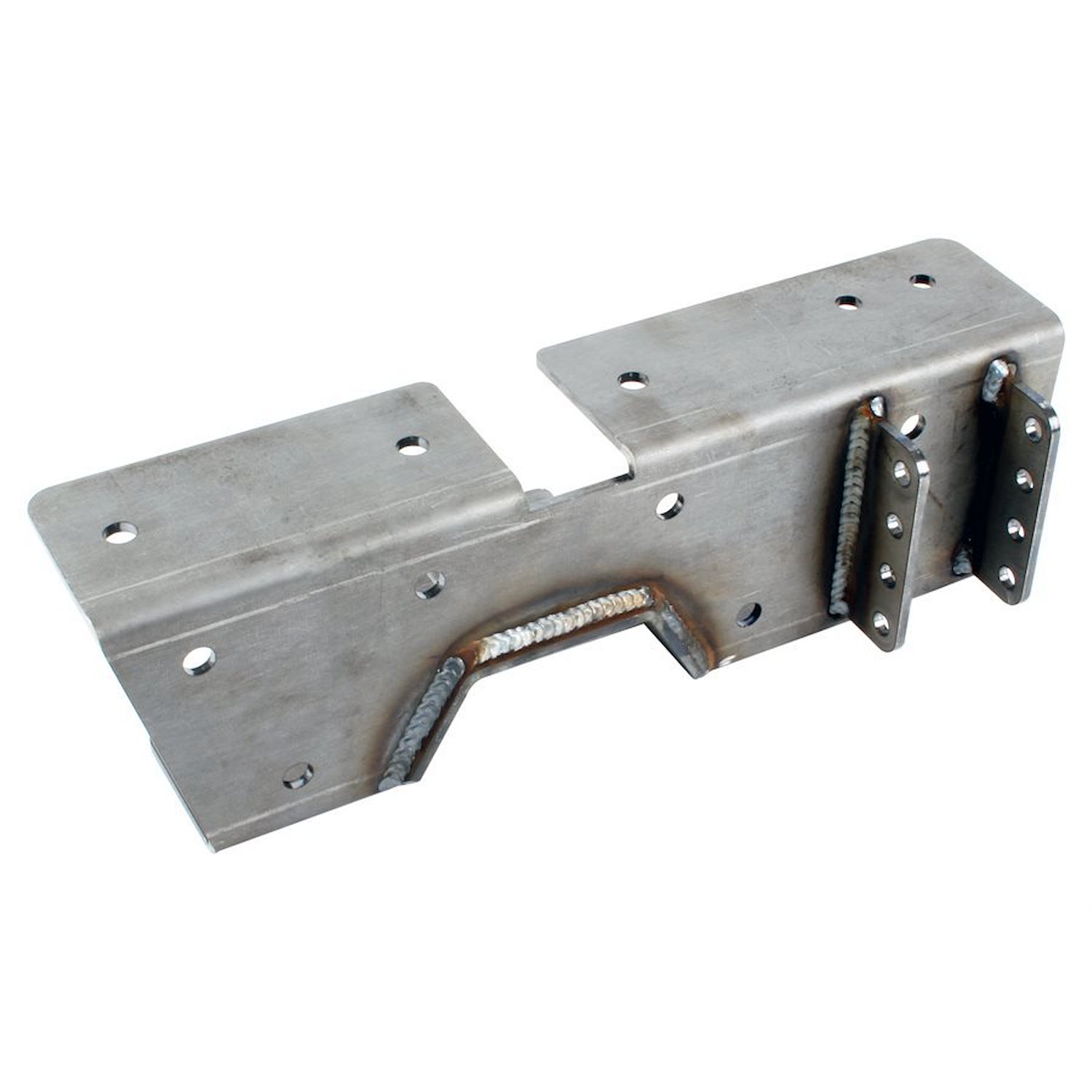

    • C-Notch plates gain additional axle clearance at lower ride heights
    • Tuned high-durometer rubber bushings provide smooth, silent-motion articulation
    • The horizontal trackbar delivers effective rear axle lateral location during hard cornering and is adjustable to correct roll center control at different ride heights
    • High-strength steel crossmembers add rigidity to the rear body and frame section
    • Weld-on installation delivers a permanent and stronger 4-link system
    • Bring Modern-Day Rear Suspension to Your Classic Hot Rod

      Detroit Speed QuadraLink Rear Suspension Kits are a great way to upgrade from an original leaf spring suspension configuration. Unlike competitors, DSE’s exclusive 4-link geometry design is uncompromised to achieve the best possible handling. A QUADRALink rear suspension provides a performance increase in an easy all-in-one package. They feature high-durometer rubber bushings for smooth articulating, greater pinion, and u-joint angle control and utilize a Panhard rod that provides precise and effective rear axle lateral location.

    Part TypeSuspension Kit
    Product LineDetroit Speed QuadraLink Rear Suspension Kits
    BrandDETROIT SPEED
    Package Height3.0
    Package Width4.8
    Package Length4.8
    Weight163.0 PG
    Part CategoryPerformance Parts
    Panhard Bar IncludedYes
    Hardware IncludedYes
    PositionRear
    Bushing MaterialRubber
    Frame Brackets IncludedYes
    QuantitySold as a kit
    Mounting Hardware IncludedYes
    Links IncludedYes
    Trailing Arm Mount Braces IncludedYes
    Rear Shocks/Struts IncludedYes
    Lower Trailing Arms IncludedYes
    Rear Coil Springs IncludedYes
    Ride Height5-7.500 in. Lowered
    Upper Trailing Arms IncludedYes
    Rear Sway Bar IncludedNo
    Bracket FinishBlack powdercoated
    Rear Shock TypeDouble adjustable
    Bushings IncludedYes
    Bracket MaterialSteel
    Vendor Part Number041751-RDS
    Package Qty1
    Package TypeEA
