DETROIT SPEEDPART NUMBER: 320-041751DS

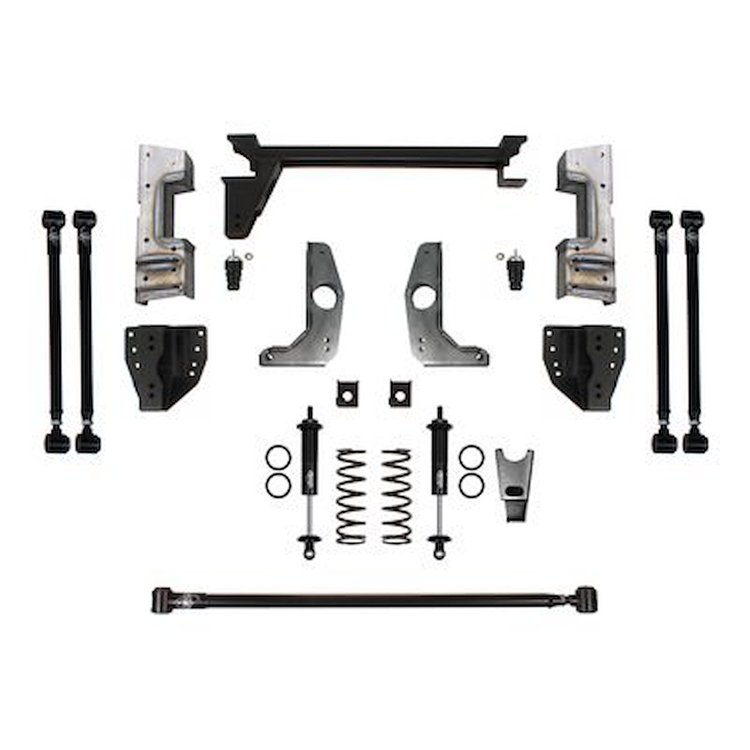

QUADRALink Rear Suspension Kit 1973-1987 GM C10/C15, Non-Adjustable Shocks, Weld-in Brackets [Ride Height: 5-7.500 in. Lowered]
$3,84395
Truck Freight
GM Pickup Truck
QUADRALink Rear Suspension Kit1973-1987 GM C10/C15 Ride Height: 5-7.500 in. Lowered Coil-Over Springs with Non-Adjustable Shocks Adjustable Swivel-Links Horizontal Track Bar Weld-in Brackets Black Powder-Coated Finish
Breakdown of Included Items for Detroit Speed 041751DS
Features:
- Ideal for daily driving and light-duty hauling
- The axle brackets are compatible with the original axle, wiring, and brake lines
- The Swivel-Links allow pinion angle and/or wheelbase to be adjusted without completely unbolting the link
- Upper shock mounts are adjustable by 1 in. (up or down) allowing ride height changes without affecting shock travel
- C-Notch plates gain additional axle clearance at lower ride heights
- Tuned high-durometer rubber bushings provide smooth, silent-motion articulation
- The horizontal trackbar delivers effective rear axle lateral location during hard cornering and is adjustable to correct roll center control at different ride heights
- High-strength steel crossmembers add rigidity to the rear body and frame section
- Weld-on installation delivers a permanent and stronger 4-link system
Part TypeSuspension Kit
BrandDETROIT SPEED
Package Height30.0
Package Width48.0
Package Length48.0
Weight190.0 PG
Part CategoryPerformance Parts
Panhard Bar IncludedYes
Hardware IncludedYes
PositionRear
Bushing MaterialRubber
Frame Brackets IncludedYes
QuantitySold as a kit
Mounting Hardware IncludedYes
Links IncludedYes
Trailing Arm Mount Braces IncludedYes
Rear Shocks/Struts IncludedYes
Lower Trailing Arms IncludedYes
Rear Coil Springs IncludedYes
Ride Height5-7.500 in. Lowered
Upper Trailing Arms IncludedYes
Rear Sway Bar IncludedNo
Bracket FinishBlack powdercoated
Rear Shock TypeNon-adjustable
Bushings IncludedYes
Bracket MaterialSteel
Vendor Part Number041751DS
Package Qty1
Package TypeEA
