GM Pickup Truck

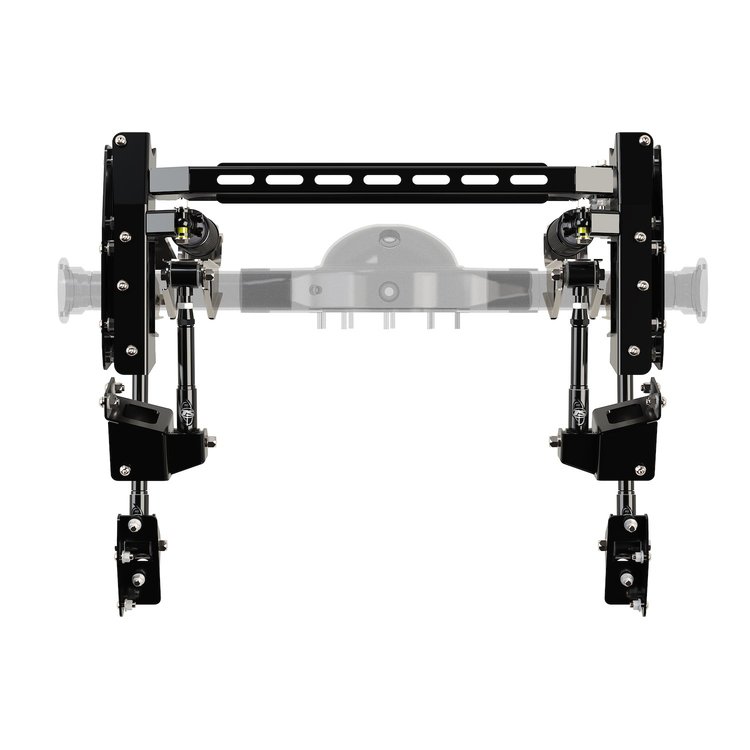

QuadraLink Rear Suspension Kit with Axle Brackets
  • for 1982-2004 Chevrolet S10/GMC Sonoma 2WD
  • With Axle Brackets

    Detroit Speed's S10 QuadraLink Rear Suspension Kit replaces leaf springs with a tuned, bolt-in 4-link that delivers sharper handling, improved traction, and a refined stance. Optimized geometry with a built-in frame notch and crossmember supports 5 in.-6 in. lowered ride heights, while coil-over damping provides consistent control. Installation is straightforward: factory-location brackets, no frame fabrication, and only minor cutting and drilling.

    041758DS QuadraLink Rear Suspension Kit with Axle Brackets Features:

    • Parallel 4-link geometry with adjustable anti-squat and roll center
    • Bolt-in installation with minor cutting and drilling
    • Built-in frame notch and crossmember for 5 in.-6 in. lowered ride height
    • Coil-over shocks with 18 clicks of rebound/compression adjustment
    • Patented Swivel Link for superior NVH
    • Eliminates wheel hop, improves traction, and reduces axle wrap
    • Compatible with Detroit Speed Ford 9 in. rear housings

    041758DS QuadraLink Rear Suspension Kit with Axle Brackets Notes:

    • Best results when paired with a Detroit Speed front suspension kit
    • Not compatible with the factory fuel tank - designed to work with Detroit Speed fuel tank (Part #: 080193DS)
    • Bring Modern-Day Rear Suspension to Your Classic Hot Rod

      Detroit Speed QuadraLink Rear Suspension Kits are a great way to upgrade from an original leaf spring suspension configuration. Unlike competitors, DSE’s exclusive 4-link geometry design is uncompromised to achieve the best possible handling. A QUADRALink rear suspension provides a performance increase in an easy all-in-one package. They feature high-durometer rubber bushings for smooth articulating, greater pinion, and u-joint angle control and utilize a Panhard rod that provides precise and effective rear axle lateral location.

    Part TypeSuspension Kit
    Product LineDetroit Speed QuadraLink Rear Suspension Kits
    BrandDETROIT SPEED
    Package Height7.0
    Package Width17.0
    Package Length61.0
    Weight133.9 PG
    Part CategoryReplacement Parts
    Panhard Bar IncludedYes
    PositionRear
    Frame Brackets IncludedYes
    Ride Height5-6 in. lowered
    QuantitySold as a kit
    Links IncludedYes
    Part FitmentDirect Fit
    Rear Shocks/Struts IncludedYes
    Rear Shock TypeDouble-adjustable
    Vendor Part Number041758DS
    Package Qty1
    Package TypeEA
