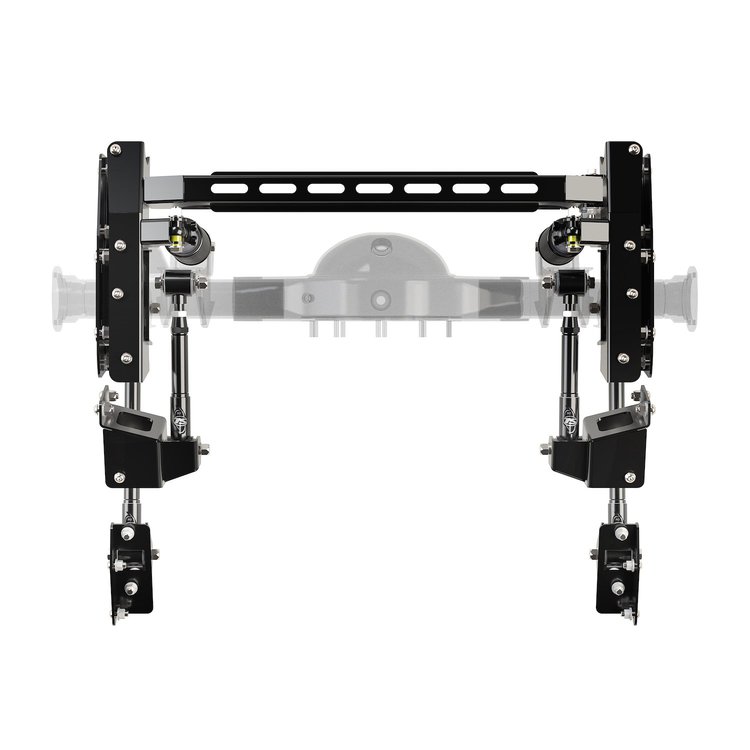

041759DS QuadraLink Rear Suspension Kit without Axle Brackets for 1982-2004 Chevrolet S10/GMC Sonoma 2WD
InfoVehicle Info Needed
DETROIT SPEEDPART NUMBER: 320-041759DS

041759DS QuadraLink Rear Suspension Kit without Axle Brackets for 1982-2004 Chevrolet S10/GMC Sonoma 2WD

$3,35796
ShippingShips on 11/25/2026
Lowest PriceLowest Price Guarantee

Items You Need

080193DS Fuel Tank for 1982-2004 Chevrolet S10/GMC Sonoma 2WD

DETROIT SPEED

080193DS Fuel Tank for 1982-2004 Chevrolet S10/GMC Sonoma 2WD

Part Number : 320-080193DS
$1,37496
4 1/2 in. Compact Angle Grinder

OEMTOOLS

4 1/2 in. Compact Angle Grinder

Part Number : 693-24663
$7695
51900 Spot Weld Chisel

LISLE TOOLS

51900 Spot Weld Chisel

Part Number : 616-51900
$1799
68670 2 Piece Spot Weld Cutter Set

SPC

68670 2 Piece Spot Weld Cutter Set

Part Number : 827-68670
$2999

GM Pickup Truck
QuadraLink Rear Suspension Kit without Axle Brackets
  • for 1982-2004 Chevrolet S10/GMC Sonoma 2WD
  • With Axle Brackets
  • Without Axle Brackets

    This QuadraLink system replaces leaf springs with a tuned, bolt-in 4-link for sharper handling, consistent ride quality, and improved traction. It is optimized for 5 in.-6 in. lowered ride heights and includes a built-in frame notch and crossmember for added travel and rigidity. Installation uses factory-location brackets with minor cutting and drilling.

    041759DS QuadraLink Rear Suspension Kit without Axle Brackets Features:

    • Parallel 4-link geometry with adjustable anti-squat and roll center
    • Coil-over shocks with 18 clicks of rebound/compression adjustment
    • Patented Swivel Link for superior NVH
    • Built-in frame notch and crossmember for 5 in.-6 in. lowered ride height
    • Eliminates wheel hop, improves traction, and reduces axle wrap
    • Compatible with Detroit Speed Ford 9 in. rear housings
    • Bolt-in installation with minor cutting and drilling

    041759DS QuadraLink Rear Suspension Kit without Axle Brackets Notes:

    • This version does not include axle brackets - ideal with a DSE housing or custom setup
    • Best results when paired with a Detroit Speed front suspension kit
    • Not compatible with the factory fuel tank - designed to work with Detroit Speed fuel tank (Part #: 080193DS)
    • Bring Modern-Day Rear Suspension to Your Classic Hot Rod

      Detroit Speed QuadraLink Rear Suspension Kits are a great way to upgrade from an original leaf spring suspension configuration. Unlike competitors, DSE’s exclusive 4-link geometry design is uncompromised to achieve the best possible handling. A QUADRALink rear suspension provides a performance increase in an easy all-in-one package. They feature high-durometer rubber bushings for smooth articulating, greater pinion, and u-joint angle control and utilize a Panhard rod that provides precise and effective rear axle lateral location.

    Part TypeSuspension Kit
    Product LineDetroit Speed QuadraLink Rear Suspension Kits
    BrandDETROIT SPEED
    Package Height7.0
    Package Width17.0
    Package Length61.0
    Weight114.9 PG
    Part CategoryReplacement Parts
    Panhard Bar IncludedYes
    PositionRear
    Frame Brackets IncludedYes
    Ride Height5-6 in. lowered
    QuantitySold as a kit
    Links IncludedYes
    Part FitmentDirect Fit
    Rear Shocks/Struts IncludedYes
    Rear Shock TypeDouble-adjustable
    Vendor Part Number041759DS
    Package Qty1
    Package TypeEA
