Vehicle Info NeededDETROIT SPEEDPART NUMBER: 320-090220

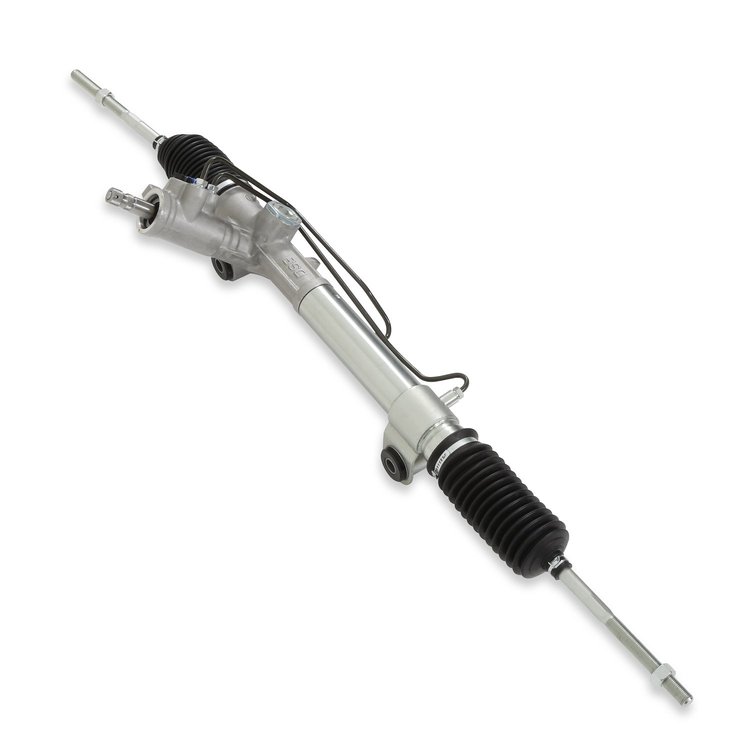

Detroit Tuned Steering Rack
$83195
Ships on 09/09/2026
Lowest Price GuaranteeSteering Racks
- Detroit Tuned Steering Rack
- 21.5" Narrow Version
- Includes Polyurethane Mounting Bushings
- Internal Inner Tie Rod Boot Balance Tube
Specifications: - Inner Tie Rod Ball-to-Ball Width: 21.5"
- Overall Width: 42"
- Linear Rack Travel: 4.5"
- Number of Rotations Lock-to-Lock: 2.5
- Mounting Bolt Span: 13.5"
- Mounting Bolt Size: 9/16"
- Outer Tie Rod Thread Length: 6"
- Outer Tie Rod Thread Size: 9/16"-18
- Input Shaft: 3/4"-36
- Recommended Pump Flow Rate: 3 Gallons/Minute
- Max Peak Pressure: 1800 psi
- High Pressure Fitting Thread: 9/16"-18
- Low Pressure Fitting Thread: 5/8"-18
- ‘Detroit Tuned’ valving specifically to provide the increased effort and performance feel found in late model performance vehicles
- All new, non-remanufactured components
- Every rack undergoes a rigorous quality check and is performance tested prior to being packaged
- Includes polyurethane mounting bushings
- Internal, inner tie rod boot balance tube
The Detroit Tuned Steering Rack by Detroit Speed has been optimized to provide an exceptional modern performance feel in a classic car whether on the street or the track. Available in both standard (24.5") and narrow (21.5") widths. This is one of the only racks with a 21.5” width available in the aftermarket industry.
Features:Part TypeRack and Pinion Complete Unit
Product LineDetroit Speed Detroit Tuned Steering Rack
BrandDETROIT SPEED
Package Height7.0
Package Width11.5
Package Length49.0
Weight15.0 PG
Part CategoryPerformance Parts
Vendor Part Number090220DS
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
