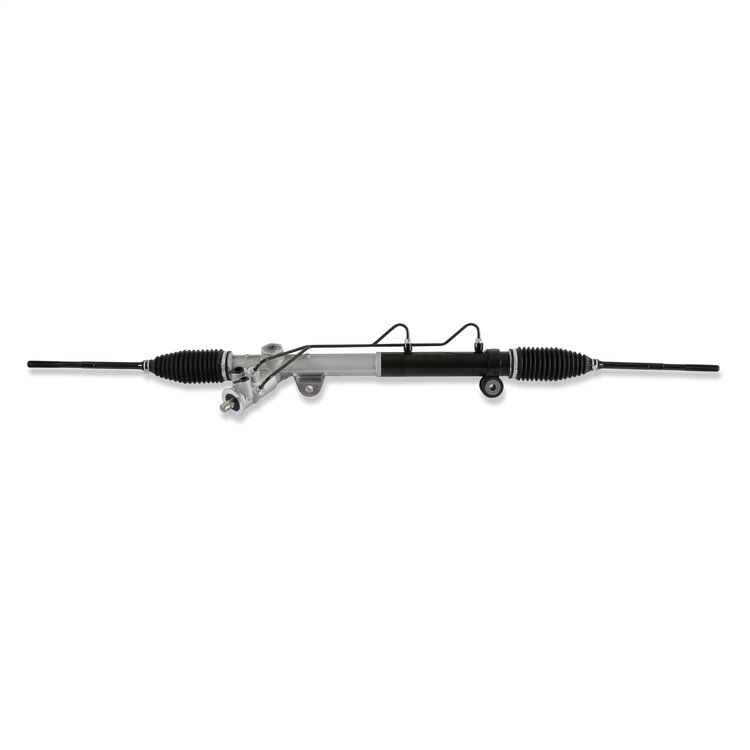

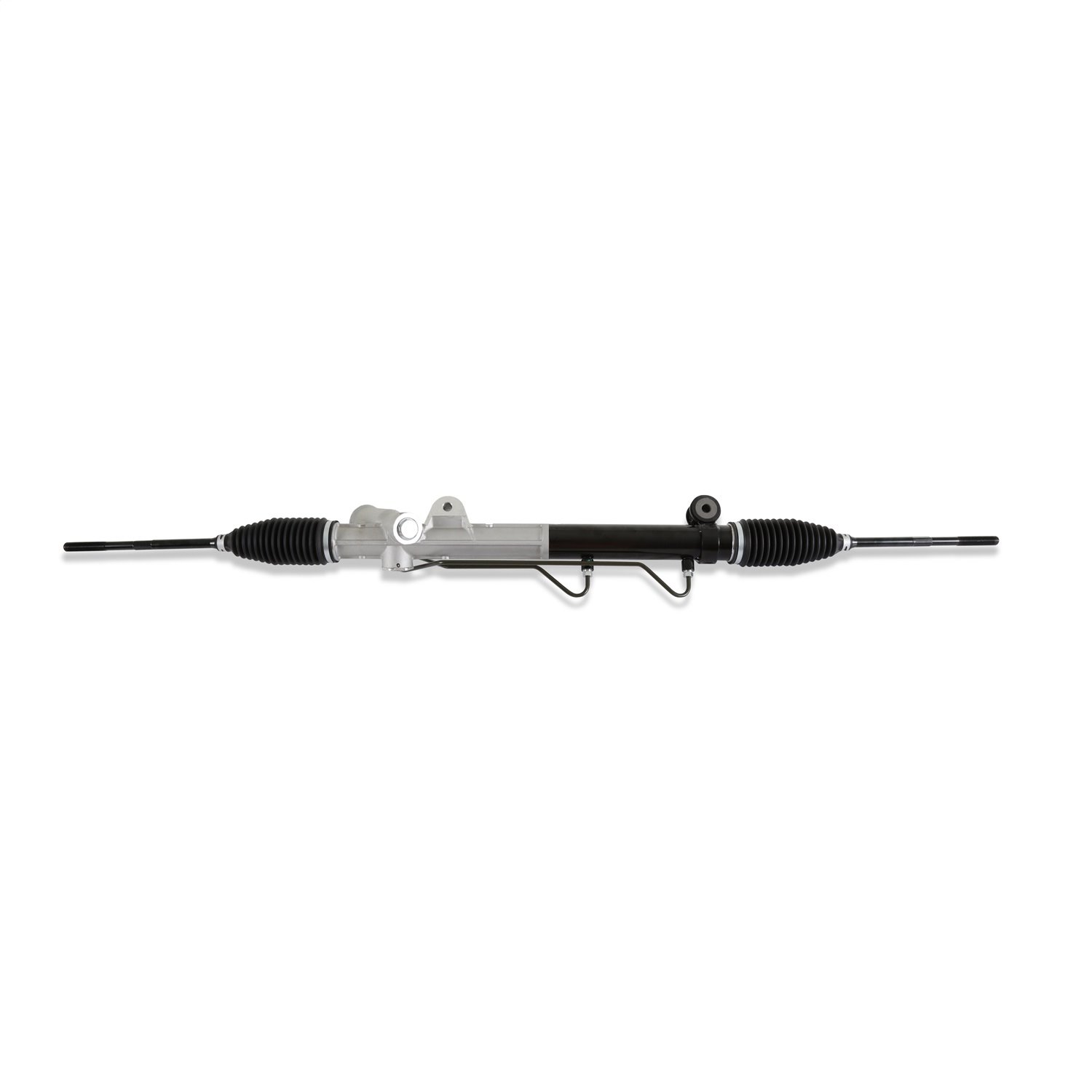

090224DS Speed Fast Ratio Detroit Tuned Power Rack and Pinion for 1998-2002 Chevrolet Camaro/Pontiac Firebird

Name: 090224DS Speed Fast Ratio Detroit Tuned Power Rack and Pinion for 1998-2002 Chevrolet Camaro/Pontiac Firebird
Brand: DETROIT SPEED
SKU: 320-090224DS
Price: 571.95 USD
Availability: InStock

^$571⁹⁵

3 left in stock

Ships Today

Lowest Price Guarantee

Steering Racks

Speed Fast Ratio Detroit Tuned Power Rack and Pinion

1998-2002 Chevy Camaro/Pontiac Firebird

With FE2, FE4, and FE7 Suspension Packages

Detroit Speed 090224DS Features:

This factory-style fast ratio power steering rack & pinion fits 1998-2002 Camaro / Firebird (with FE2, FE4, and FE7 suspension packages). "Detroit Tuned" valving for an exceptional modern performance feel for street or racing applications. Quick ratio with 2-1/4 turns lock-to-lock. This rack is built with all new components and undergoes a rigorous quality check and performance testing before shipment. Easy bolt-in installation on 1998-2002 Camaro/Firebird. Steering rack can be retrofit in 1993-1999 vehicles that came from the factory with an LT1 (gen III small block Chevy) or V6 engines - for upgrade over stock factory OEM 2.63 turns lock-to-lock steering ratio (must be used with factory LS1 steering shaft).

Detroit Speed Steering Rack Specifications:
Inner Tie Rod Ball to Ball Width 728mm (28.7")
Overall Width 1338mm (52.7")
Linear Rack Travel 120mm (4.7")
Number of Turns Lock to Lock 2-1/4
Mounting Bolt Span 350.5mm (13.8")
Mounting Bolt Size 12mm
Outer Tie Rod Thread Length 62mm (2.4")
Outer Tie Rod Thread Size M14-1.5
Input Shaft OEM Asymmetrical 15mm DD
Recommended Pump Flow Rate 1.85 gal/min
Maximum Peak System Pressure 1232 psi
High-Pressure Fitting Thread M18-1.5
Low-Pressure Fitting Thread M16-1.5
Factory style fast ratio power steering rack & pinion - fits 1998-2002 Chevrolet Camaro and Pontiac Firebird
"New" power steering rack - built with all new components
Easy direct-fit bolt-in installation for 1998-2002 with FE2, FE4, and FE7 suspension packages
Can be retrofit into 1993-1997 LT1 (gen II small block Chevy) and 1993-1999 V6 applications with the use of factory LS1 steering shaft (upgrade from standard OEM steering ratio 2.63 turns lock-to-lock)
Every rack undergoes a rigorous quality check and is performance tested before being packaged
The pinion tower is angled to fits LS-powered vehicles
Use with factory power steering hoses or Detroit Speed PN # 090206SDS and 090206LDS adapter fittings and -6 AN power steering hoses
