Vehicle Info NeededDEWITTSPART NUMBER: 115-6139025M

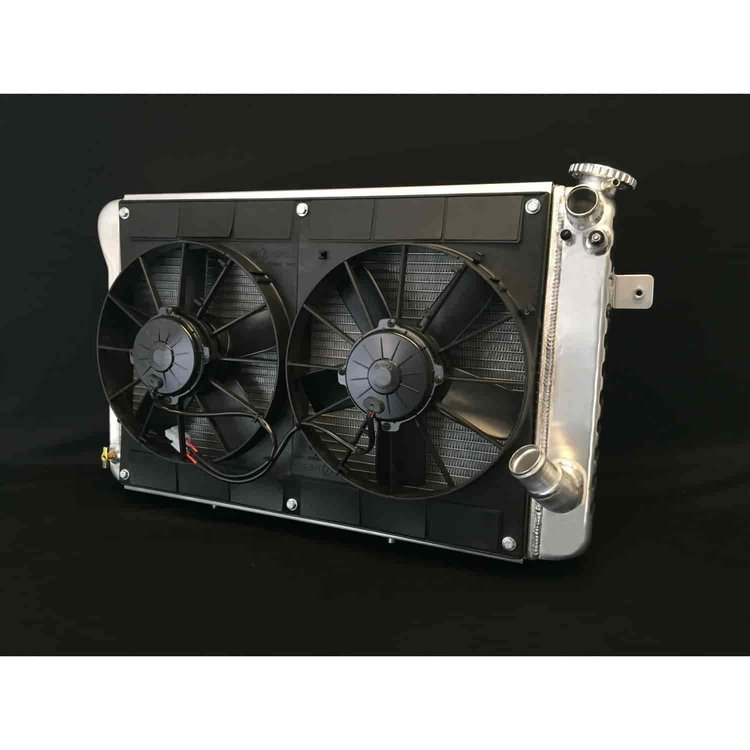

LSX Swap Direct Fit Aluminum Radiator 1966-1967 Corvette
$1,55299
Ships on Oct 19, 2026
Lowest Price GuaranteeCurrently Unavailable
This product is currently not available. Please call customer service for assistance at 1-800-345-4545.
Direct Fit Aluminum RadiatorsLSX Swap
- LSX Swap Direct Fit Aluminum Radiator
- 1966-1967 Corvette
- Natural Finish
- Dual 11" Electric Fans
- Manual Transmission
This radiator is a Direct Fit for all 1966-67 Corvettes with mamual transmission and LS Motors. Inlet and outlet are on the passenger side. This radiator is designed to fit the original small block core support. This model is oversized compaired to the original, but still fits. It has the pin mounts on the bottom and two small tabs on the front side that eliminates the need for the bracket on the top of the radiator. The stock size radiator fits in the opening of the core support, we designed this radiator so the core of the radiator fills the opening of the core support and the tanks hang off each side. It is almost the same size as the factory BB copper radiator. This radiator features press formed end tanks, dual row core, and serpentine fins. Features Dual 11" Spal fans with 2780 CFM, your best choice for cars with A/C. We put a filler neck on the top of the radiator, passenger side, that eliminates the need for the factory Harrison overflow tank. Radiator comes with 2 rows of 1" tubes, Dual fans, Billet DeWitt's Cap, Temp sensor in the radiator, stem line, Relays, and wiring.
Superior Cooling and Heat-Transfer
DeWitts Chevrolet Corvette Direct-Fit Aluminum Radiators are designed to install into the stock mounting location and use the factory connections without any modifications or adapters. Each DeWitts Direct-Fit Radiator starts with a USA made core that is furnace brazed and features two-rows of cooling tubes, serpentine fin and they are epoxy free. Press formed end tanks are manually tig welded by expert craftsmen, providing the ultimate in strength and appearance.
Part TypeRadiator
Product LineDeWitts Chevrolet Corvette Direct Fit Aluminum Radiators
BrandDEWITTS
Package Height9.0
Package Width23.0
Package Length35.0
Weight35.0 PG
Part CategoryPerformance Parts
Vendor Part Number32-6139025M
Package Qty1
Package TypeEA
