LSX Swap Direct Fit Aluminum Radiator 1963-1972 Corvette Small Block

Name: LSX Swap Direct Fit Aluminum Radiator 1963-1972 Corvette Small Block
Brand: DEWITTS
SKU: 115-6139063A
Price: 1468.99 USD
Availability: InStock

^$1,468⁹⁹

Ships on 10/12/2026

Lowest Price Guarantee

Direct Fit Aluminum Radiators

LSX Swap

1963-1972 Corvette Small Block
Natural Finish
Single 16" Electric Fan
Automatic Transmission

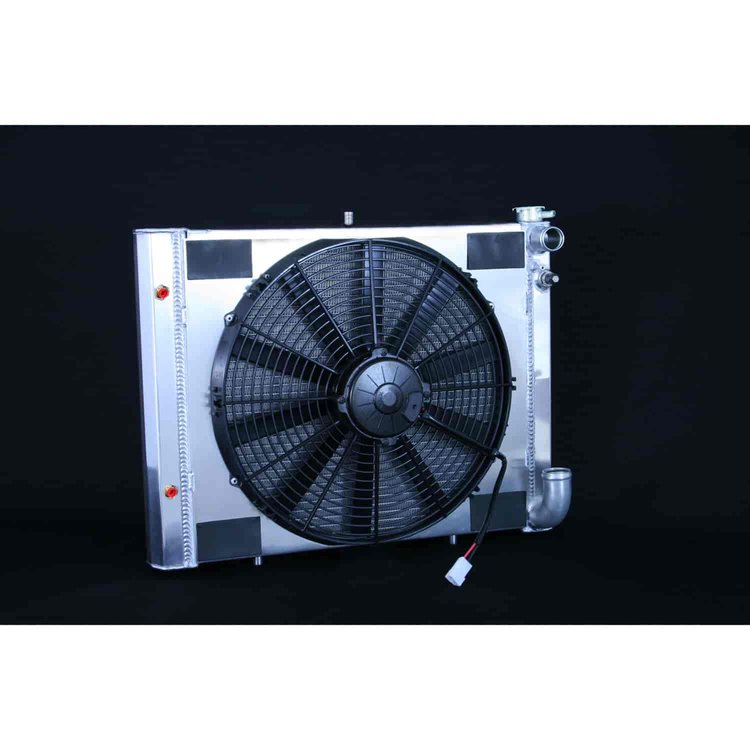

This radiator is a Direct Fit for all 1963-72 Corvette with LS engines with Automatic transmission. This radiator is made to fit the original SB core support. The radiator with pin mounts on the bottom and loop on the top middle of radiator. Inlet and outlet are on the passenger side, filler neck, stem line, and temperature switch on passenger side. This radiator features formed end tanks, dual row core, and serpentine fins. This radiator will provide 40% + cooling over the Stock Copper radiator. Features Single 16" Spal High Performance fan. It is also epoxy free. It will fit into the stock core support. Radiator comes with 2 rows of 1" tubes, Spal fan, Billet DeWitt's Cap, Temp sensor in the radiator, stem line, Relay, and wiring. This model has a filler neck on the radiator, which eliminates the stock Harrison overflow tank.

Part TypeRadiator

BrandDEWITTS

Package Height9.0

Package Width25.0

Package Length37.0

Weight24.0 PG

Part CategoryPerformance Parts

Vendor Part Number32-6139063A

Package Qty1

Package TypeEA

No Questions

No Reviews

Some parts are not legal for use in California or other states with similar laws / regulations
