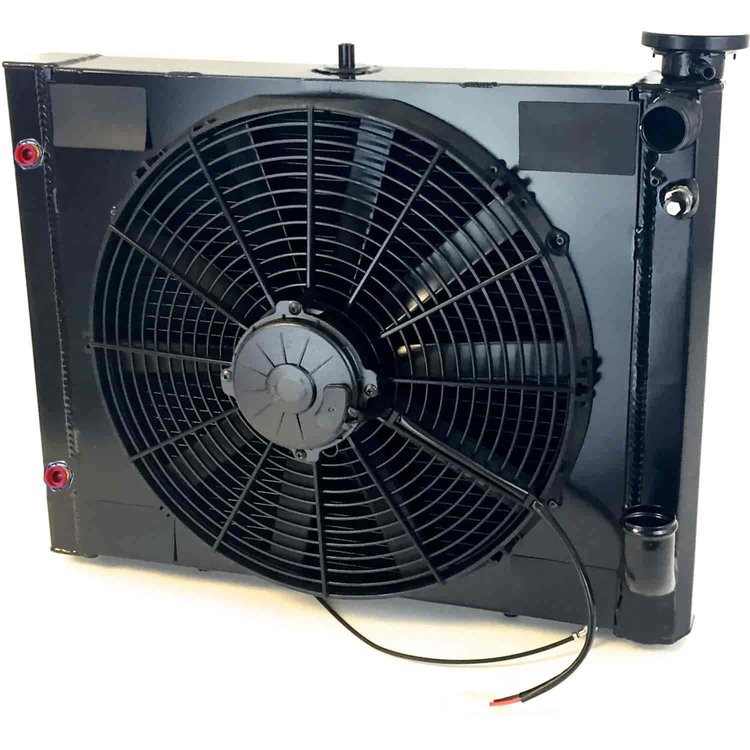

This radiator is a Direct Fit for all 1961-62 Corvette with LS engines with automatic transmission. Inlet and outlet are on the passenger side, filler neck, stem line, and temperature switch on passenger side. This radiator features formed end tanks, dual row core, and serpentine fins. This radiator will provide 40% + cooling over the Stock Copper radiator. Features Single 16" Spal High Performance fan. It is also epoxy free. It will fit into the stock core support. Radiator comes with 2 rows of 1" tubes, Spal fan, Billet DeWitt's Cap, Temp sensor in the radiator, stem line, Relay, and wiring. This model has a filler neck on the radiator, which eliminates the stock Harrison overflow tank.

Automatic transmission cooler on this model, it will be in the driver side end tank. Lines will need to be located to that side of the car. Lines for this cooler are 5/16" inverted flare, like you would find on a typical 60's style GM car. Cooler is made of Copper tube shaped cooler with internal turbulater.

DeWitts "Black Ice" is a product specifically designed to adhire to aluminum without any reduction in heat transfer. This is a special two part epoxy paint that is chemically hardened and it shrinks as it cures to a thickness of .001". Every DeWitts aluminum radiator is available with a Black Ice coat as an option.
