Vehicle Info NeededDORMAN PRODUCTSPART NUMBER: 326-2630301

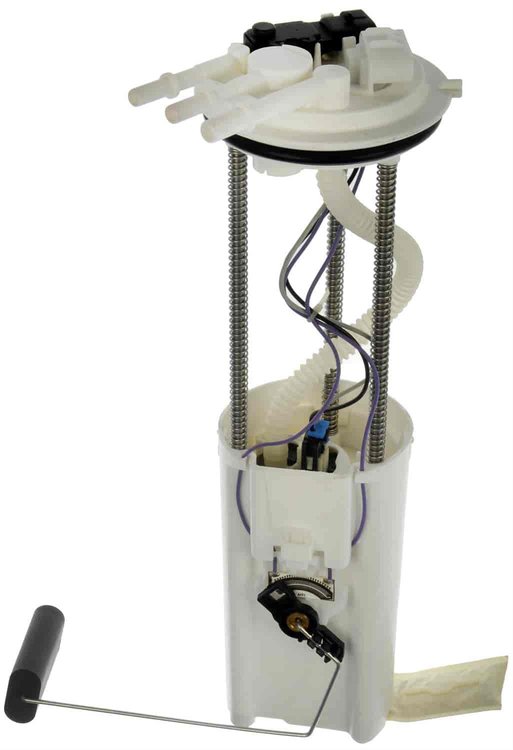

Fuel Pump Module Assembly
$20004
Ships on 09/04/2026
Lowest Price Guarantee- Fuel Pump Module Assembly
This fuel pump module assembly matches the fit and function of the original parts in specific vehicles. Built from durable materials, this pump is designed to be reliable over a long service life.Direct replacement - this fuel pump assembly matches the fit and function of the original equipment fuel pump on specified vehiclesDurable construction - this fuel pump is made of quality materials for a long service lifeSaves money - offers original equipment quality at a competitive priceQuality assured - this fuel pump assembly has undergone rigorous testing to ensure reliable performance
Part TypeFuel Pump Module Assembly
BrandDORMAN PRODUCTS
Package Height357 mm
Package Width4.768 in.
Package Length110 mm
Weight3.56 PG
Average Current Draw8 68
Housing MaterialAcetal
Outlet Quantity1 in.
Inlet TypeFlanged
Strainer IncludedYes
Terminal GenderMale
Connector ColorWhite
Resistance Ohms Empty39 82
Inlet Outside Diameter7.9 mm
Inlet Quantity1 in.
Wire Harness IncludedYes
Outlet Outside Diameter9.5 mm
Universal Or Specific FitSpecific
Resistance Ohms Full250 82
Gasket Or Seal IncludedYes
Outlet Diameter5.8 mm
Terminal TypeBlade Pin
Regulator IncludedNo
Lock Ring IncludedNo
Connector ShapeOval
Pump TypeElectric
Housing Length175 mm
Pump DesignElectric In-tank
Wiring Harness Length400 mm
Top Mount Diameter113 mm
Outlet TypeFlanged
Negative GroundYes
Part CategoryReplacement Parts
Wire Quantity4
Fuel Tank Pressure Sensor IncludedYes
Wire Gauge Measurement22 GU
Maximum Flow Rating97 GPH
Fuel TypeGas
Voltage15 2H
Minimum Free Flow Rate160 GPH
Terminal Quantity4
Fuel Sending Unit IncludedYes
Internal Or External StrainerInternal
In Tank Or ExternalIn Tank
Connector GenderFemale
Mounting Hardware IncludedNo
Housing Width95 mm
Gasket Or Seal MaterialRubber
Minimum Pressure43 PS
Part FitmentDirect Fit
Maximum Pressure80 PS
Grade TypeStandard Replacement
Vendor Part Number2630301
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
