Vehicle Info NeededDORMAN PRODUCTSPART NUMBER: 326-2630315

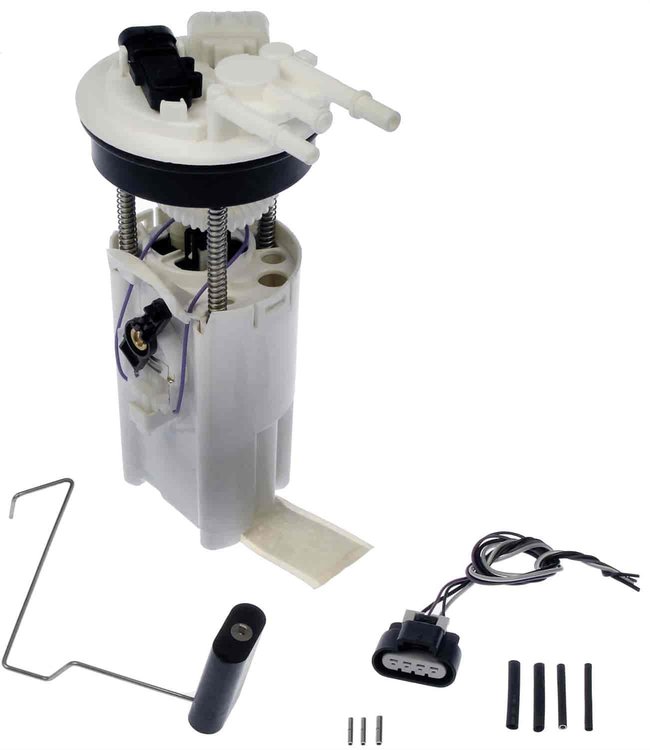

GM Fuel Pump Assy
$19464
Ships on 09/09/2026
Lowest Price Guarantee- GM Fuel Pump Assy
Our Fuel Pumps supplies fuel from the tank to the engine. For added convenience many of our Fuel Pumps include sending units and gaskets for a complete repair.Direct replacementManufactured to strict engineering quality standardsNo special tools requiredConstructed of high quality materials for durability
Part TypeFuel Pump Module Assembly
BrandDORMAN PRODUCTS
Package Height270 mm
Package Width113 mm
Package Length158 mm
Weight3.15 PG
Average Current Draw6.5 68
Housing MaterialPlastic
Outlet Quantity1 in.
Inlet TypeMale
Strainer IncludedYes
Terminal GenderMale
Connector ColorBlack
Resistance Ohms Empty40 82
Inlet Outside Diameter7.9 mm
Inlet Quantity1 in.
Fuel Filter IncludedYes
Wire Harness IncludedYes
Outlet Outside Diameter7.9 mm
Universal Or Specific FitSpecific
Resistance Ohms Full250 82
Gasket Or Seal IncludedYes
Outlet Diameter7.9 mm
Terminal TypeBlade
Regulator IncludedNo
Lock Ring IncludedNo
Connector ShapeOval
Pump TypeElectric
Housing Length240 mm
Pump DesignMain
Wiring Harness Length12 in.
Top Mount Diameter121 mm
Outlet TypeFlanged
Negative GroundYes
Part CategoryReplacement Parts
Wire Quantity4
Fuel Tank Pressure Sensor IncludedYes
Wire Gauge Measurement1.5 in.
Maximum Flow Rating42 gph
Fuel TypeGas
Minimum Flow Rating30 GPH
Voltage12 2H
Minimum Free Flow Rate30 GPH
Terminal Quantity4
Fuel Sending Unit IncludedYes
Internal Or External StrainerExternal
In Tank Or ExternalIn Tank
Connector GenderFemale
Mounting Hardware IncludedYes
Housing Width121 mm
Average Flow Rating120 gph
Gasket Or Seal MaterialRubber
Minimum Pressure43 PS
Part FitmentDirect Fit
Maximum Pressure62 PS
Grade TypeStandard Replacement
Vendor Part Number2630315
Package Qty1
Package TypeEA
