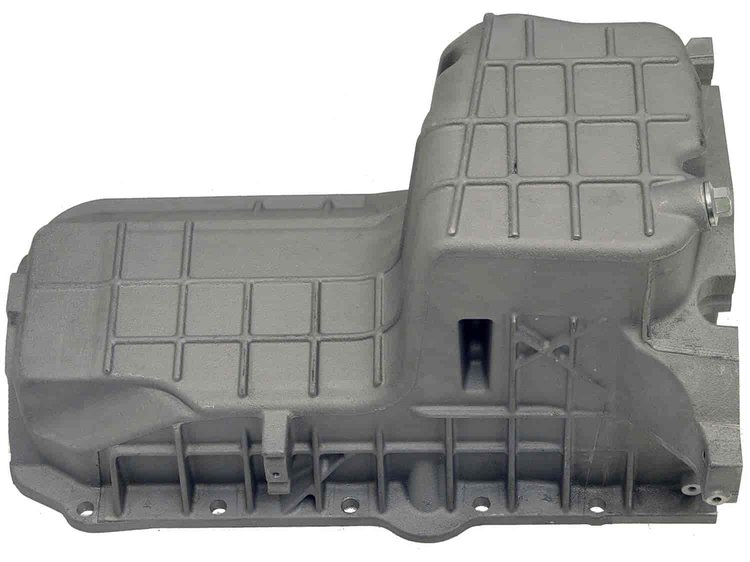

Stock Replacement Oil Pan 1996-05 Chevy/GMC 4WD

Vehicle Info Needed

DORMAN PRODUCTSPART NUMBER: 326-264-109

Stock Replacement Oil Pan 1996-05 Chevy/GMC 4WD

Name: Stock Replacement Oil Pan 1996-05 Chevy/GMC 4WD
Brand: DORMAN PRODUCTS
SKU: 326-264-109
Price: 225.61 USD
Availability: InStock

Color:

^$225⁶¹

Ships on Sep 02, 2026

Lowest Price Guarantee

1996-05 Chevy/GMC 4WD
1998-99 Isuzu 4WD
1996-01 Oldsmobile 4WD
4.3L V6

Specifications:
Baffled
Bolt Holes: 12
Color/Finish: Natural
Crank Shaft Wiper Not Included
Dipstick Port: No
Drain Plug Thread Size: M12 x 1.75
Engine Oil Cooler Return Fitting Not Included
Gasket or Seal Not Included
Installation Hardware Not Included
Kicked Out: No
Length: 17.75"
Oil Pan Capacity: 4 Qts
Oil Pan Depth: 10"
Oil Pan Material: Aluminum
Pick Up Not Included
Includes Plug
Rear Sump
Wet Sump
Width: 10.25"
Windage Tray Not Included

Factory Oil Pans

Dorman Stock Replacement Oil Pans match original specifications for perfect fitment and feature stock capacity, depth, and baffle. These durable performance pans have a high-strength coating, include drain plugs, and allow you to reuse the stock oil pump, pickup, and dipstick.

Part TypeOil Pan

Product LineDorman Stock Replacement Oil Pans

BrandDORMAN PRODUCTS

Package Height14.6

Package Width15.9

Package Length17.75 in.

Weight14.91 PG

Part CategoryReplacement Parts

Dipstick PortNo

BaffledYes

Engine Oil Cooler Return FittingNo

Drain Thread SizeM12x1.75 mm

Pickup IncludedNo

Kick Out Type PanNo

Installation Hardware IncludedNo

Gasket Or Seal IncludedNo

ColorMetallic Gray

MaterialAluminum

Maximum Depth10 in.

Drain Plug IncludedYes

Crank Shaft Wiper IncludedNo

Maximum Width10.25 in.

Sump LocationRear

Windage Tray IncludedNo

Part FitmentDirect Fit

Sump TypeWet

Vendor Part Number264-109

Package Qty1

Package TypeEA
