Vehicle Info NeededDORMAN PRODUCTSPART NUMBER: 326-520-116

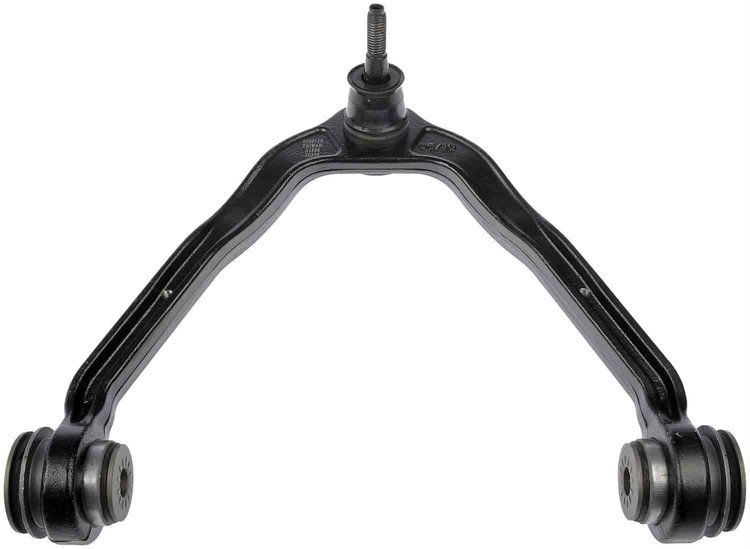

Upper Control Arm 2002-06 Cadillac, 1999-2014 Chevy/GMC - Front
$6012
Ships on Nov 03, 2026
Lowest Price GuaranteeGM
Upper Control Arm2002-06 Cadillac 1999-2014 Chevy/GMC Front
Direct Cross References:
- GM - 12475485
- GM - 15047200
- GM - 15864153
OEM Replacement Control Arm
Dorman Control Arms are designed as direct factory replacements that bolt in place without modification. These control arms deliver the superior quality and performance you would come to expect from Dorman. Replace your worn-out or broken control arms with Dorman's control arms that outperform all others in durability, performance, and service life.
Show More
Part TypeControl Arm
Product LineDorman Control Arms
BrandDORMAN PRODUCTS
Package Height4.7
Package Width12.6
Package Length16.1
Weight8.9 PG
Part CategoryReplacement Parts
Grease Fitting IncludedNo
Ball Joint Stud TypeThreaded
Pre-GreasedYes
Ball Joint IncludedYes
PositionFront Left Upper
Bushing MaterialRubber
Mounting Hole Quantity1 in.
Ball Joint Thread Diameter14 mm
Mounting Hardware IncludedYes
Control Arm TypeCasting/Forged
Control Arm Maximum Width288.5 mm
Control Arm ColorBlack
AdjustableNo
Control Arm MaterialIron
Mounting Hole Diameter12.3 mm
Control Arm Maximum Length237 mm
Bushings IncludedYes
Grade TypeStandard Replacement
Vendor Part Number520-116
Package Qty1
Package TypeEA
