Vehicle Info Needed

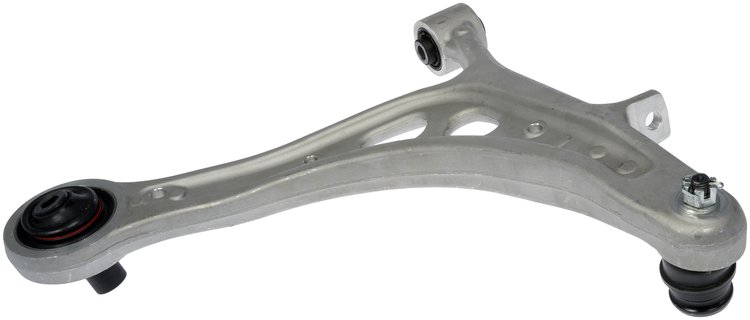

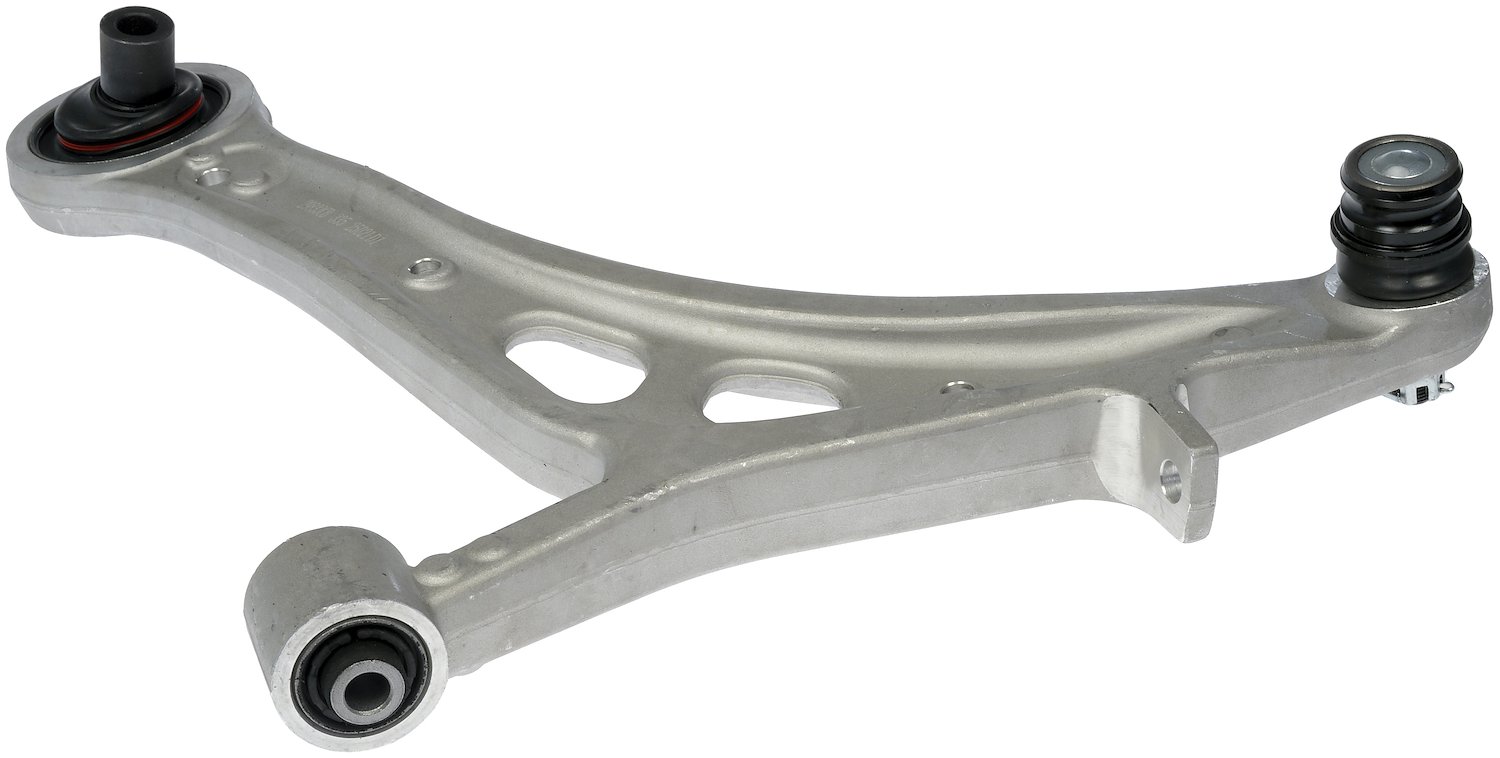

Lowest Price GuaranteePart TypeSuspension Control Arm
BrandDORMAN PRODUCTS
Package Height5.87
Package Width17.75
Package Length361.5 mm
Weight9.63 PG
Part CategoryReplacement Parts
Grease Fitting IncludedNo
Ball Joint Stud TypeThreaded
Bushing Inside Diameter14.5 mm
Ball Joint IncludedYes
Thread Diameter12 mm
Bushing ColorBlack
Ball Joint Mounting TypeScrew In
Mounting Hole Quantity3
Ball Joint Thread Diameter12 mm
Distance Between Bushings362 mm
Length Center Bore To Center Bore362 mm
Dust Boot IncludedYes
Bore Diameter12.5 mm
Control Arm ColorBlack
Control Arm MaterialAluminum
Control Arm ConstructionCasting/Forged
Mounting Hole Diameter12.2 mm
Steering TypePower
Suspension Grade TypeStandard Replacement
End 1 Thread Pitch1.25 mm
Castle Nut IncludedYes
FinishUncoated
End 1 Thread Diameter14 mm
Pre-GreasedYes
Bearing MaterialPolymer
Bushing MaterialRubber
Cotter Pin IncludedYes
Mounting Hardware IncludedYes
Control Arm TypeForged
End 1 Thread Size1.25 mm
Thread Size12 mm
Bushing Length57 mm
Control Arm Maximum Width362 mm
Cone Outside Diameter15.5 mm
AdjustableNo
Ball Joint Stud Length16 mm
Thread DirectionClockwise (Right)
Thread Pitch1.25 mm
GreaseableNo
Control Arm Maximum Length361.5 mm
Boot ColorBlack
Part FitmentDirect Fit
Locking Nut IncludedYes
Bushings IncludedYes
Grade TypeStandard Replacement
ReinforcedNo
Vendor Part Number526-643
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
