Vehicle Info NeededDORMAN PRODUCTSPART NUMBER: 326-600-909

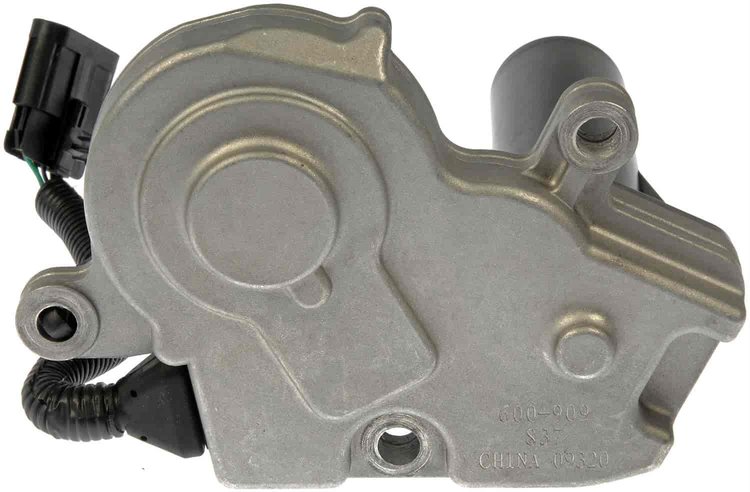

Transfer Case Shift Motor Chevy/GMC
$26253
1 left in stock
Ships Today
Lowest Price GuaranteeTransfer Case Shift Motor
- Transfer Case Shift Motor
- 2003-2009 Chevy/GMC

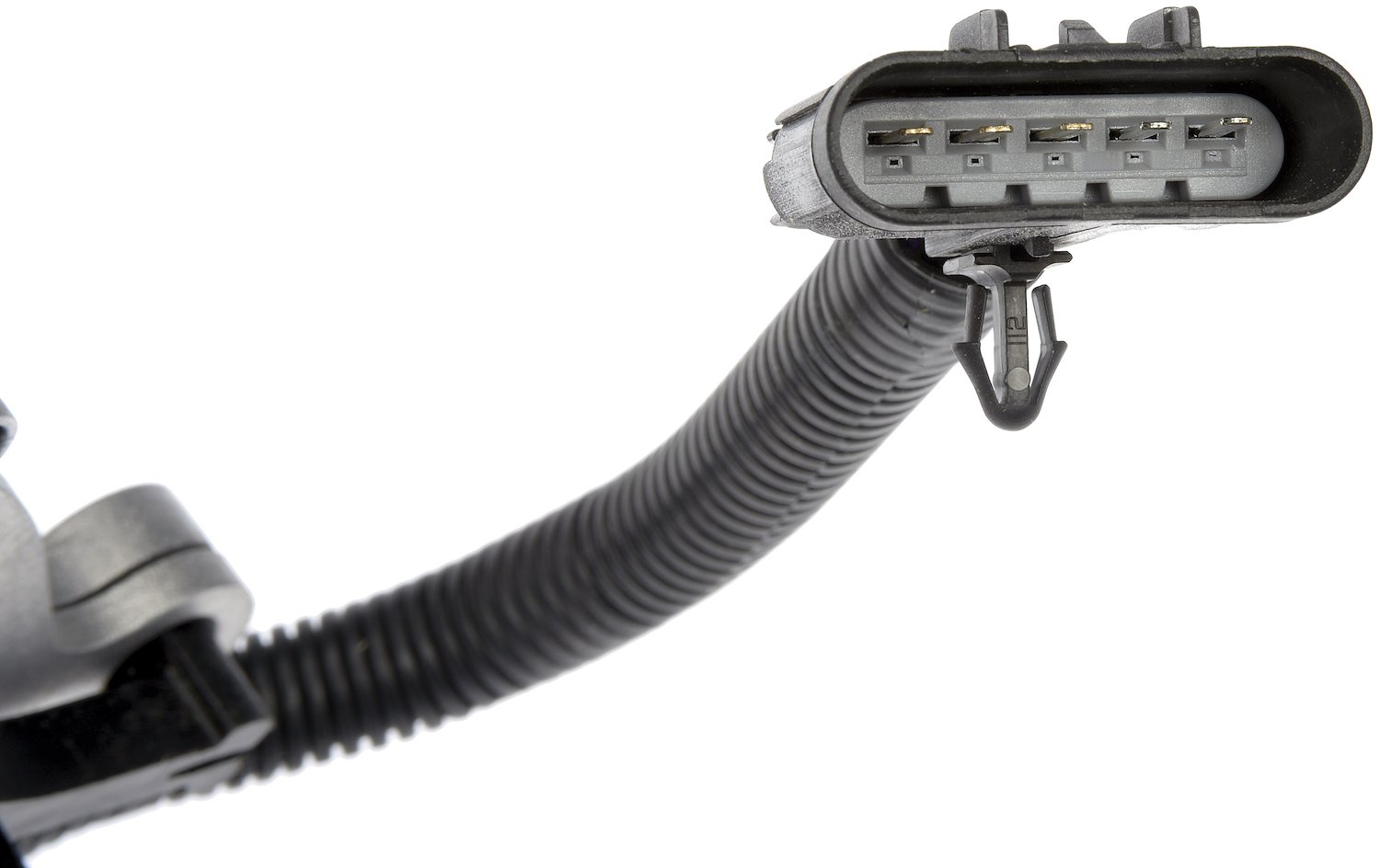

- 5-Pin Terminal
- Includes Wiring Harness
Transfer case stopped shifting between high and low ranges? Swap out a seized transfer case motor with this direct replacement. Designed to install and perform like the original motor, it uses a factory-style connector and is sealed for protection.Direct replacement - this transfer case motor fits and performs like the original motor on certain vehicle applicationsDurable construction - made with factory-style electrical connector and weathertight seal to prevent corrosion100% new - this transfer case motor is entirely new, not remanufactured like competitorsQuality assured - vehicle-specific application has been validation tested to ensure quality
Typically 4WD Switches are located on the transfer case but in some cases may be found on the front axle. There are two types of designs--Vacuum or Electric powered.
4WD Switches typically send a signal to the 4WD actuator which engages the front axle. The Vacuum style fails when the unit's ability to regulate air pressure becomes compromised.
The Electric style fails when the electric signal becomes compromised due to corrosion. Both failures will not allow the front differential to engage, and the 4WD system becomes inoperable.
Part TypeTransfer Case Motor
Product LineDorman 4WD Actuators, Switches & Transfer Case Parts
BrandDORMAN PRODUCTS
Package Height5.7
Package Width7.28
Package Length7.67
Weight4.38 PG
Part CategoryReplacement Parts
Wiring Harness IncludedYes
Housing MaterialMetal
Terminal TypePin
Part FitmentDirect Fit
Vendor Part Number600-909
Package Qty1
Package TypeEA
Some parts are not legal for use in California or other states with similar laws / regulations
