Vehicle Info NeededDORMAN PRODUCTSPART NUMBER: 326-620-219

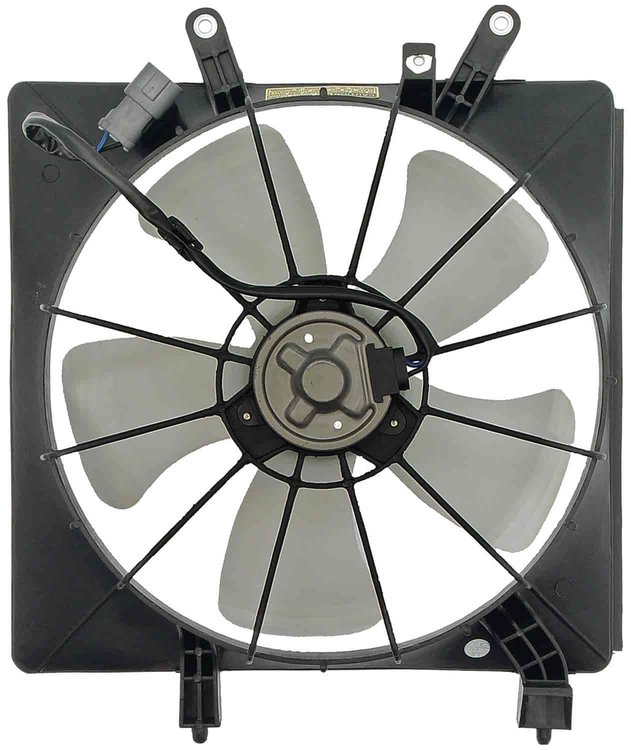

Radiator Fan Assembly
$6112
2 left in stock
Ships Today
Lowest Price Guarantee- Radiator Fan Assembly
This engine cooling fan assembly is precision-engineered to match the fit and performance of the stock radiator fan on specific vehicle years, makes and models. It has been rigorously tested to ensure it cools as effectively as the original part.Ideal replacement - this engine cooling fan assembly was precision-engineered to match the fit and performance of the stock radiator fan assembly on specific vehiclesComplete package - assembly is designed with the same materials and components as the original partQuality assured - motors are tested in laboratory settings to ensure performanceCost effective and reliable - trustworthy manufacturing for far less than same part at the dealership
Part TypeElectric Fan
BrandDORMAN PRODUCTS
Package Height407 mm
Package Width360 mm
Package Length21.37
Weight6.2 PG
Housing FinishBlack
Shroud IncludedYes
Shroud MaterialPlastic
Terminal GenderMale
Connector Quantity1 in.
Blade MaterialPlastic
Fan Quantity1 in.
PositionN/A
Terminal TypeBlade
Electrical Or MechanicalElectrical
Blade ColorWhite
Hub Bolt Hole Quantity1 in.
Blade Quantity5
Wiring Harness Length400 mm
Hardwired Or Plug-InPlug-In
Part CategoryReplacement Parts
Wiring Harness IncludedYes
Blade Length150 mm
Blade Material Thickness2 mm
Hub Depth112 mm
Depth132 mm
Flat Side On ShaftNo
Fan 1 Diameter300 mm
Shaft Length12 mm
Mounting Bracket IncludedYes
Blade TypeBlade
Control Unit IncludedNo
Amperage Rating4.1 A
Voltage12
Motor TypeBrushed
Fan 1 Blade Quantity5
Connector TypeRectangular
Terminal Quantity2
Shroud ColorBlack
Diameter300 mm
ReversibleNo
Fan RotationClockwise (Right)
Hub Bolt Hole Diameter6 mm
Body TypeVarious - Application Specific
Maximum Rpm2484 RPM
Airflow Rate843 CFM
Connector GenderMale
Shaft Diameter6 mm
Mounting Hardware IncludedNo
MaterialPlastic
Motor IncludedYes
Fan Clutch MountedNo
Part FitmentDirect Fit
Grade TypeStandard Replacement
Vendor Part Number620-219
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
