Vehicle Info NeededDORMAN PRODUCTSPART NUMBER: 326-620-616

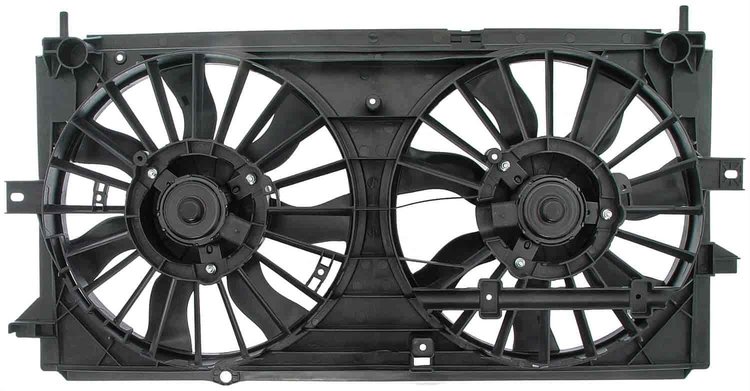

Radiator Fan Assembly
$14692
Ships on 09/08/2026
Lowest Price Guarantee- Radiator Fan Assembly
This engine cooling fan assembly is precision-engineered to match the fit and performance of the stock radiator fan on specific vehicle years, makes and models. It has been rigorously tested to ensure it cools as effectively as the original part.Ideal replacement - this engine cooling fan assembly was precision-engineered to match the fit and performance of the stock radiator fan assembly on specific vehiclesComplete package - assembly is designed with the same materials and components as the original partQuality assured - motors are tested in laboratory settings to ensure performanceCost effective and reliable - trustworthy manufacturing for far less than same part at the dealership
Part TypeElectric Fan
BrandDORMAN PRODUCTS
Package Height444 mm
Package Width815 mm
Package Length35.0
Weight14.7 PG
Housing FinishBlack
Shroud IncludedYes
Fan 2 Blade Quantity7
Shroud MaterialPlastic
Terminal GenderMale
Connector Quantity2
Blade MaterialPlastic
Fan Quantity2
PositionN/A
Fan 2 Diameter358 mm
Terminal TypeBlade
Electrical Or MechanicalElectrical
Blade ColorBlack
Hub Bolt Hole Quantity2
Blade Quantity7
Hardwired Or Plug-InPlug-In
Part CategoryReplacement Parts
Wiring Harness IncludedNo
Blade Length179 mm
Blade Material Thickness2 mm
Hub Depth11 mm
Depth146 mm
Flat Side On ShaftNo
Fan 1 Diameter358 mm
Shaft Length11 mm
Mounting Bracket IncludedYes
Blade TypeBlade
Control Unit IncludedNo
Amperage Rating9.3 A
Voltage12
Motor TypeBrushed
Fan 1 Blade Quantity7
Connector TypeRound
Terminal Quantity2
Shroud ColorBlack
Diameter358 mm
ReversibleNo
Fan RotationClockwise
Hub Bolt Hole Diameter6 mm
Maximum Rpm2199 RPM
Airflow Rate1719.1 CFM
Connector GenderMale
Shaft Diameter6 mm
Mounting Hardware IncludedNo
MaterialPlastic
Motor IncludedYes
Fan Clutch MountedNo
Part FitmentDirect Fit
Grade TypeStandard Replacement
Vendor Part Number620-616
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
