Vehicle Info NeededDORMAN PRODUCTSPART NUMBER: 326-930-614

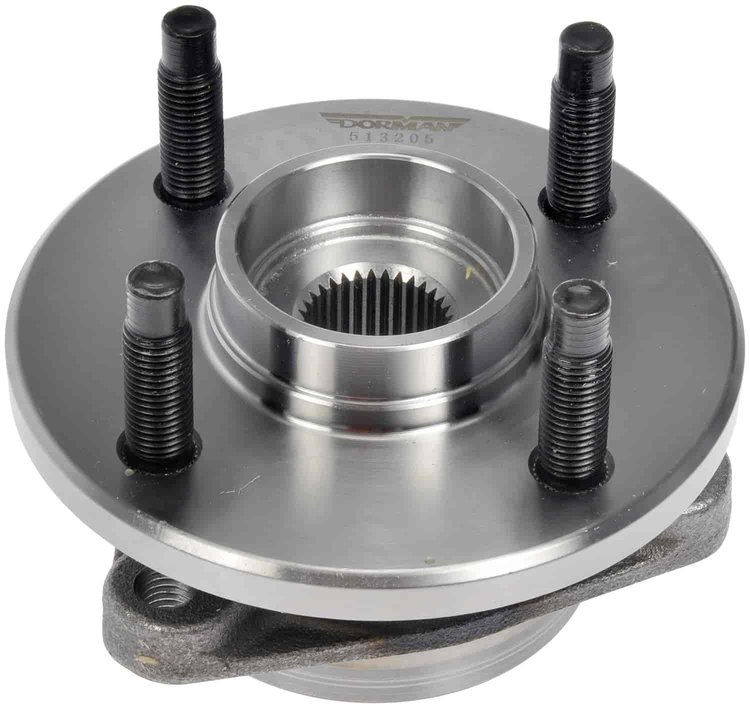

Wheel Hub and Bearing Assembly for 2005-2010 Chevy Cobalt, 2007-2010 Pontiac G5, 2005-2006 Pontiac Pursuit, 2003-2007 Saturn Ion
$9792
Ships Tomorrow
Lowest Price GuaranteeWheel Hub and Bearing Assembly
Wheel Hub and Bearing Assembly2005-2010 Chevy Cobalt 2007-2010 Pontiac G5 2005-2006 Pontiac Pursuit 2003-2007 Saturn Ion Hub Pilot Diameter: 2.200 in. Flange Diameter: 4.330 in. Flange Offset: 1.540 in. 4 Bolt Holes Front
Dorman 930-614 Wheel Hub and Bearing Assembly Direct Replacement for:
- GM 12413077
- GM 12413078
- GM 12413165
- GM 22667147
- GM 22701520
- GM 7467576
- Dorman wheel hubs are designed to be OEM replacements. These hubs are bolt on hubs for the specified application.
Part TypeWheel Bearing and Hub Assembly
Product LineDorman Wheel Hubs
BrandDORMAN PRODUCTS
Package Height4.6
Package Width6.5
Package Length6.5
Weight6.81 PG
Part CategoryReplacement Parts
Brake Pilot Diameter2.3 in.
Spline Quantity32
Flange ShapeTriangular
Wheel Stud Size (Mm)12.00
PositionFront
Wheel Studs IncludedYes
Wheel Pilot Diameter2.4 in.
Flange Bolt Hole Quantity3
Flange Bolt Hole Diameter0.4 in.
MaterialSteel
Flange Bolts IncludedYes
Wheel Stud SizeM12 X 1.25 mm
Wheel Stud Quantity4
Bearing GenerationGen 3
Stud Length1.25 in (31.8 mm)
Bolt Circle Diameter3.94 in.
Flange Diameter4.33 in.
Anti Lock Braking SystemNo
Flange IncludedYes
Flange Offset1.54 in.
Connector Quantity0
Hub Pilot Diameter2.2 in.
Vendor Part Number930-614
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
