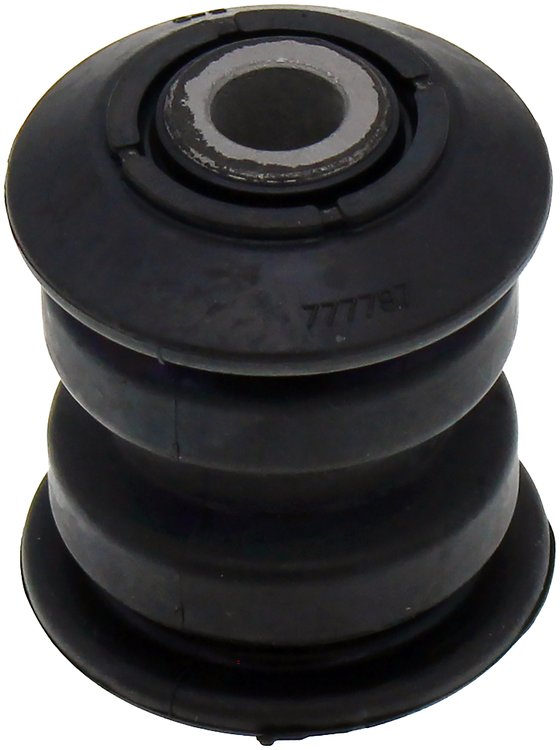

Dorman BC28345 is a standard-replacement suspension control arm bushing for Sprinter-platform front suspension service, built to restore the cushioned control arm pivot point when the original rubber bushing is worn, cracked, or loose. It supports Dodge Sprinter 2500 and 3500 models from 2007-2009, Freightliner Sprinter 2500 and 3500 models from 2007-2021, Mercedes-Benz Sprinter 2500, 3500, and 3500XD models from 2007-2025, plus Volkswagen applications from 2008-2018. Press-in mounting, rubber isolation, and supplied hardware help match the OE service approach without buying a complete control arm assembly.

Dorman BC28345 Technical Specifications:

• Black rubber bushing construction helps isolate road impact and suspension vibration at the control arm pivot.
• Press-in mounting design is made for replacement of the original equipment bushing on the specified Sprinter-platform applications.
• 52 mm outside diameter and 52 mm bushing width provide the key sizing needed for service verification before installation.
• 14.3 mm inside diameter, 74.9 mm length, and 19.11 mm wall thickness support accurate comparison with the removed bushing.
• Distance between mounting holes measures 74.9 mm for checking fit during control arm service.
• Dust boot is included to help protect the serviced joint area from road debris.
• Hardware is included, while a mounting bracket is not included, so existing bracket condition should be verified during repair planning.
• Sold individually for targeted replacement when only one control arm bushing position needs service.

Includes:

• One suspension control arm bushing
• Installation hardware
• Dust boot

This bushing is intended for OE-style suspension repair on compatible Sprinter 2500, Sprinter 3500, and Sprinter 3500XD vans. Because it uses a press-in mount, installation typically requires the proper bushing press tools and inspection of the control arm bore before reassembly.
