DORMAN PRODUCTSPART NUMBER: 326-CB15244

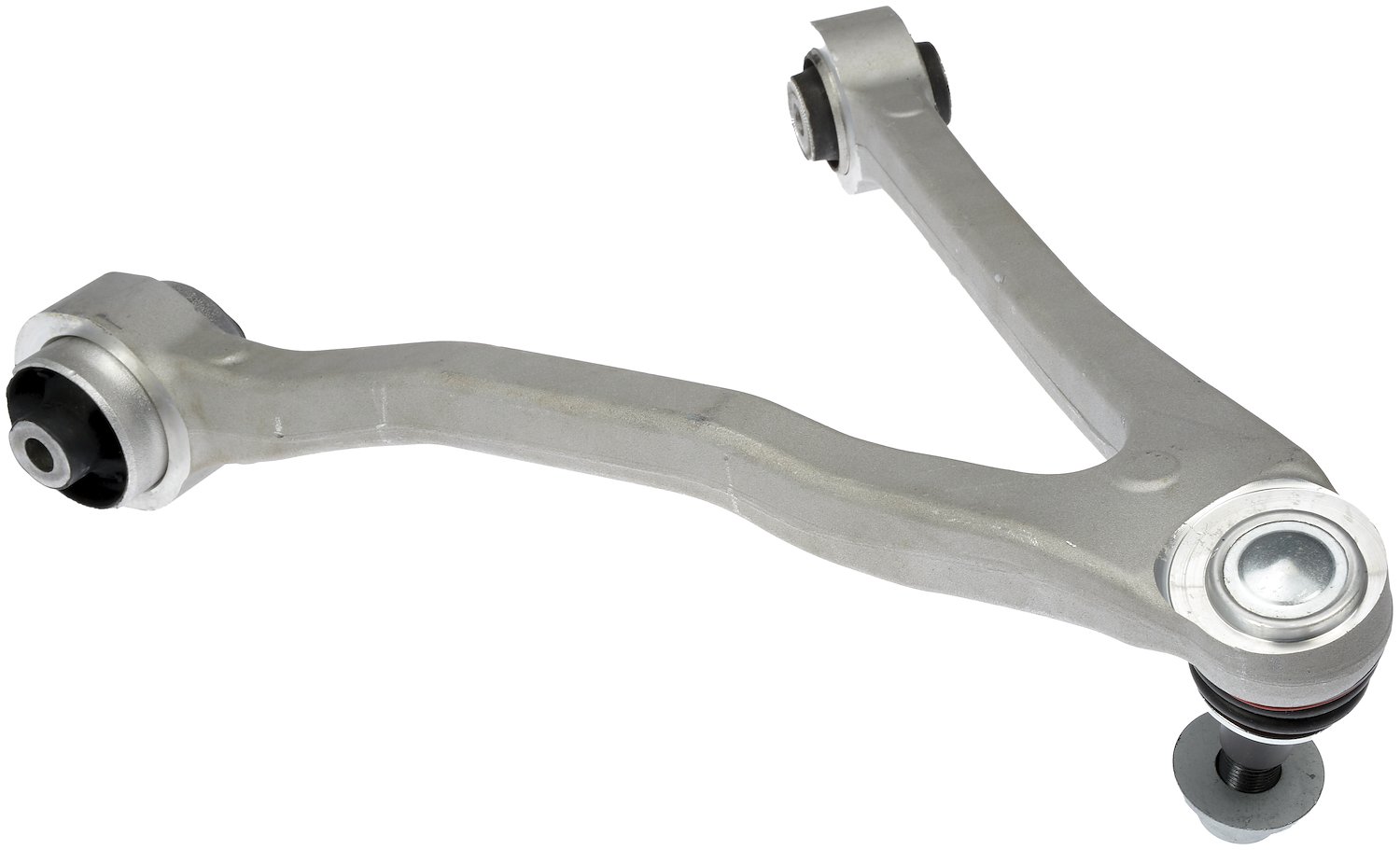

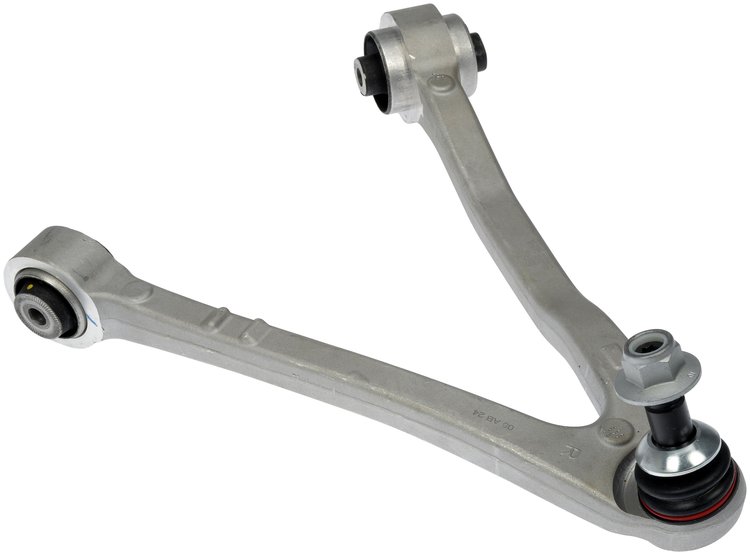

CB15244 Suspension Control Arm and Ball Joint Assembly; BMW
$22352
Control Arm2014-2021 BMW i3; 2018-2022 BMW i3s Trustworthy Replacement Includes: Nut Sold Individually
This suspension control arm and ball joint assembly is a direct replacement for the original equipment on specific vehicle applications. An industry-leading evaluation process ensures a smooth ride, directional stability and predictable dynamics.
Suspension Control Arm and Ball Joint Assembly Features:
- Fits 2014-2021 BMW i3; 2018-2022 BMW i3s
- Durable construction manufactured to strict quality standards
- Complete repair — each assembly includes pre-installed ball joint and bushings, saving time and labor
- Quality engineering — underwent industry-leading testing to ensure a smooth, stable and safe ride
- Trustworthy replacement — this control arm and ball joint assembly directly replaces the original assembly on specific vehicle applications
- Includes: Nut
Part TypeSuspension Control Arm
BrandDORMAN PRODUCTS
Package Height4.06
Package Width16.13
Package Length367 mm
Weight6.03 PG
Part CategoryReplacement Parts
Grease Fitting IncludedNo
Ball Joint Stud TypeThreaded
Bushing Inside Diameter12.2 mm
Ball Joint IncludedYes
Thread Diameter16 mm
Bushing ColorBlack
Ball Joint Mounting TypeMachined
Mounting Hole Quantity2
Ball Joint Thread Diameter1.5 mm
Distance Between Bushings330 mm
Length Center Bore To Center Bore330 mm
Dust Boot IncludedYes
Bore Diameter12.2 mm
Control Arm ColorGray
Control Arm MaterialAluminum
Control Arm ConstructionCasting/Forged
Mounting Hole Diameter12.2 mm
Steering TypePower
Suspension Grade TypeStandard Replacement
End 1 Thread Pitch1.5 mm
Castle Nut IncludedYes
FinishPainted
End 1 Thread Diameter16 mm
Pre-GreasedYes
Bearing MaterialPolymer
Bushing MaterialRubber
Cotter Pin IncludedNo
Mounting Hardware IncludedYes
Control Arm TypeForged
End 1 Thread Size16 mm
Thread Size16 mm
Bushing Length83 mm
Control Arm Maximum Width330 mm
Cone Outside Diameter19 mm
AdjustableNo
Ball Joint Stud Length21.9 mm
Thread DirectionClockwise (Right)
Thread Pitch1.5 mm
GreaseableNo
Control Arm Maximum Length367 mm
Boot ColorBlack
Part FitmentDirect Fit
Locking Nut IncludedYes
Bushings IncludedYes
Grade TypeStandard Replacement
ReinforcedNo
Vendor Part NumberCB15244
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
