DORMAN PRODUCTSPART NUMBER: 326-CB63454

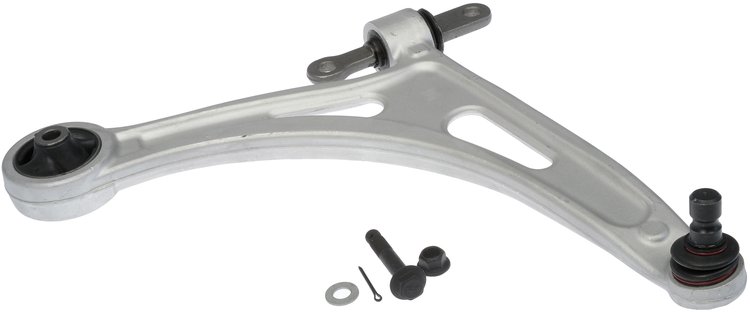

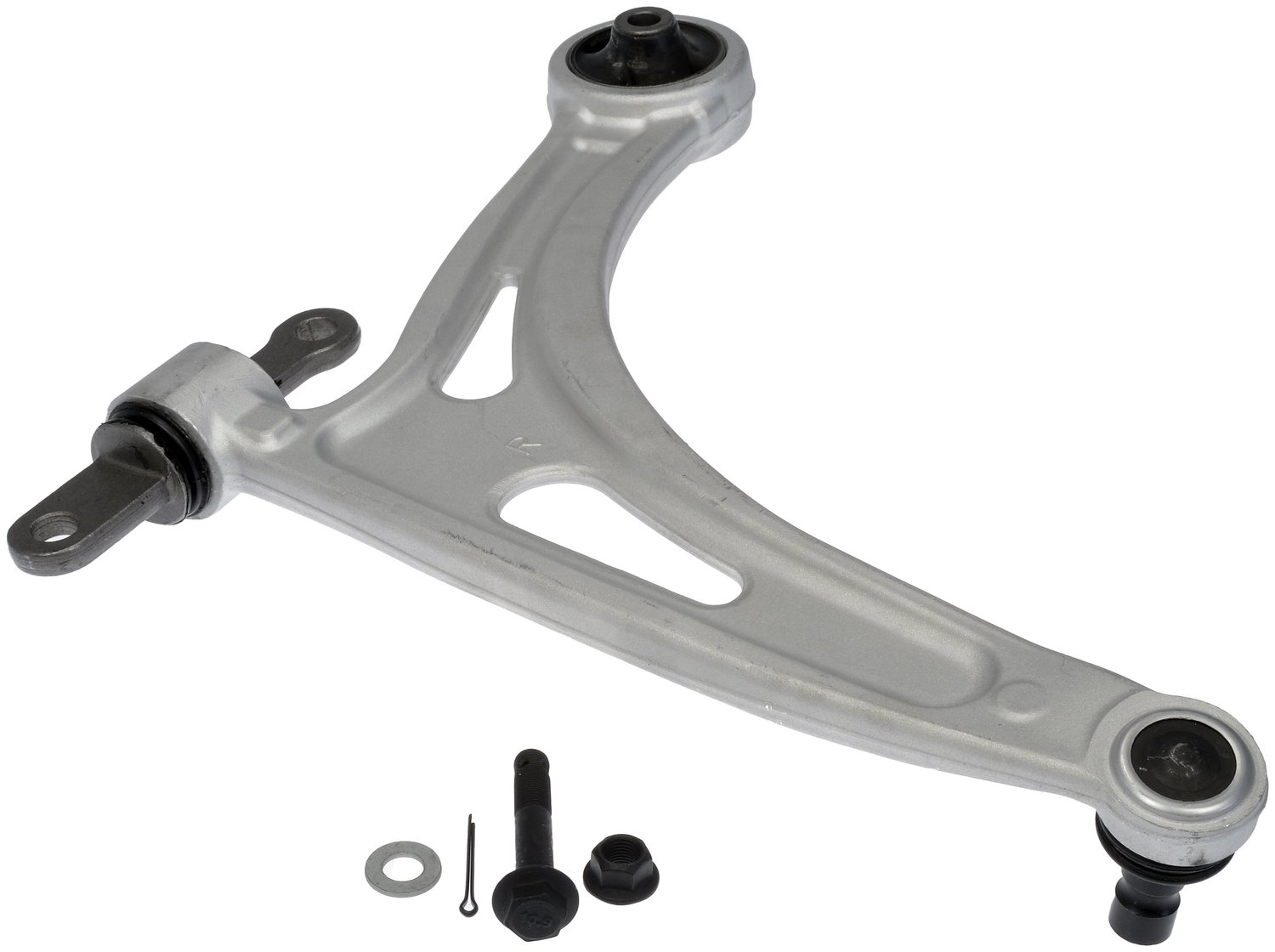

CB63454 Suspension Control Arm and Ball Joint Assembly; Hyundai/Kia
$10977
Control Arm2020-2025 Hyundai Sonata; 2021-2025 Kia K5 Trustworthy Replacement Includes: Nut, Bolt, Washer Sold Individually
This suspension control arm and ball joint assembly is a direct replacement for the original equipment on specific vehicle applications. An industry-leading evaluation process ensures a smooth ride, directional stability and predictable dynamics.
Suspension Control Arm and Ball Joint Assembly Features:
- Fits 2020-2025 Hyundai Sonata; 2021-2025 Kia K5
- Durable construction manufactured to strict quality standards
- Complete repair — each assembly includes pre-installed ball joint and bushings, saving time and labor
- Quality engineering — underwent industry-leading testing to ensure a smooth, stable and safe ride
- Trustworthy replacement — this control arm and ball joint assembly directly replaces the original assembly on specific vehicle applications
- Includes: Nut, Bolt, Washer
Part TypeSuspension Control Arm
BrandDORMAN PRODUCTS
Package Height5.87
Package Width17.75
Package Length388 mm
Weight8.94 PG
Bushing Inside Diameter14.2 mm
Ball Joint IncludedYes
Thread Diameter12 mm
Bushing ColorBlack
Mounting Hole Quantity3
End 2 Thread Diameter14 mm
Length Center Bore To Center Bore388 mm
Control Arm ColorGray
Control Arm ConstructionCasting/Forged
Steering TypePower
Suspension Grade TypeStandard Replacement
Pre-GreasedYes
Control Arm TypeCasting/Forged
Thread Size12 mm
Bushing Length68 mm
Cone Outside Diameter20 mm
AdjustableNo
Ball Joint Stud Length11.5 mm
Thread DirectionClockwise (Right)
GreaseableNo
Boot ColorBlack
Locking Nut IncludedYes
Bushings IncludedYes
ReinforcedNo
Part CategoryReplacement Parts
Grease Fitting IncludedNo
Ball Joint Stud TypePinch
Ball Joint Mounting TypeMachined
Ball Joint Thread Diameter14 mm
Distance Between Bushings322.5 mm
Dust Boot IncludedYes
Bore Diameter14.2 mm
Dust Boot MaterialPolychloroprene
Control Arm MaterialAluminum
Mounting Hole Diameter15 mm
Bushing IncludedYes
Castle Nut IncludedNo
FinishPainted
End 1 Thread Diameter14 mm
Bearing MaterialPolymer
Bushing MaterialRubber
Cotter Pin IncludedNo
End 2 Thread Size14 mm
Mounting Hardware IncludedYes
End 1 Thread Size14 mm
Control Arm Maximum Width375.5 mm
Boot MaterialPolychloroprene
Thread Pitch1.25
Control Arm Maximum Length388 mm
Part FitmentSemi Universal
Grade TypeStandard Replacement
Vendor Part NumberCB63454
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
