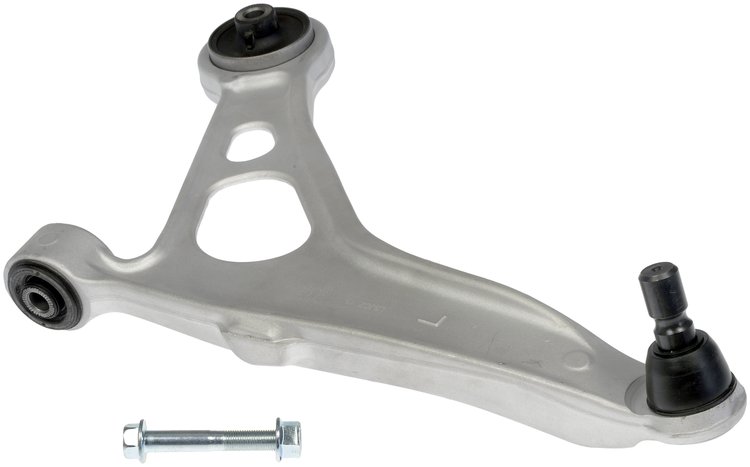

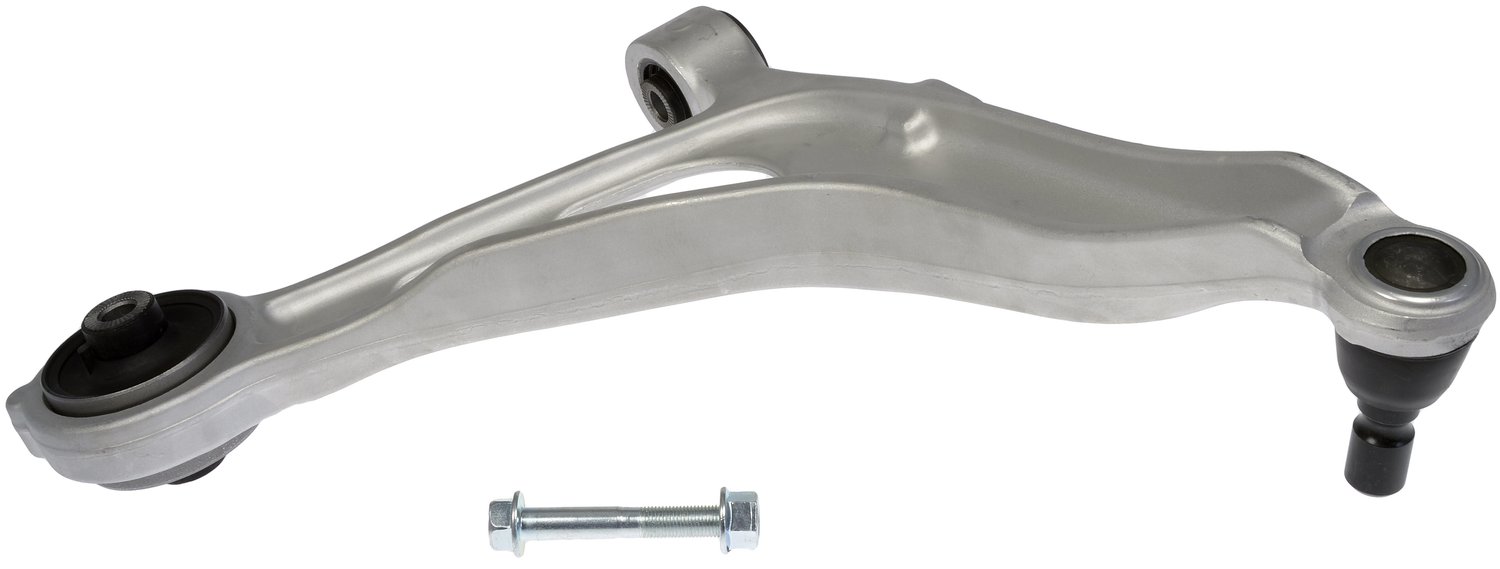

CB69483 Suspension Control Arm and Ball Joint Assembly; Nissan
InfoVehicle Info Needed
DORMAN PRODUCTSPART NUMBER: 326-CB69483

CB69483 Suspension Control Arm and Ball Joint Assembly; Nissan

$23599
ShippingShips on Sep 03, 2026
Lowest PriceLowest Price Guarantee

Control Arm
  • 2021-2025 Nissan Rogue; 2023-2024 Nissan X-Trail
  • Trustworthy Replacement
  • Includes: Bolt, Nut
  • Sold Individually

    This suspension control arm and ball joint assembly is a direct replacement for the original equipment on specific vehicle applications. An industry-leading evaluation process ensures a smooth ride, directional stability and predictable dynamics.

    Suspension Control Arm and Ball Joint Assembly Features:

    • Fits 2021-2025 Nissan Rogue; 2023-2024 Nissan X-Trail
    • Durable construction manufactured to strict quality standards
    • Complete repair — each assembly includes pre-installed ball joint and bushings, saving time and labor
    • Quality engineering — underwent industry-leading testing to ensure a smooth, stable and safe ride
    • Trustworthy replacement — this control arm and ball joint assembly directly replaces the original assembly on specific vehicle applications
    • Includes: Bolt, Nut
  • Part TypeSuspension Control Arm
    BrandDORMAN PRODUCTS
    Package Height5.87
    Package Width17.75
    Package Length399.5 mm
    Weight8.39 PG
    Bushing Inside Diameter14.2 mm
    Ball Joint IncludedYes
    Thread Diameter12 mm
    Bushing ColorSilver
    Mounting Hole Quantity2
    End 2 Thread Diameter14 mm
    Length Center Bore To Center Bore399.5 mm
    Control Arm ColorSilver
    Control Arm ConstructionCasting/Forged
    Steering TypeManual
    Suspension Grade TypeStandard Replacement
    Pre-GreasedYes
    Control Arm TypeCasting/Forged
    Thread Size12 mm
    Bushing Length49.8 mm
    Cone Outside Diameter14 mm
    AdjustableNo
    Ball Joint Stud Length19.11 mm
    Thread DirectionClockwise (Right)
    GreaseableNo
    Boot ColorBlack
    Locking Nut IncludedYes
    Bushings IncludedYes
    ReinforcedYes
    Part CategoryReplacement Parts
    Grease Fitting IncludedNo
    Ball Joint Stud TypePinch
    Ball Joint Mounting TypeMachined
    Distance Between Bushings294 mm
    Dust Boot IncludedYes
    Bore Diameter20 mm
    Dust Boot MaterialPolychloroprene
    Control Arm MaterialAluminum
    Mounting Hole Diameter14.2 mm
    Bushing IncludedYes
    Castle Nut IncludedNo
    FinishPainted
    End 1 Thread Diameter14 mm
    Bearing MaterialPolymer
    Bushing MaterialRubber
    Cotter Pin IncludedNo
    End 2 Thread Size14 mm
    Mounting Hardware IncludedYes
    End 1 Thread Size14 mm
    Control Arm Maximum Width294 mm
    Boot MaterialPolychloroprene
    Thread Pitch1.25 in.
    Control Arm Maximum Length399.5 mm
    Part FitmentDirect Fit
    Grade TypeStandard Replacement
    Vendor Part NumberCB69483
    Package Qty1
    Package TypeEA
