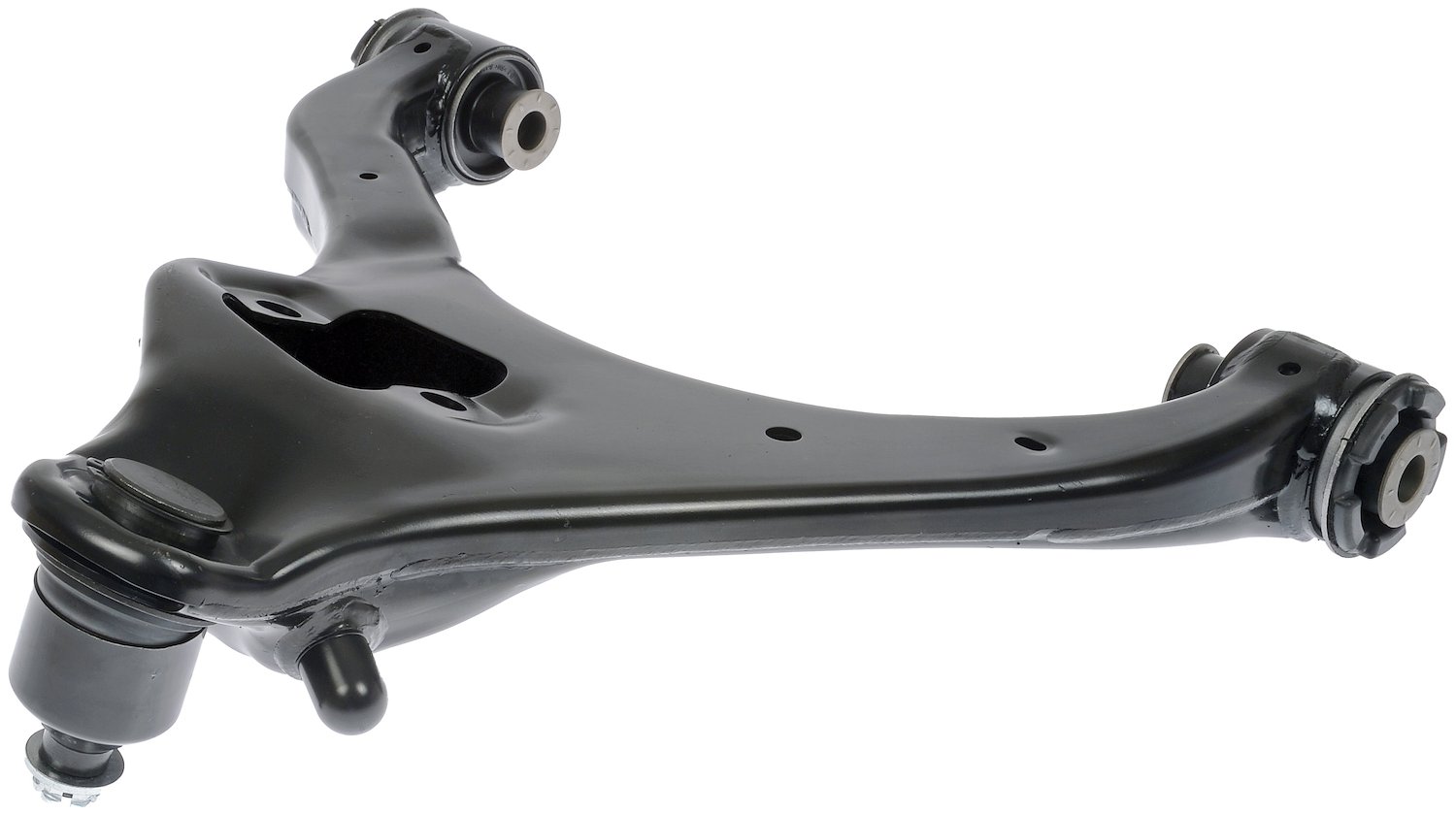

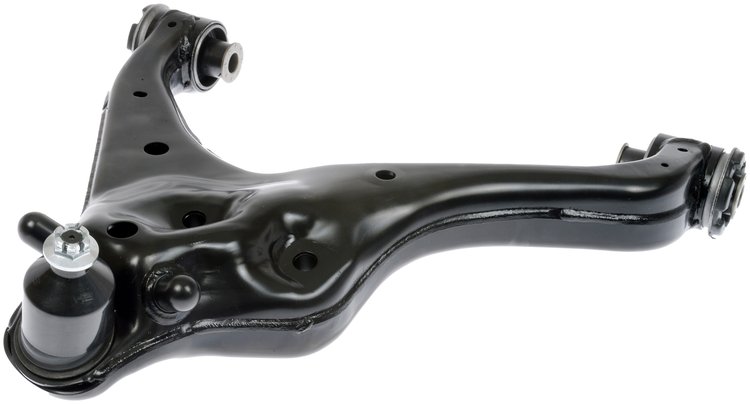

CB86363 Suspension Control Arm and Ball Joint Assembly; Ford
InfoVehicle Info Needed
DORMAN PRODUCTSPART NUMBER: 326-CB86363

CB86363 Suspension Control Arm and Ball Joint Assembly; Ford

$24522
ShippingShips on 09/09/2026
Lowest PriceLowest Price Guarantee

Control Arm
  • 2021-2025 Ford F-150; 2021-2025 Ford Lobo
  • Trustworthy Replacement
  • Includes: Nut, Cotter Pin
  • Sold Individually

    This suspension control arm and ball joint assembly is a direct replacement for the original equipment on specific vehicle applications. An industry-leading evaluation process ensures a smooth ride, directional stability and predictable dynamics.

    Suspension Control Arm and Ball Joint Assembly Features:

    • Fits 2021-2025 Ford F-150; 2021-2025 Ford Lobo
    • Durable construction manufactured to strict quality standards
    • Complete repair — each assembly includes pre-installed ball joint and bushings, saving time and labor
    • Quality engineering — underwent industry-leading testing to ensure a smooth, stable and safe ride
    • Trustworthy replacement — this control arm and ball joint assembly directly replaces the original assembly on specific vehicle applications
    • Includes: Nut, Cotter Pin
  • Part TypeSuspension Control Arm
    BrandDORMAN PRODUCTS
    Package Height9.0
    Package Width23.0
    Package Length419.2 mm
    Weight20.54 PG
    Part CategoryReplacement Parts
    Grease Fitting IncludedNo
    Ball Joint Stud TypeThreaded
    Bushing Inside Diameter18.6 mm
    Ball Joint IncludedYes
    Thread Diameter14 mm
    Bushing ColorBlack
    Ball Joint Mounting TypePress In
    Mounting Hole Quantity4
    Ball Joint Thread Diameter14 mm
    Distance Between Bushings558 mm
    Length Center Bore To Center Bore558 mm
    Dust Boot IncludedYes
    Bore Diameter18.6 mm
    Control Arm ColorBlack
    Control Arm MaterialSteel
    Control Arm ConstructionStamped
    Mounting Hole Diameter16.2 mm
    Steering TypePower
    Suspension Grade TypeStandard Replacement
    End 1 Thread Pitch1.5 mm
    Castle Nut IncludedYes
    FinishPainted
    End 1 Thread Diameter14 mm
    Pre-GreasedYes
    Bearing MaterialPolymer
    Bushing MaterialRubber
    Cotter Pin IncludedYes
    Mounting Hardware IncludedYes
    Control Arm TypeStamped
    End 1 Thread Size1.5 mm
    Thread Size14 mm
    Bushing Length100.2 mm
    Control Arm Maximum Width558 mm
    Cone Outside Diameter19.75 mm
    AdjustableNo
    Ball Joint Stud Length37.5 mm
    Thread DirectionClockwise (Right)
    Thread Pitch1.5 mm
    GreaseableNo
    Control Arm Maximum Length419.2 mm
    Boot ColorBlack
    Part FitmentDirect Fit
    Locking Nut IncludedYes
    Bushings IncludedYes
    Grade TypeStandard Replacement
    ReinforcedNo
    Vendor Part NumberCB86363
    Package Qty1
    Package TypeEA
