1-2834-4005 FX-Series Dish Top Piston Set for 1999-2019 Chevy LS, 4.005 in. Bore, -22cc Volume [OEM Stroke]
InfoVehicle Info Needed
DSS RACINGPART NUMBER: 915-1-2834-4005

1-2834-4005 FX-Series Dish Top Piston Set for 1999-2019 Chevy LS, 4.005 in. Bore, -22cc Volume [OEM Stroke]

$74995
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Items You Need

Engine Assembly Lube [4 oz. Bottle]

JEGS

Engine Assembly Lube [4 oz. Bottle]

Part Number : 555-28000
$599$6.99
You Save$1.00
Piston Ring Pliers Installs and Removes Rings without Breakage

JEGS

Piston Ring Pliers Installs and Removes Rings without Breakage

Part Number : 555-80845
$647$6.99
You Save$0.52
Piston Installation Kit Includes: Universal Ring Squaring Tool, Ring Compressor, & Heavy Duty Piston Install Tool

PROFORM

Piston Installation Kit Includes: Universal Ring Squaring Tool, Ring Compressor, & Heavy Duty Piston Install Tool

Part Number : 778-67652K3
$9548
Wrinkle Band Ring Compressor Adjustable for 3" -5" Bore Sizes

JEGS

Wrinkle Band Ring Compressor Adjustable for 3" -5" Bore Sizes

Part Number : 555-W80574
$1599$17.99
You Save$2.00

GM Gen III/IV LS

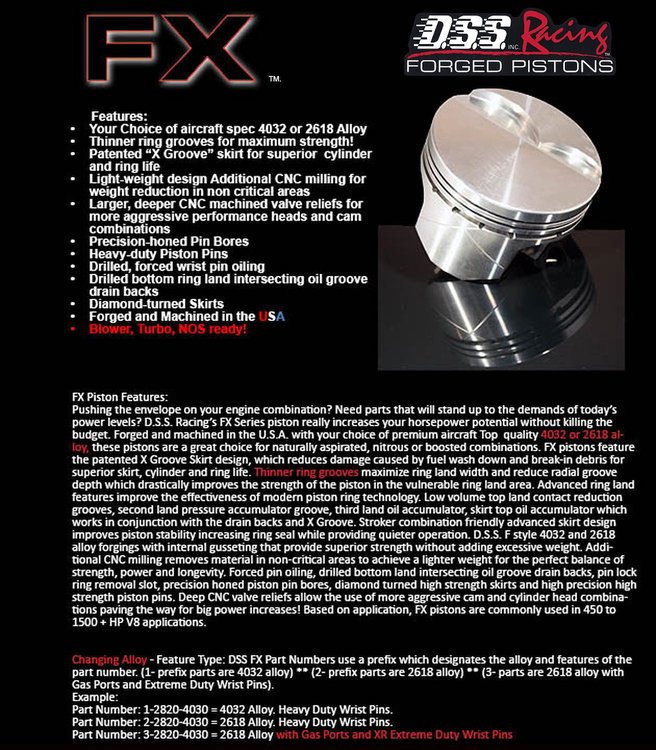

FX-Series Dish Top Piston Set
  • 1999-2019 Chevy LS
  • Bore: 4.005 in.
  • Head Volume: -22cc
  • Material: Forged 4032
  • Pin Diameter: .943 in.
  • Pin Style: Press or Full Floating
  • Ring Thickness: 1.2/1.2/3 mm
  • OEM Stroke
  • Set of 8

    DSS Racing 1-2834-4005 Features:

    • 6 additional areas of CNC milling for weight reduction in non critical areas
    • Thinner Ring Grooves Maximize Critical Ring Land Strength
    • Larger CNC Machined Valve Reliefs for More Aggressive Head & Cam Combinations
    • Heavy-Duty Piston Pins
    • Double True Arc Pin Locks, Provide Redundancy
    • Precision CNC Finished Pin Bores
    • Drilled Forced Wrist Pin Oiling
    • Drilled Bottom Ring Land Intersecting Oil Drain Backs
    • Advanced Profile Precision Diamond-Turned Skirts
    • Boost and NOS Ready! (Moderate to High Levels)
    • Ring Set Required: RS-XP600-4005
    • Ring Series: XP600
    • Fits Base Engine: 6.0 - LS2 -6.2 - LS3 - L98 - LQ9 - LS7 - LSA - LSX
    • Compression Ratio: 64cc-8.93, 66cc-8.77, 72cc-8.31
    • Calculated Zero Deck: 9.239
    • Compression Height: 1.33 in.
    • Rod Length: 6.098 in.
    • Stroke: 3.622 in. (OEM Stroke)
    • Pin Locking Rings Included: Yes
    • Wrist Pin Included: Yes
    • Oil Rail Support Ring Included: N/A
    • With Rings Without Rings: Without Rings
    • Total Valve Reliefs: 2
    • Part TypePiston
    BrandDSS RACING
    Package Height7.0
    Package Width8.5
    Package Length8.5
    Weight16.0 PG
    Part CategoryPerformance Parts
    Pin Lock Rings IncludedYes
    Compression Height (In)1.33
    Bore (In)4.005
    Wrist Pin StylePress or Full Floating
    QuantitySet of 8
    Piston Head Volume-22cc
    Piston StyleDish Top
    Compression Ratio64cc-8.93, 66cc-8.77, 72cc-8.31
    Ring Thickness1.2/1.2/3 mm
    Piston MaterialForged 4032
    Pin Diameter (In)0.943
    Part FitmentSemi Universal
    Wrist Pin IncludedYes
    Snap Rings IncludedYes
    Vendor Part Number1-2834-4005
    Package Qty1
    Package TypeEA
    Please click here to download the instructions PDF file
