![2-3268-4125C FX-Series Dome Top Piston Set for 1962-2001 Small Block Ford 351W, 4.125 in. Bore, +6cc Volume [Stroker]](https://www.jegs.com/images/mini_750/900/915/915-2-3268-4125c.jpg)
Vehicle Info NeededDSS RACINGPART NUMBER: 915-2-3268-4125C

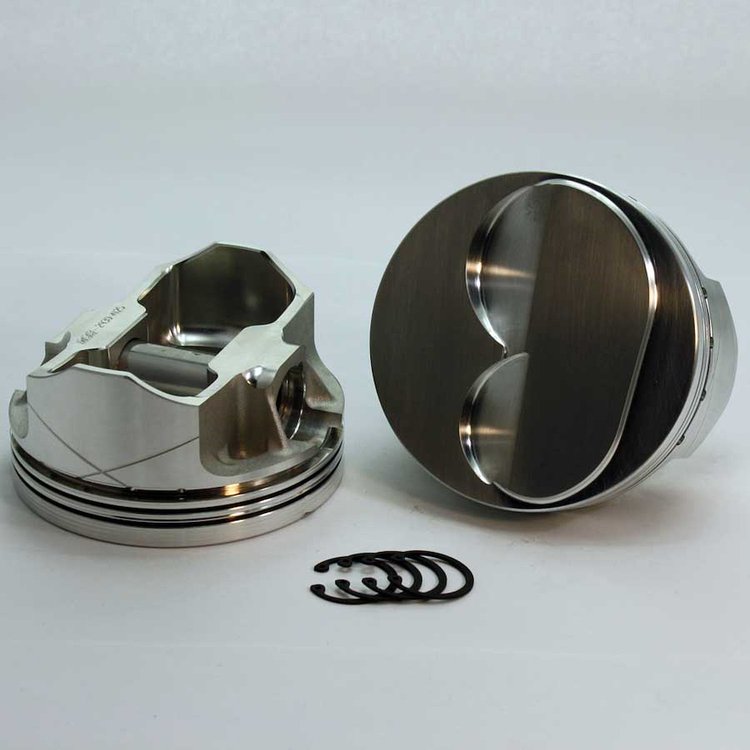

2-3268-4125C FX-Series Dome Top Piston Set for 1962-2001 Small Block Ford 351W, 4.125 in. Bore, +6cc Volume [Stroker]
$82995
1 left in stock
Ships Tomorrow
Lowest Price GuaranteeFord Small Block
FX-Series Dome Top Piston Set1962-2001 Small Block Ford 351W Bore: 4.125 in. Head Volume: +6cc Material: Forged 2618 Pin Diameter: .927 in. Pin Style: Press or Full Floating Ring Thickness: 1.2/1.2/3 mm Stroker Set of 8
DSS Racing 2-3268-4125C Features:
- Strong, Heat Resistant 2618 Alloy
- Proprietary "DMAX" Multi Stage Forging Process, Produces' a Superior Forging
- Patented "X Groove" Skirt for Superior Cylinder & Ring Performance & Durability
- Advanced Ring Lands Featuring a Combination of Accumulators and Drilling Ops.
- 6 additional areas of CNC milling for weight reduction in non critical areas.
- Thinner Ring Grooves Maximize Critical Ring Land Strength
- Larger CNC Machined Valve Reliefs for More Aggressive Head & Cam Combinations
- Heavy-Duty Piston Pins
- Double True Arc Pin Locks, Provide Redundancy
- Precision CNC Finished Pin Bores
- Drilled Forced Wrist Pin Oiling
- Drilled Bottom Ring Land Intersecting Oil Drain Backs
- Advanced Profile Precision Diamond-Turned Skirts
- Ring Set Required: RS-XP600-4125
- Ring Series: XP600
- Fits Base Engine: 434W - 5.8 Stroker
- Compression Ratio: 58cc-16.31, 64cc-14.93, 70cc-13.78
- Calculated Zero Deck: 9.49
- Compression Height: 1.165 in.
- Rod Length: 6.2 in.
- Stroke: 4.25 in. (Stroker)
- Pin Locking Rings Included: Yes
- Wrist Pin Included: Yes
- Oil Rail Support Ring Included: Required
- With Rings Without Rings: Without Rings
- Total Valve Reliefs: 2
Part TypePiston
BrandDSS RACING
Package Height6.9
Package Width8.6
Package Length8.8
Weight13.04 PG
Part CategoryPerformance Parts
Pin Lock Rings IncludedYes
Compression Height (In)1.165
Bore (In)4.125
Wrist Pin StylePress or Full Floating
QuantitySet of 8
Piston Head Volume+6cc
Piston StyleDome Top
Compression Ratio58cc-16.31, 64cc-14.93, 70cc-13.78
Ring Thickness1.2/1.2/3 mm
Piston MaterialForged 2618
Pin Diameter (In)0.927
Part FitmentSemi Universal
Wrist Pin IncludedYes
Snap Rings IncludedYes
Vendor Part Number2-3268-4125C
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
