![3-6483-4030 FX-Series Dish Top No-Notch Piston Set for 2003-2008 Mopar Viper/SRT, 4.030 in. Bore, -10cc Volume [OEM Stroke]](https://www.jegs.com/images/mini_750/900/915/915-3-6483-4030.jpg)
Vehicle Info NeededDSS RACINGPART NUMBER: 915-3-6483-4030

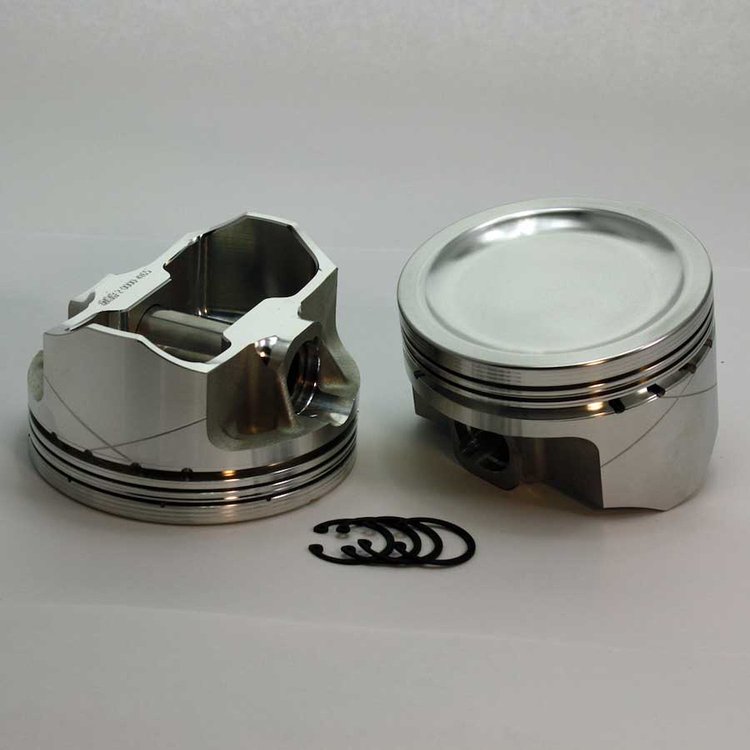

3-6483-4030 FX-Series Dish Top No-Notch Piston Set for 2003-2008 Mopar Viper/SRT, 4.030 in. Bore, -10cc Volume [OEM Stroke]
$1,69995
Ships on 09/15/2026
Lowest Price GuaranteeMopar Viper/SRT
FX-Series Dish Top No-Notch Piston Set2003-2008 Mopar Viper/SRT Bore: 4.030 in. Head Volume: -10cc Material: Forged 2619 Pin Diameter: .927 in. Pin Style: Press or Full Float Ring Thickness: 1.2/1.2/3 mm OEM Stroke Set of 10
DSS Racing 3-6483-4030 Features:
- Strong, Heat Resistant 2618 Alloy
- Proprietary "DMAX" Multi Stage Forging Process, Produces' a Superior Forging
- Patented "X Groove" Skirt for Superior Cylinder & Ring Performance & Durability
- Advanced Ring Lands Featuring a Combination of Accumulators and Drilling Ops.
- Ten top Land Horizontal Gas Ports For the Ultimate In Ring seal and Performance
- 6 additional areas of CNC milling for weight reduction in non critical areas.
- Thinner Ring Grooves Maximize Critical Ring Land Strength
- Larger CNC Machined Valve Reliefs for More Aggressive Head & Cam Combinations
- DSS XR Heavy Wall Piston Pins
- Precision CNC Finished Pin Bores
- Double Spiro lock Pin Locks, Provide Redundancy
- Drilled Forced Wrist Pin Oiling
- Drilled Bottom Ring Land Intersecting Oil Drain Backs
- Advanced Profile Precision Diamond-Turned Skirts
- Ring Set Required: RS-XP600-4030
- Ring Series: XP600
- Fits Base Engine: 506
- Compression Ratio: 64cc-11.05, 74cc-9.96, 84cc-9.09
- Calculated Zero Deck: 9.442
- Compression Height: 1.22 in.
- Rod Length: 6.242 in.
- Stroke: 3.96 in. (OEM Stroke)
- Pin Locking Rings Included: Yes
- Wrist Pin Included: Yes
- Oil Rail Support Ring Included: N/A
- With Rings Without Rings: Without Rings
- Total Valve Reliefs: 0
Part TypePiston
BrandDSS RACING
Package Height7.0
Package Width8.5
Package Length8.5
Weight16.0 PG
Part CategoryPerformance Parts
Pin Lock Rings IncludedYes
Compression Height (In)1.22
Bore (In)4.03
Wrist Pin StylePress or Full Floating
QuantitySet of 10
Piston Head Volume-10cc
Piston StyleDish Top No Notch
Compression Ratio64cc-11.05, 74cc-9.96, 84cc-9.09
Ring Thickness1.2/1.2/3 mm
Piston MaterialForged 2619
Pin Diameter (In)0.927
Part FitmentSemi Universal
Wrist Pin IncludedYes
Snap Rings IncludedYes
Vendor Part Number3-6483-4030
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
