![4802-3552C SX-Series Dish Top No-Notch Piston Set for 1997-2017 Ford Modular 5.4/5.8L, 3.552 in. Bore, -10cc Volume [OEM Stroke]](https://www.jegs.com/images/mini_750/900/915/915-4802-3552c.jpg)
Vehicle Info NeededDSS RACINGPART NUMBER: 915-4802-3552C

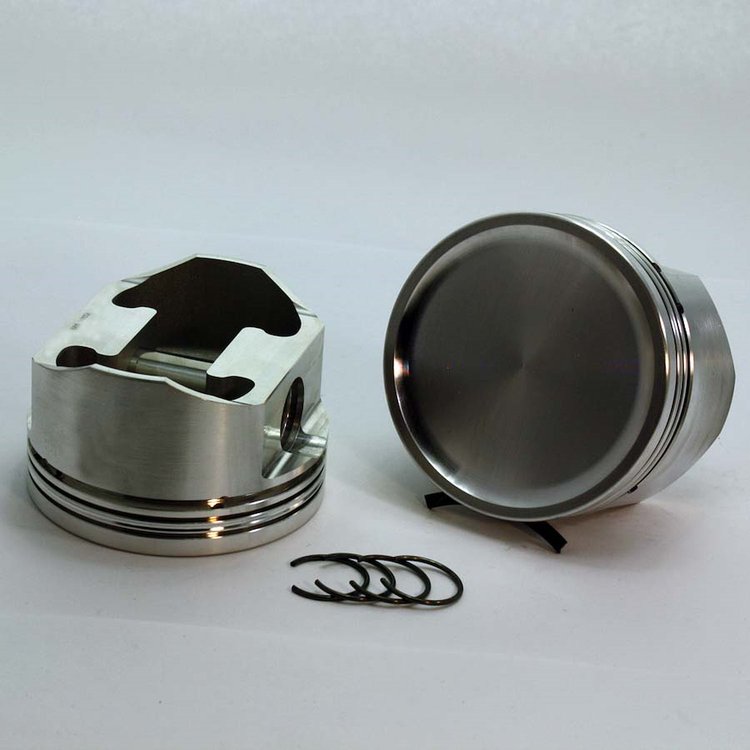

4802-3552C SX-Series Dish Top No-Notch Piston Set for 1997-2017 Ford Modular 5.4/5.8L, 3.552 in. Bore, -10cc Volume [OEM Stroke]
$64995
Ships on 09/15/2026
Lowest Price GuaranteeFord Modular
SX-Series Dish Top No-Notch Piston Set97-17 Ford Modular 5.4/5.8L Bore: 3.552 in. Head Volume: -10cc Material: Forged 4032 Pin Diameter: .866 in. Pin Style: Press or Full Float Ring Thickness: 1.5/1.5/3 mm OEM Stroke Set of 8
DSS Racing 4802-3552C Features:
- Forged from Wear Resistant 4032 Alloy
- Light Weight Design
- Machined Valve Reliefs for Moderate Performance Head and Cam Combinations
- Precision CNC Finished Pin Bores
- Heavy-Duty Piston Pins
- Full Floating or Press Fit
- Double True Arc Pin Locks Provide Redundancy
- Drilled Oil Ring Drain Backs
- Precision Diamond-Turned Skirts
- Boost and NOS Ready! (Mild to Moderate Levels)
- Ring Set Required: RS-DM200-3552
- Ring Series: DM200
- Fits Base Engine: 5.4 - 5.8
- Compression Ratio: 44cc-12.17, 50cc-11.17, 53cc-10.73
- Calculated Zero Deck: 9.9505
- Compression Height: 1.21 in.
- Rod Length: 6.658 in.
- Stroke: 4.165 in. (OEM Stroke)
- Pin Locking Rings Included: Yes
- Wrist Pin Included: Yes
- Oil Rail Support Ring Included: N/A
- With Rings Without Rings: Without Rings
- Total Valve Reliefs: 0
Part TypePiston
BrandDSS RACING
Package Height7.0
Package Width8.5
Package Length8.5
Weight16.0 PG
Part CategoryPerformance Parts
Pin Lock Rings IncludedYes
Compression Height (In)1.21
Bore (In)3.552
Wrist Pin StylePress or Full Floating
QuantitySet of 8
Piston Head Volume-10cc
Piston StyleDish Top No Notch
Compression Ratio44cc-12.17, 50cc-11.17, 53cc-10.73
Ring Thickness1.5/1.5/3 mm
Piston MaterialForged 4032
Pin Diameter (In)0.866
Part FitmentSemi Universal
Wrist Pin IncludedYes
Snap Rings IncludedYes
Vendor Part Number4802-3552C
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
