![4802-3592 SX-Series Dish Top No-Notch Piston Set for 1997-2017 Ford Modular, 3.592 in. Bore, -10cc Volume [OEM Stroke]](https://www.jegs.com/images/mini_750/900/915/915-4802-3592.jpg)
Vehicle Info NeededDSS RACINGPART NUMBER: 915-4802-3592

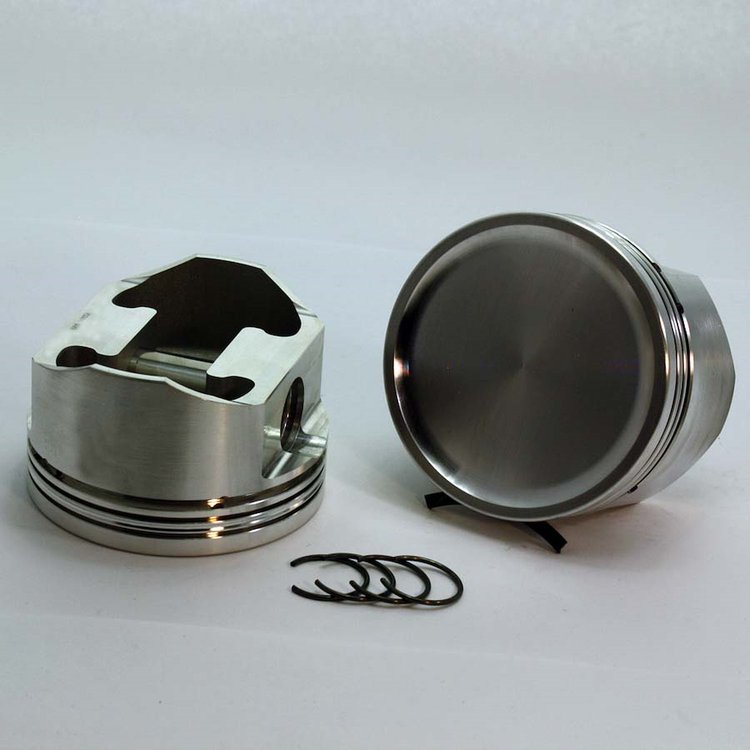

4802-3592 SX-Series Dish Top No-Notch Piston Set for 1997-2017 Ford Modular, 3.592 in. Bore, -10cc Volume [OEM Stroke]
$64995
Ships on 09/15/2026
Lowest Price GuaranteeFord Modular
SX-Series Dish Top No-Notch Piston Set1997-2017 Ford Modular Bore: 3.592 in. Head Volume: -10cc Material: Forged 4032 Pin Diameter: .866 in. Pin Style: Press or Full Floating Ring Thickness: 1.5/1.5/3 mm OEM Stroke Set of 8
DSS Racing 4802-3592 Features:
- Forged from Wear Resistant 4032 Alloy
- Light Weight Design
- Machined Valve Reliefs for Moderate Performance Head and Cam Combinations
- Precision CNC Finished Pin Bores
- Heavy-Duty Piston Pins
- Full Floating or Press Fit
- Double True Arc Pin Locks Provide Redundancy
- Drilled Oil Ring Drain Backs
- Precision Diamond-Turned Skirts
- Boost and NOS Ready! (Mild to Moderate Levels)
- Ring Set Required: RS-DM200-3592
- Ring Series: DM200
- Fits Base Engine: 4.6
- Compression Ratio: 44cc-10.69, 50cc-9.82, 53cc-9.44
- Calculated Zero Deck: 8.9145
- Compression Height: 1.21 in.
- Rod Length: 5.933 in.
- Stroke: 3.543 in. (OEM Stroke)
- Pin Locking Rings Included: Yes
- Wrist Pin Included: Yes
- Oil Rail Support Ring Included: N/A
- With Rings Without Rings: Without Rings
- Total Valve Reliefs: 0
Increase Your Engine's HP with Quality Forged Pistons
DSS Racing SX-Series forged pistons will increase your engine's horsepower without breaking the bank. These high-performance pistons are made of premium aluminum alloy and come with quality features, including forced pin oiling, drilled return holes, a turned dish design, and CNC diamond-turned skirts—not typically found in pistons at this price point. Whether using a blower, turbo, or nitrous, SX-forged pistons will quench your quest for horsepower.
Part TypePiston
Product LineDSS Racing SX-Series Forged 4032 Pistons
BrandDSS RACING
Package Height7.0
Package Width8.5
Package Length8.5
Weight16.0 PG
Part CategoryPerformance Parts
Pin Lock Rings IncludedYes
Compression Height (In)1.21
Bore (In)3.592
Wrist Pin StylePress or Full Floating
QuantitySet of 8
Piston Head Volume-10cc
Piston StyleDish Top No Notch
Compression Ratio44cc-10.69, 50cc-9.82, 53cc-9.44
Ring Thickness1.5/1.5/3 mm
Piston MaterialForged 4032
Pin Diameter (In)0.866
Part FitmentSemi Universal
Wrist Pin IncludedYes
Snap Rings IncludedYes
Vendor Part Number4802-3592
Package Qty1
Package TypeEA
