![4804-3582 SX-Series Dish Top No-Notch Piston Set for 1997-2017 Ford Modular, 3.582 in. Bore, -18cc Volume [OEM Stroke]](https://www.jegs.com/images/mini_750/900/915/915-4804-3582.jpg)
Vehicle Info NeededDSS RACINGPART NUMBER: 915-4804-3582

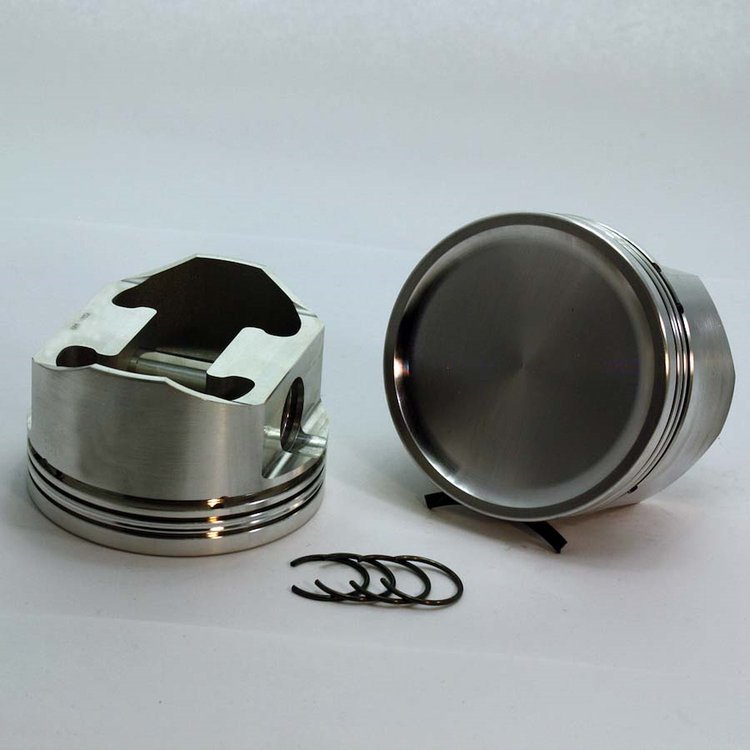

4804-3582 SX-Series Dish Top No-Notch Piston Set for 1997-2017 Ford Modular, 3.582 in. Bore, -18cc Volume [OEM Stroke]
$64995
Ships on 09/15/2026
Lowest Price GuaranteeFord Modular
SX-Series Dish Top No-Notch Piston Set1997-2017 Ford Modular Bore: 3.582 in. Head Volume: -18cc Material: Forged 4032 Pin Diameter: .866 in. Pin Style: Press or Full Floating Ring Thickness: 1.5/1.5/3 mm OEM Stroke Set of 8
DSS Racing 4804-3582 Features:
- Forged from Wear Resistant 4032 Alloy
- Light Weight Design
- Machined Valve Reliefs for Moderate Performance Head and Cam Combinations
- Precision CNC Finished Pin Bores
- Heavy-Duty Piston Pins
- Full Floating or Press Fit
- Double True Arc Pin Locks Provide Redundancy
- Drilled Oil Ring Drain Backs
- Precision Diamond-Turned Skirts
- Boost and NOS Ready! (Mild to Moderate Levels)
- Ring Set Required: RS-DM200-3582
- Ring Series: DM200
- Fits Base Engine: 4.6
- Compression Ratio: 44cc-9.54, 50cc-8.85, 53cc-8.55
- Calculated Zero Deck: 8.9145
- Compression Height: 1.21 in.
- Rod Length: 5.933 in.
- Stroke: 3.543 in. (OEM Stroke)
- Pin Locking Rings Included: Yes
- Wrist Pin Included: Yes
- Oil Rail Support Ring Included: N/A
- With Rings Without Rings: Without Rings
- Total Valve Reliefs: 0
Part TypePiston
BrandDSS RACING
Package Height7.0
Package Width8.5
Package Length8.5
Weight16.0 PG
Part CategoryPerformance Parts
Pin Lock Rings IncludedYes
Compression Height (In)1.21
Bore (In)3.582
Wrist Pin StylePress or Full Floating
QuantitySet of 8
Piston Head Volume-18cc
Piston StyleDish Top No Notch
Compression Ratio44cc-9.54, 50cc-8.85, 53cc-8.55
Ring Thickness1.5/1.5/3 mm
Piston MaterialForged 4032
Pin Diameter (In)0.866
Part FitmentSemi Universal
Wrist Pin IncludedYes
Snap Rings IncludedYes
Vendor Part Number4804-3582
Package Qty1
Package TypeEA
