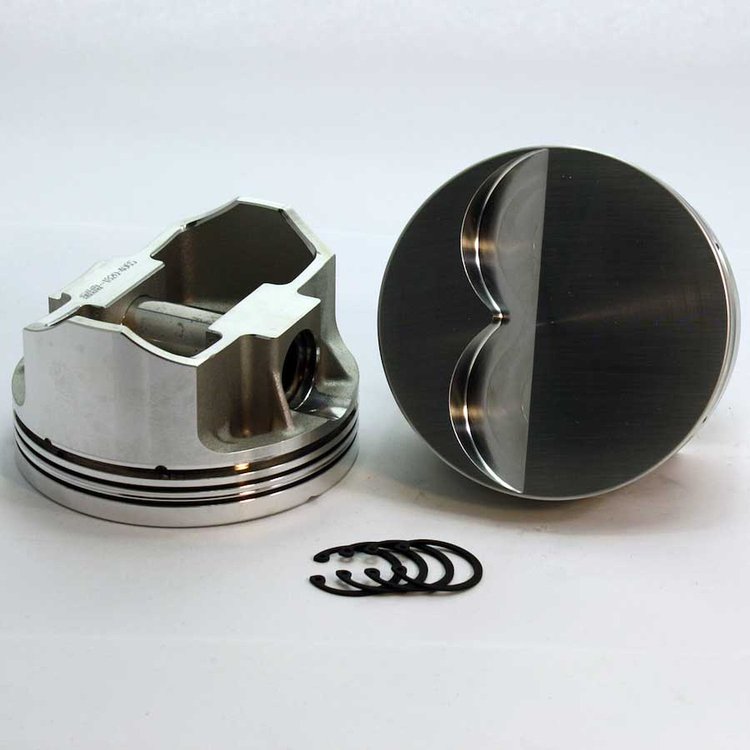

![8710-4000 E-Series Flat Top Piston Set for 1955-2004 Small Block Chevy, 4 in. Bore, -4cc Volume [Stroker]](https://www.jegs.com/images/mini_750/900/915/915-8710-4000.jpg)
Vehicle Info NeededDSS RACINGPART NUMBER: 915-8710-4000
8710-4000 E-Series Flat Top Piston Set for 1955-2004 Small Block Chevy, 4 in. Bore, -4cc Volume [Stroker]
$52995
Ships Tomorrow
Lowest Price GuaranteeChevy Small Block
E-Series Flat Top Piston Set1955-2004 Small Block Chevy Bore: 4.000 in. Head Volume: -4cc Material: Forged 4032 Pin Diameter: .927 in. Pin Style: Press or Full Floating Ring Thickness: 5/64-5/64-3/16 in. Stroker Set of 8
DSS Racing 8710-4000 Features:
- Forged from Wear Resistant 4032 Alloy
- Substantially Stronger than Hypereutectic Type Cast Pistons
- Fully Machined Piston Crown
- Light Weight Design
- Precision CNC Finished Pin Bores
- Heavy-Duty Piston Pins
- Full-Floating or Press Fit
- Double True Arc Pin Locks Provide Redundancy
- Forged Oil Drain-Back Window's
- Forged Side Relief's
- Precision Diamond-Turned Skirts
- Boost and NOS Ready! (Mild Levels)
- Ring Set Required: RS-MR100-4000
- Ring Series: MR100
- Fits Base Engine: 383
- Cylinder Head Style: 23-Degree
- Compression Ratio: 58cc-12.00, 64cc-11.13, 70cc-10.39
- Calculated Zero Deck: 9
- Compression Height: 1.425 in.
- Rod Length: 5.7 in.
- Stroke: 3.75 in. (Stroker)
- Pin Locking Rings Included: Yes
- Wrist Pin Included: Yes
- Oil Rail Support Ring Included: N/A
- With Rings Without Rings: Without Rings
- Total Valve Reliefs: 2
Part TypePiston
BrandDSS RACING
Package Height7.0
Package Width8.5
Package Length8.5
Weight16.0 PG
Part CategoryPerformance Parts
Pin Lock Rings IncludedYes
Compression Height (In)1.425
Bore (In)4
Wrist Pin StylePress or Full Floating
QuantitySet of 8
Piston Head Volume-4cc
Piston StyleFlat Top
Compression Ratio58cc-12.00, 64cc-11.13, 70cc-10.39
Ring Thickness5/64-5/64-3/16"
Piston MaterialForged 4032
Pin Diameter (In)0.927
Part FitmentSemi Universal
Wrist Pin IncludedYes
Snap Rings IncludedYes
Vendor Part Number8710-4000
Package Qty1
Package TypeEA
