![8720-4000 E-Series Flat Top Piston Set for 1962-2001 Small Block Ford 302, 4 in. Bore, -3cc Volume [OEM Stroke]](https://www.jegs.com/images/mini_750/900/915/915-8720-4000.jpg)
Vehicle Info NeededDSS RACINGPART NUMBER: 915-8720-4000

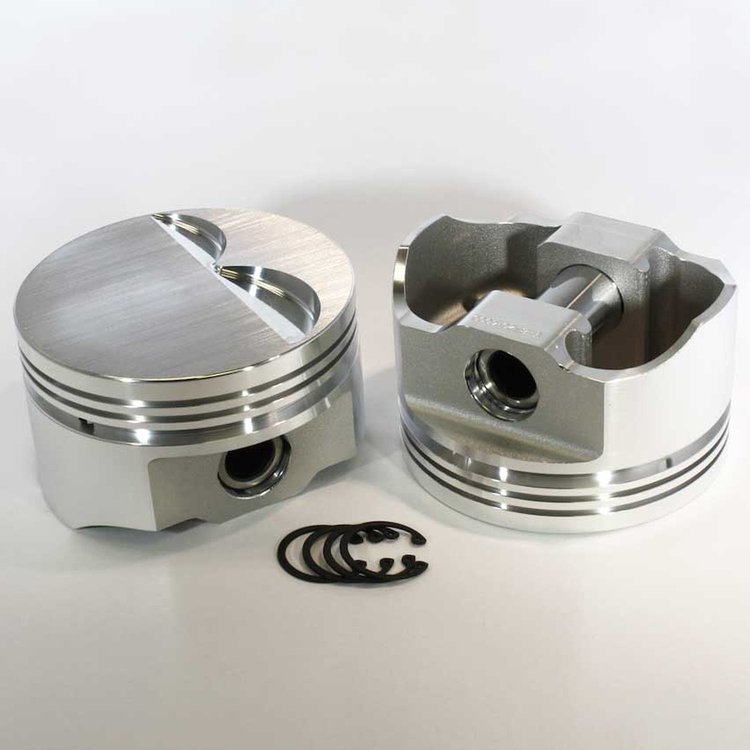

8720-4000 E-Series Flat Top Piston Set for 1962-2001 Small Block Ford 302, 4 in. Bore, -3cc Volume [OEM Stroke]
$49995
2 left in stock
Ships Today
Lowest Price GuaranteeFord Small Block
E-Series Flat Top Piston Set1962-2001 Small Block Ford 302 Bore: 4.000 in. Head Volume: -3cc Material: Forged 4032 Pin Diameter: .912 in. Pin Style: Press or Full Float Ring Thickness: 5/64-5/64-3/16 in. OEM Stroke Set of 8
DSS Racing 8720-4000 Features:
- Forged from Wear Resistant 4032 Alloy
- Substantially Stronger than Hypereutectic Type Cast Pistons
- Fully Machined Piston Crown
- Light Weight Design
- Precision CNC Finished Pin Bores
- Heavy-Duty Piston Pins
- Full-Floating or Press Fit
- Double True Arc Pin Locks Provide Redundancy
- Forged Oil Drain-Back Window's
- Forged Side Relief's
- Precision Diamond-Turned Skirts
- Boost and NOS Ready! (Mild Levels)
- Ring Set Required: RS-MR100-4000
- Ring Series: MR100
- Fits Base Engine: 302 - 5.0
- Cylinder Head Style: 20-Degree Inline
- Compression Ratio: 58cc-9.94, 64cc-9.22, 70cc-8.62
- Calculated Zero Deck: 8.19
- Compression Height: 1.6 in.
- Rod Length: 5.09 in.
- Stroke: 3 in. (OEM Stroke)
- Pin Locking Rings Included: Yes
- Wrist Pin Included: Yes
- Oil Rail Support Ring Included: N/A
- With Rings Without Rings: Without Rings
- Total Valve Reliefs: 2
Fully Forged and Machined Pistons
Upgrade your engine with the unbeatable performance of the DSS Racing E-Series Forged 4032 Pistons. Precision-honed piston pin bores and heavy-duty piston pins ensure maximum durability and reliability while full-floating or press-fit compatibility provides versatility. These fully-forged pistons come with double true-arc pin locks, forged oil drain backs, double valve notches, and diamond-turned piston skirts, resulting in superior performance. At an affordable price, the DSS E-Series forged pistons are the perfect choice for anyone looking to enhance their engine's performance.
Part TypePiston
Product LineDSS Racing E-Series Forged 4032 Pistons
BrandDSS RACING
Package Height6.9
Package Width8.6
Package Length8.7
Weight12.38 PG
Part CategoryPerformance Parts
Pin Lock Rings IncludedYes
Compression Height (In)1.6
Bore (In)4
Wrist Pin StylePress or Full Floating
QuantitySet of 8
Piston Head Volume-3cc
Piston StyleFlat Top
Compression Ratio58cc-9.94, 64cc-9.22, 70cc-8.62
Ring Thickness5/64-5/64-3/16"
Piston MaterialForged 4032
Pin Diameter (In)0.912
Part FitmentSemi Universal
Wrist Pin IncludedYes
Snap Rings IncludedYes
Vendor Part Number8720-4000
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
