![8723-4060C E-Series Dish Top Piston Set for 1962-2001 Small Block Ford 289, 4.060 in. Bore, -13cc Volume [OEM Stroke]](https://www.jegs.com/images/mini_750/900/915/915-8723-4060c.jpg)
Vehicle Info NeededDSS RACINGPART NUMBER: 915-8723-4060C

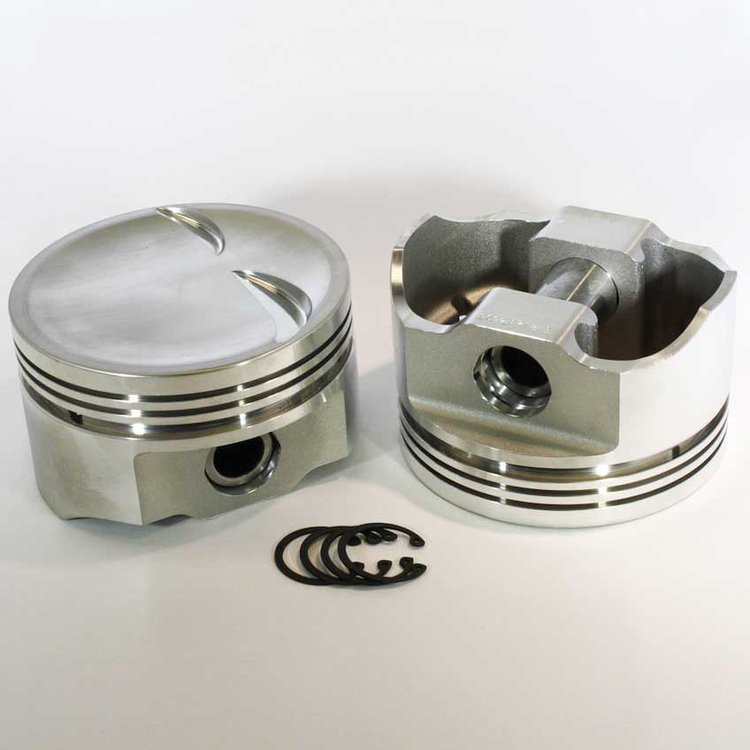

8723-4060C E-Series Dish Top Piston Set for 1962-2001 Small Block Ford 289, 4.060 in. Bore, -13cc Volume [OEM Stroke]
$49995
Ships on 09/15/2026
Lowest Price GuaranteeFord Small Block
E-Series Dish Top Piston Set1962-2001 Small Block Ford 289 Bore: 4.060 in. Head Volume: -13cc Material: Forged 4032 Pin Diameter: .912 in. Pin Style: Press or Full Float Ring Thickness: 5/64-5/64-3/16 in. OEM Stroke Set of 8
DSS Racing 8723-4060C Features:
- Forged from Wear Resistant 4032 Alloy
- Substantially Stronger than Hypereutectic Type Cast Pistons
- Fully Machined Piston Crown
- Light Weight Design
- Precision CNC Finished Pin Bores
- Heavy-Duty Piston Pins
- Full-Floating or Press Fit
- Double True Arc Pin Locks Provide Redundancy
- Forged Oil Drain-Back Window's
- Forged Side Relief's
- Precision Diamond-Turned Skirts
- Boost and NOS Ready! (Mild Levels)
- Ring Set Required: RS-MR100-4060
- Ring Series: MR100
- Fits Base Engine: 289
- Cylinder Head Style: 20-Degree Inline
- Compression Ratio: 58cc-8.65, 64cc-8.12, 70cc-7.65
- Calculated Zero Deck: 8.19
- Compression Height: 1.6 in.
- Rod Length: 5.155 in.
- Stroke: 2.87 in. (OEM Stroke)
- Pin Locking Rings Included: Yes
- Wrist Pin Included: Yes
- Oil Rail Support Ring Included: N/A
- With Rings Without Rings: Without Rings
- Total Valve Reliefs: 2
Part TypePiston
BrandDSS RACING
Package Height7.0
Package Width8.5
Package Length8.5
Weight16.0 PG
Part CategoryPerformance Parts
Pin Lock Rings IncludedYes
Compression Height (In)1.6
Bore (In)4.06
Wrist Pin StylePress or Full Floating
QuantitySet of 8
Piston Head Volume-13cc
Piston StyleDish Top
Compression Ratio58cc-8.65, 64cc-8.12, 70cc-7.65
Ring Thickness5/64-5/64-3/16"
Piston MaterialForged 4032
Pin Diameter (In)0.912
Part FitmentSemi Universal
Wrist Pin IncludedYes
Snap Rings IncludedYes
Vendor Part Number8723-4060C
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
