Vehicle Info NeededDSS RACINGPART NUMBER: 915-8741-4030

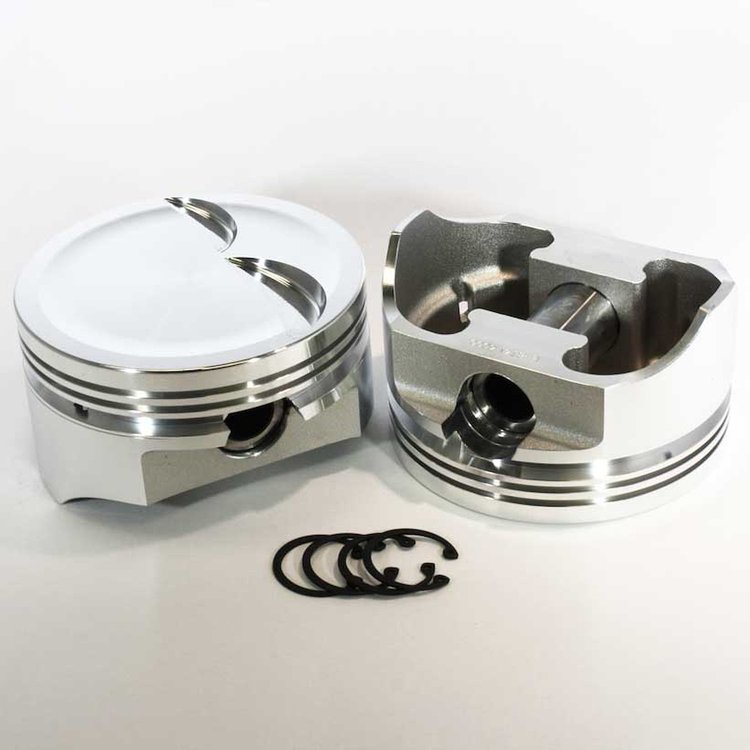

8741-4030 E-Series Dish Top Piston Set for 1962-2001 Small Block Ford 289-302, 4.030 in. Bore, -6cc Volume [Stroker]
$52995
1 left in stock
Ships on Sep 14, 2026
Lowest Price GuaranteeFord Small Block
E-Series Dish Top Piston Set1962-2001 Small Block Ford 289-302 Bore: 4.030 in. Head Volume: -6cc Material: Forged 4032 Pin Diameter: .927 in. Pin Style: Press or Full Float Ring Thickness: 5/64-5/64-3/16 in. Stroker Set of 8
DSS Racing 8741-4030 Features:
- Forged from Wear Resistant 4032 Alloy
- Substantially Stronger than Hypereutectic Type Cast Pistons
- Fully Machined Piston Crown
- Light Weight Design
- Precision CNC Finished Pin Bores
- Heavy-Duty Piston Pins
- Full-Floating or Press Fit
- Double True Arc Pin Locks Provide Redundancy
- Forged Oil Drain-Back Window's
- Forged Side Relief's
- Precision Diamond-Turned Skirts
- Boost and NOS Ready! (Mild Levels)
- Ring Set Required: RS-MR100-4030
- Ring Series: MR100
- Fits Base Engine: 347 Stroker
- Cylinder Head Style: 20-Degree Inline
- Compression Ratio: 58cc-10.82, 64cc-10.07, 70cc-9.43
- Calculated Zero Deck: 8.19
- Compression Height: 1.09 in.
- Rod Length: 5.4 in.
- Stroke: 3.4 in. (Stroker)
- Pin Locking Rings Included: Yes
- Wrist Pin Included: Yes
- Oil Rail Support Ring Included: Required
- With Rings Without Rings: Without Rings
- Total Valve Reliefs: 2
Part TypePiston
BrandDSS RACING
Package Height7.0
Package Width8.5
Package Length8.5
Weight16.0 PG
Part CategoryPerformance Parts
Pin Lock Rings IncludedYes
Compression Height (In)1.09
Bore (In)4.03
Wrist Pin StylePress or Full Floating
QuantitySet of 8
Piston Head Volume-6cc
Piston StyleDish Top
Compression Ratio58cc-10.82, 64cc-10.07, 70cc-9.43
Ring Thickness5/64-5/64-3/16"
Piston MaterialForged 4032
Pin Diameter (In)0.927
Part FitmentSemi Universal
Wrist Pin IncludedYes
Snap Rings IncludedYes
Vendor Part Number8741-4030
Package Qty1
Package TypeEA
