![8775-4030 E-Series Flat Top Piston Set for 1999-2019 Chevy LS, 4.030 in. Bore, -3cc Volume [OEM Stroke]](https://www.jegs.com/images/mini_750/900/915/915-8775-4030.jpg)
Vehicle Info NeededDSS RACINGPART NUMBER: 915-8775-4030

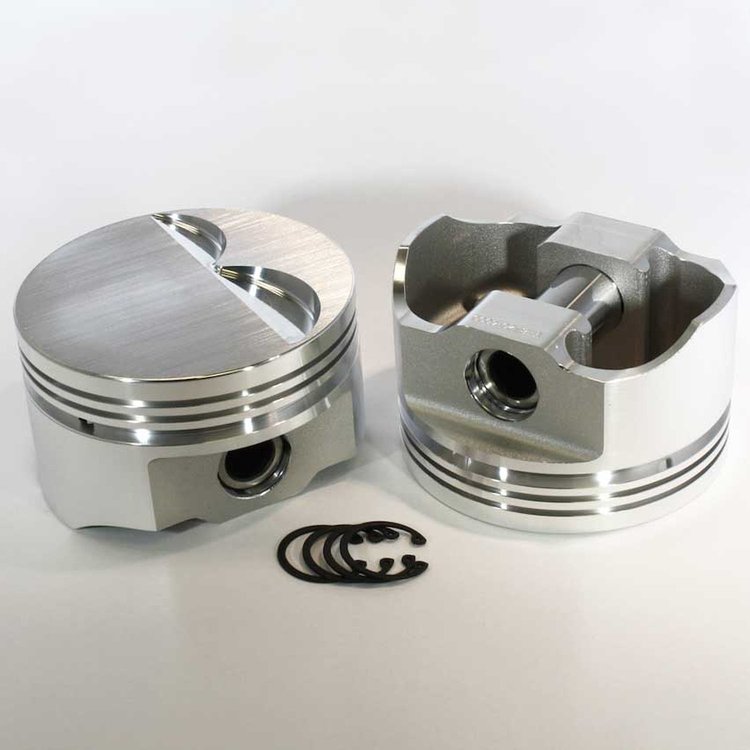

8775-4030 E-Series Flat Top Piston Set for 1999-2019 Chevy LS, 4.030 in. Bore, -3cc Volume [OEM Stroke]
$52995
5 left in stock
Ships Tomorrow
Lowest Price GuaranteeGM Gen III/IV LS
E-Series Flat Top Piston Set1999-2019 Chevy LS Bore: 4.030 in. Head Volume: -3cc Material: Forged 4032 Pin Diameter: .927 in. Pin Style: Press or Full Floating Ring Thickness: 1.5/1.5/3 mm OEM Stroke Set of 8
DSS Racing 8775-4030 Features:
- Forged from Wear Resistant 4032 Alloy
- Substantially Stronger than Hypereutectic Type Cast Pistons
- Fully Machined Piston Crown
- Light Weight Design
- Precision CNC Finished Pin Bores
- Heavy-Duty Piston Pins
- Full-Floating or Press Fit
- Double True Arc Pin Locks Provide Redundancy
- Forged Oil Drain-Back Window's
- Forged Side Relief's
- Precision Diamond-Turned Skirts
- Boost and NOS Ready! (Mild Levels)
- Ring Set Required: RS-DM200-4030
- Ring Series: DM200
- Fits Base Engine: 6.0 - LS2 -6.2 - LS3 - L98 - LQ9 - LS7 - LSA - LSX
- Compression Ratio: 64cc-11.06, 66cc-10.80, 72cc-10.09
- Calculated Zero Deck: 9.241
- Compression Height: 1.305 in.
- Rod Length: 6.125 in.
- Stroke: 3.622 in. (OEM Stroke)
- Pin Locking Rings Included: Yes
- Wrist Pin Included: Yes
- Oil Rail Support Ring Included: N/A
- With Rings Without Rings: Without Rings
- Total Valve Reliefs: 2
Fully Forged and Machined Pistons
Upgrade your engine with the unbeatable performance of the DSS Racing E-Series Forged 4032 Pistons. Precision-honed piston pin bores and heavy-duty piston pins ensure maximum durability and reliability while full-floating or press-fit compatibility provides versatility. These fully-forged pistons come with double true-arc pin locks, forged oil drain backs, double valve notches, and diamond-turned piston skirts, resulting in superior performance. At an affordable price, the DSS E-Series forged pistons are the perfect choice for anyone looking to enhance their engine's performance.
Part TypePiston
Product LineDSS Racing E-Series Forged 4032 Pistons
BrandDSS RACING
Package Height6.9
Package Width8.5
Package Length8.9
Weight11.815 PG
Part CategoryPerformance Parts
Pin Lock Rings IncludedYes
Compression Height (In)1.305
Bore (In)4.03
Wrist Pin StylePress or Full Floating
QuantitySet of 8
Piston Head Volume-3cc
Piston StyleFlat Top
Compression Ratio64cc-11.06, 66cc-10.80, 72cc-10.09
Ring Thickness1.5/1.5/3 mm
Piston MaterialForged 4032
Pin Diameter (In)0.927
Part FitmentSemi Universal
Wrist Pin IncludedYes
Snap Rings IncludedYes
Vendor Part Number8775-4030
Package Qty1
Package TypeEA
