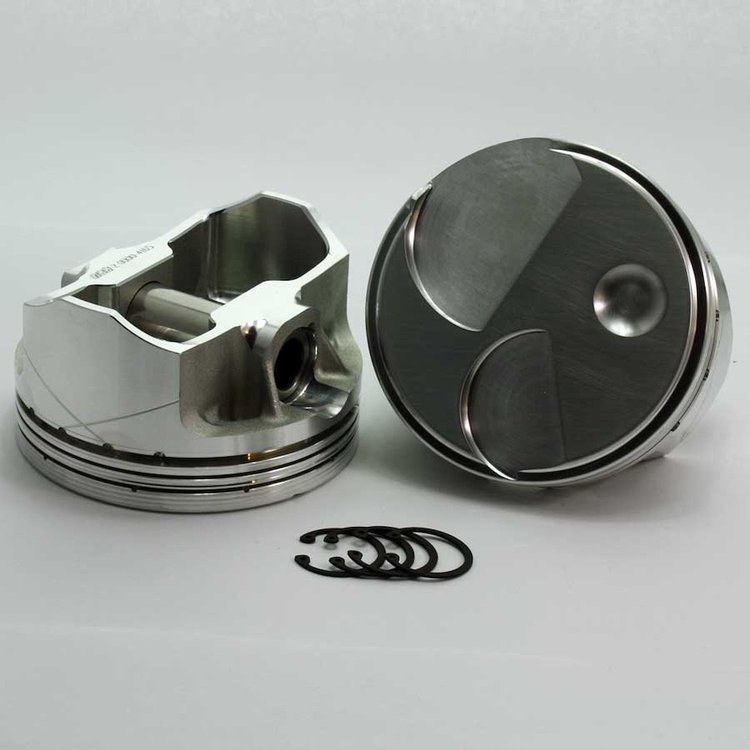

K1-3525-4030 FX-Series Dome Top Piston Set for 1962-2001 Small Block Ford 351W, 4.030 in. Bore, +7.5cc Volume [OEM Stroke]

Name: K1-3525-4030 FX-Series Dome Top Piston Set for 1962-2001 Small Block Ford 351W, 4.030 in. Bore, +7.5cc Volume [OEM Stroke]
Brand: DSS RACING
SKU: 915-K1-3525-4030
Price: 1018.95 USD
Availability: InStock

^$1,018⁹⁵

Ships on Sep 03, 2026

Lowest Price Guarantee

Ford Small Block

FX-Series Dome Top Piston Set

1962-2001 Small Block Ford 351W

Bore: 4.030 in.

Head Volume: +7.5cc

Material: Forged 4032

Pin Diameter: .912 in.

Pin Style: Press or Full Floating

Ring Thickness: 1.2/1.2/3 mm

OEM Stroke

Set of 8

DSS Racing K1-3525-4030 Features:

6 additional areas of CNC milling for weight reduction in non critical areas
Thinner Ring Grooves Maximize Critical Ring Land Strength
Larger CNC Machined Valve Reliefs for More Aggressive Head & Cam Combinations
Heavy-Duty Piston Pins
Double True Arc Pin Locks, Provide Redundancy
Precision CNC Finished Pin Bores
Drilled Forced Wrist Pin Oiling
Drilled Bottom Ring Land Intersecting Oil Drain Backs
Advanced Profile Precision Diamond-Turned Skirts
Boost and NOS Ready! (Moderate to High Levels)
Includes matching DSS Racing Ductile Moly ring set.
Ring Set Required: RS-XP600-4030
Ring Series: XP600
Fits Base Engine: 393W - 5.8 Clevor Stroker
Compression Ratio: 58cc-11.65, 64cc-10.66, 70cc-9.85
Calculated Zero Deck: 8.19
Compression Height: 1.6 in.
Rod Length: 5.09 in.
Stroke: 3 in. (OEM Stroke)
Pin Locking Rings Included: Yes
Wrist Pin Included: Yes
Oil Rail Support Ring Included: N/A
With Rings Without Rings: With Rings
Total Valve Reliefs: 2

Premium-Quality Forged Piston and Ring Kits

DSS FX-Series forged 4032 alloy piston sets with corresponding piston rings will withstand the demands of today's high-performance naturally aspirated, nitrous, or boosted engines. These premium aircraft-quality 4032 alloy pistons are forged and machined to perfection with internal gussets that provide added strength. Additionally, CNC milling removes non-critical material, resulting in a lighter weight and perfect balance of power, strength, and longevity. The DSS FX-Series piston patented X-Groove skirt design reduces damage caused by fuel washdown and break-in debris for superior skirt, cylinder, and ring life. This advanced skirt design is ideal in stroker engines and will improve piston stability and ring seal, resulting in quieter operation. Choose the pistons that best suit your application needs and push the limits of your engine combination.

Part TypePiston

Product LineDSS Racing FX1-Series Forged 4032 Piston and Ring Kits

BrandDSS RACING

Package Height10.0

Package Width10.0

Package Length10.0

Weight17.0 PG

Part CategoryPerformance Parts

Pin Lock Rings IncludedYes

Compression Height (In)1.6

Bore (In)4.03

Wrist Pin StylePress or Full Floating
