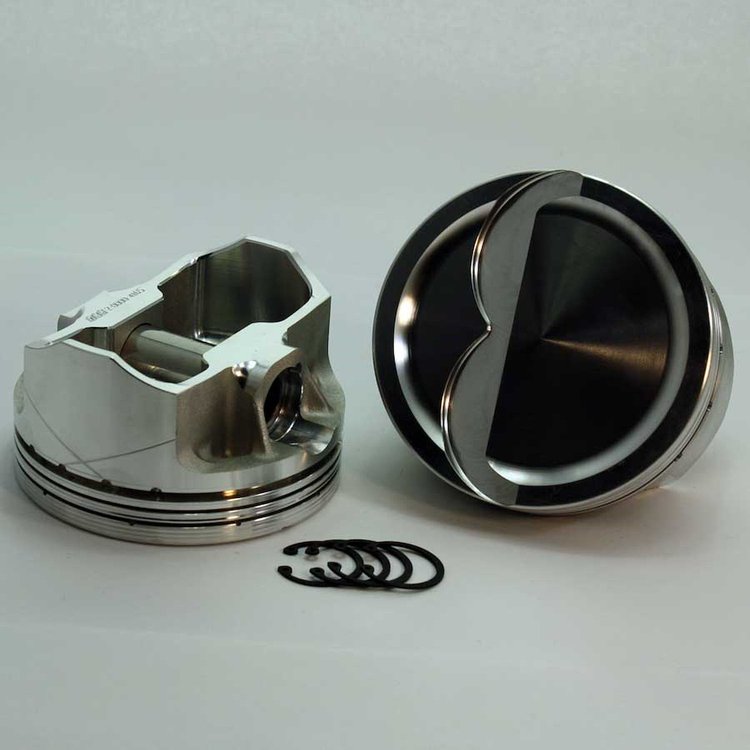

K1-5073-4050 FX-Series Dish Top Piston Set for 1958-1976 FE Ford, 4.050 in. Bore, -24cc Volume [Stroker]
InfoVehicle Info Needed
DSS RACINGPART NUMBER: 915-K1-5073-4050

K1-5073-4050 FX-Series Dish Top Piston Set for 1958-1976 FE Ford, 4.050 in. Bore, -24cc Volume [Stroker]

$83495
ShippingShips on 11/17/2026
Lowest PriceLowest Price Guarantee

Items You Need

Engine Assembly Lube [4 oz. Bottle]

JEGS

Engine Assembly Lube [4 oz. Bottle]

Part Number : 555-28000
$599$6.99
You Save$1.00
Piston Ring Pliers Installs and Removes Rings without Breakage

JEGS

Piston Ring Pliers Installs and Removes Rings without Breakage

Part Number : 555-80845
$647$6.99
You Save$0.52
Piston Installation Kit Includes: Universal Ring Squaring Tool, Ring Compressor, & Heavy Duty Piston Install Tool

PROFORM

Piston Installation Kit Includes: Universal Ring Squaring Tool, Ring Compressor, & Heavy Duty Piston Install Tool

Part Number : 778-67652K3
$9548
Wrinkle Band Ring Compressor Adjustable for 3" -5" Bore Sizes

JEGS

Wrinkle Band Ring Compressor Adjustable for 3" -5" Bore Sizes

Part Number : 555-W80574
$1599$17.99
You Save$2.00

Ford FE
FX-Series Dish Top Piston Set
  • 1958-1976 FE Ford
  • Bore: 4.050 in.
  • Head Volume: -24cc
  • Material: Forged 4032
  • Pin Diameter: .990 in.
  • Pin Style: Press or Full Floating
  • Ring Thickness: 1/16-1/16-3/16 in.
  • Stroker
  • Set of 8

    DSS Racing K1-5073-4050 Features:

    • 6 additional areas of CNC milling for weight reduction in non critical areas
    • Thinner Ring Grooves Maximize Critical Ring Land Strength
    • Larger CNC Machined Valve Reliefs for More Aggressive Head & Cam Combinations
    • Heavy-Duty Piston Pins
    • Double True Arc Pin Locks, Provide Redundancy
    • Precision CNC Finished Pin Bores
    • Drilled Forced Wrist Pin Oiling
    • Drilled Bottom Ring Land Intersecting Oil Drain Backs
    • Advanced Profile Precision Diamond-Turned Skirts
    • Boost and NOS Ready! (Moderate to High Levels)
    • Includes matching DSS Racing Ductile Moly ring set.
    • Ring Set Required: RS-DM400-4050
    • Ring Series: DM400
    • Fits Base Engine: 455
    • Compression Ratio: 65cc-10.21, 72cc-9.59, 76cc-9.27
    • Calculated Zero Deck: 10.16
    • Compression Height: 1.335 in.
    • Rod Length: 6.7 in.
    • Stroke: 4.25 in. (Stroker)
    • Pin Locking Rings Included: Yes
    • Wrist Pin Included: Yes
    • Oil Rail Support Ring Included: N/A
    • With Rings Without Rings: With Rings
    • Total Valve Reliefs: 2
    • Part TypePiston
    BrandDSS RACING
    Package Height10.0
    Package Width10.0
    Package Length10.0
    Weight17.0 PG
    Part CategoryPerformance Parts
    Pin Lock Rings IncludedYes
    Compression Height (In)1.335
    Bore (In)4.05
    Wrist Pin StylePress or Full Floating
    QuantitySet of 8
    Piston Head Volume-24cc
    Piston StyleDish Top
    Compression Ratio65cc-10.21, 72cc-9.59, 76cc-9.27
    Ring Thickness1/16-1/16-3/16"
    Piston MaterialForged 4032
    Pin Diameter (In)0.99
    Part FitmentSemi Universal
    Wrist Pin IncludedYes
    Snap Rings IncludedYes
    Vendor Part NumberK1-5073-4050
    Package Qty1
    Package TypeEA
    Please click here to download the instructions PDF file
