![K1-6470-4035V FX-Series Flat Top No-Notch Piston Set for 2008-2017 Mopar Viper/SRT, 4.035 in. Bore, -0cc Volume [OEM Stroke]](https://www.jegs.com/images/mini_750/900/915/915-k164704035v.jpg)
Vehicle Info NeededDSS RACINGPART NUMBER: 915-K164704035V

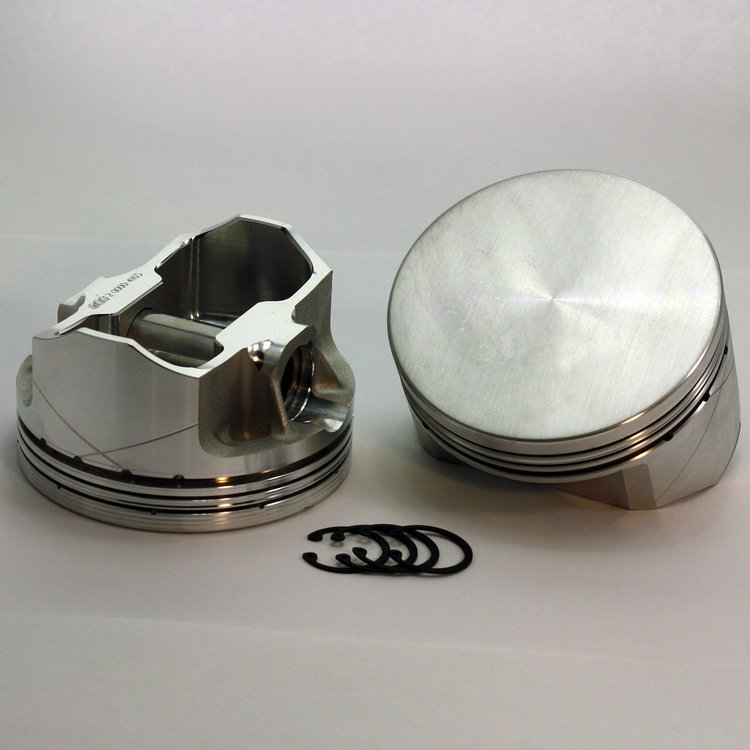

K1-6470-4035V FX-Series Flat Top No-Notch Piston Set for 2008-2017 Mopar Viper/SRT, 4.035 in. Bore, -0cc Volume [OEM Stroke]
$1,67895
Ships on 09/15/2026
Lowest Price GuaranteeMopar Viper/SRT
FX-Series Flat Top No-Notch Piston Set2008-2017 Mopar Viper/SRT Bore: 4.035 in. Head Volume: -0cc Material: Forged 4032 Pin Diameter: .945 in. Pin Style: Press or Full Floating Ring Thickness: 1.2/1.2/3 mm OEM Stroke Set of 10
DSS Racing K1-6470-4035V Features:
- 6 additional areas of CNC milling for weight reduction in non critical areas
- Thinner Ring Grooves Maximize Critical Ring Land Strength
- Larger CNC Machined Valve Reliefs for More Aggressive Head & Cam Combinations
- Heavy-Duty Piston Pins
- Double True Arc Pin Locks, Provide Redundancy
- Precision CNC Finished Pin Bores
- Drilled Forced Wrist Pin Oiling
- Drilled Bottom Ring Land Intersecting Oil Drain Backs
- Advanced Profile Precision Diamond-Turned Skirts
- Boost and NOS Ready! (Moderate to High Levels)
- Includes matching DSS Racing Ductile Moly ring set.
- Ring Set Required: RS-XP600-4035
- Ring Series: XP600
- Fits Base Engine: 512
- Compression Ratio: 64cc-12.46, 74cc-11.07, 84cc-9.98
- Calculated Zero Deck: 9.442
- Compression Height: 1.22 in.
- Rod Length: 6.242 in.
- Stroke: 3.96 in. (OEM Stroke)
- Pin Locking Rings Included: Yes
- Wrist Pin Included: Yes
- Oil Rail Support Ring Included: N/A
- With Rings Without Rings: With Rings
- Total Valve Reliefs: 0
Part TypePiston
BrandDSS RACING
Package Height10.0
Package Width10.0
Package Length10.0
Weight17.0 PG
Part CategoryPerformance Parts
Pin Lock Rings IncludedYes
Compression Height (In)1.22
Bore (In)4.035
Wrist Pin StylePress or Full Floating
QuantitySet of 10
Piston Head Volume-0cc
Piston StyleFlat Top No Notch
Compression Ratio64cc-12.46, 74cc-11.07, 84cc-9.98
Ring Thickness1.2/1.2/3 mm
Piston MaterialForged 4032
Pin Diameter (In)0.945
Part FitmentSemi Universal
Wrist Pin IncludedYes
Snap Rings IncludedYes
Vendor Part NumberK1-6470-4035V
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
