K1824-4065 SX-Series Dish Top Piston Set for 1999-2019 Chevy LS, 4.065 in. Bore, -22cc Volume [OEM Stroke]
InfoVehicle Info Needed
DSS RACINGPART NUMBER: 915-K1824-4065

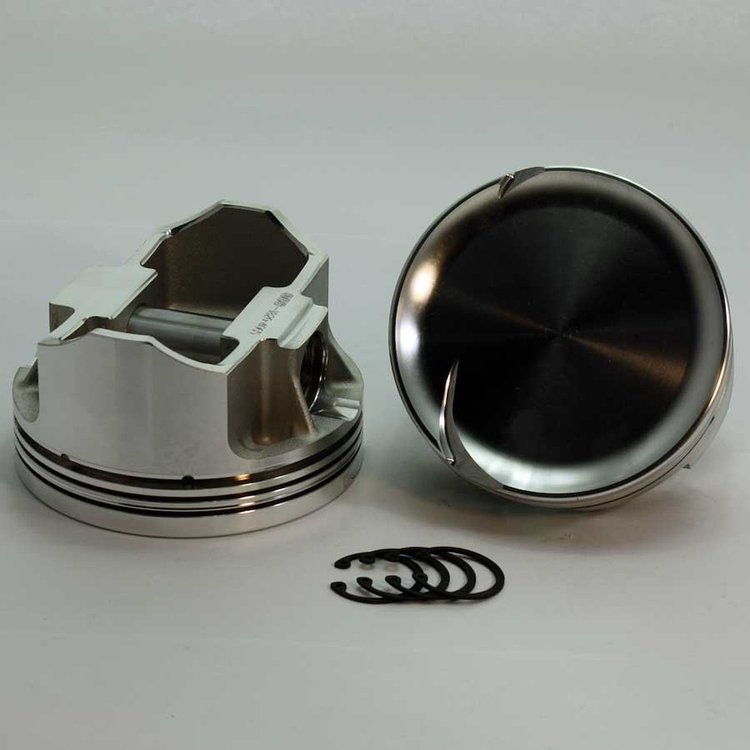

K1824-4065 SX-Series Dish Top Piston Set for 1999-2019 Chevy LS, 4.065 in. Bore, -22cc Volume [OEM Stroke]

$83895
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Items You Need

Engine Assembly Lube [4 oz. Bottle]

JEGS

Engine Assembly Lube [4 oz. Bottle]

Part Number : 555-28000
$599$6.99
You Save$1.00
Piston Ring Pliers Installs and Removes Rings without Breakage

JEGS

Piston Ring Pliers Installs and Removes Rings without Breakage

Part Number : 555-80845
$647$6.99
You Save$0.52
Piston Installation Kit Includes: Universal Ring Squaring Tool, Ring Compressor, & Heavy Duty Piston Install Tool

PROFORM

Piston Installation Kit Includes: Universal Ring Squaring Tool, Ring Compressor, & Heavy Duty Piston Install Tool

Part Number : 778-67652K3
$9548
Wrinkle Band Ring Compressor Adjustable for 3" -5" Bore Sizes

JEGS

Wrinkle Band Ring Compressor Adjustable for 3" -5" Bore Sizes

Part Number : 555-W80574
$1599$17.99
You Save$2.00

GM Gen III/IV LS
SX-Series Dish Top Piston Set
  • 1999-2019 Chevy LS
  • Bore: 4.065 in.
  • Head Volume: -22cc
  • Material: Forged 4032
  • Pin Diameter: .927 in.
  • Pin Style: Press or Full Floating
  • Ring Thickness: 1.5/1.5/3 mm
  • OEM Stroke
  • Set of 8

    DSS Racing K1824-4065 Features:

    • Forged from Wear Resistant 4032 Alloy
    • Light Weight Design
    • Machined Valve Reliefs for Moderate Performance Head and Cam Combinations
    • Precision CNC Finished Pin Bores
    • Heavy-Duty Piston Pins
    • Full Floating or Press Fit
    • Double True Arc Pin Locks Provide Redundancy
    • Drilled Oil Ring Drain Backs
    • Precision Diamond-Turned Skirts
    • Boost and NOS Ready! (Mild to Moderate Levels)
    • Includes matching DSS Racing Ductile Moly ring set.
    • Ring Set Required: RS-DM200-4065
    • Ring Series: DM200
    • Fits Base Engine: 6.0 - LS2 -6.2 - LS3 - L98 - LQ9 - LS7 - LSA - LSX
    • Compression Ratio: 64cc-9.15, 66cc-8.98, 72cc-8.51
    • Calculated Zero Deck: 9.241
    • Compression Height: 1.305 in.
    • Rod Length: 6.125 in.
    • Stroke: 3.622 in. (OEM Stroke)
    • Pin Locking Rings Included: Yes
    • Wrist Pin Included: Yes
    • Oil Rail Support Ring Included: N/A
    • With Rings Without Rings: With Rings
    • Total Valve Reliefs: 2

      • Quality Forged Piston Sets with Rings

      DSS Racing SX-Series forged piston and ring kits are a budget-friendly way to increase your engine's horsepower. These high-performance pistons are made of premium aluminum alloy and come with quality features, including forced pin oiling, drilled return holes, a turned dish design, and CNC diamond-turned skirts—not typically found in pistons at this price point. Whether using a blower, turbo, or nitrous, SX-forged pistons will quench your quest for horsepower.

    Part TypePiston
    Product LineDSS Racing SX-Series Forged 4032 Piston and Ring Kits
    BrandDSS RACING
    Package Height10.0
    Package Width10.0
    Package Length10.0
    Weight17.0 PG
    Part CategoryPerformance Parts
    Pin Lock Rings IncludedYes
    Compression Height (In)1.305
    Bore (In)4.065
    Wrist Pin StylePress or Full Floating
    QuantitySet of 8
    Piston Head Volume-22cc
    Piston StyleDish Top
    Compression Ratio64cc-9.15, 66cc-8.98, 72cc-8.51
    Ring Thickness1.5/1.5/3 mm
    Piston MaterialForged 4032
    Pin Diameter (In)0.927
    Part FitmentSemi Universal
    Wrist Pin IncludedYes
    Snap Rings IncludedYes
    Vendor Part NumberK1824-4065
    Package Qty1
    Package TypeEA
    Please click here to download the instructions PDF file
    Some parts are not legal for use in California or other states with similar laws / regulations
