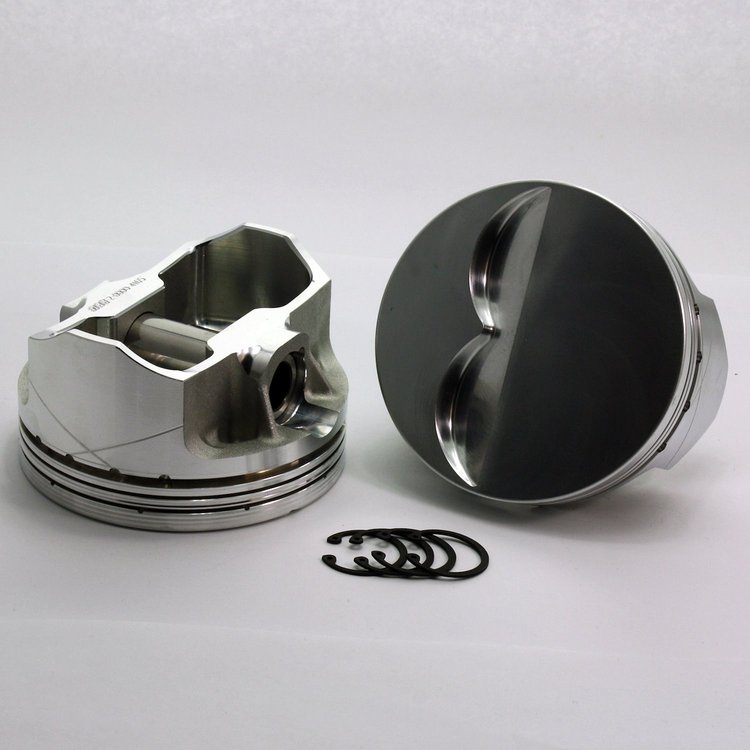

K2-6630-4165 FX-Series Flat Top Piston Set for 1970 AMC V8, 4.165 in. Bore, -3cc Volume [OEM Stroke]
InfoVehicle Info Needed
DSS RACINGPART NUMBER: 915-K2-6630-4165

K2-6630-4165 FX-Series Flat Top Piston Set for 1970 AMC V8, 4.165 in. Bore, -3cc Volume [OEM Stroke]

$99895
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Items You Need

Engine Assembly Lube [4 oz. Bottle]

JEGS

Engine Assembly Lube [4 oz. Bottle]

Part Number : 555-28000
$599$6.99
You Save$1.00
Piston Ring Pliers Installs and Removes Rings without Breakage

JEGS

Piston Ring Pliers Installs and Removes Rings without Breakage

Part Number : 555-80845
$647$6.99
You Save$0.52
Piston Installation Kit Includes: Universal Ring Squaring Tool, Ring Compressor, & Heavy Duty Piston Install Tool

PROFORM

Piston Installation Kit Includes: Universal Ring Squaring Tool, Ring Compressor, & Heavy Duty Piston Install Tool

Part Number : 778-67652K3
$9548
Wrinkle Band Ring Compressor Adjustable for 3" -5" Bore Sizes

JEGS

Wrinkle Band Ring Compressor Adjustable for 3" -5" Bore Sizes

Part Number : 555-W80574
$1599$17.99
You Save$2.00

AMC
FX-Series Flat Top Piston Set
  • 1970 AMC V8
  • Bore: 4.165 in.
  • Head Volume: -3cc
  • Material: Forged 2618
  • Pin Diameter: 1.000 in.
  • Pin Style: Press or Full Floating
  • Ring Thickness: 1/16-1/16-3/16 in.
  • OEM Stroke
  • Set of 8

    DSS Racing K2-6630-4165 Features:

    • Strong, Heat Resistant 2618 Alloy
    • Proprietary "DMAX" Multi Stage Forging Process, Produces' a Superior Forging
    • Patented "X Groove" Skirt for Superior Cylinder & Ring Performance & Durability
    • Advanced Ring Lands Featuring a Combination of Accumulators and Drilling Ops.
    • 6 additional areas of CNC milling for weight reduction in non critical areas.
    • Thinner Ring Grooves Maximize Critical Ring Land Strength
    • Larger CNC Machined Valve Reliefs for More Aggressive Head & Cam Combinations
    • Heavy-Duty Piston Pins
    • Double True Arc Pin Locks, Provide Redundancy
    • Precision CNC Finished Pin Bores
    • Drilled Forced Wrist Pin Oiling
    • Drilled Bottom Ring Land Intersecting Oil Drain Backs
    • Advanced Profile Precision Diamond-Turned Skirts
    • Ring Set Required: RS-DM400-4165
    • Ring Series: DM400
    • Fits Base Engine: 390
    • Compression Ratio: 50cc-13.90, 54cc-13.12, 58cc-12.42
    • Calculated Zero Deck: 9.235
    • Compression Height: 1.59 in.
    • Rod Length: 5.858 in.
    • Stroke: 3.574 in. (OEM Stroke)
    • Pin Locking Rings Included: Yes
    • Wrist Pin Included: Yes
    • Oil Rail Support Ring Included: N/A
    • With Rings Without Rings: With Rings
    • Total Valve Reliefs: 2
    • Part TypePiston
    BrandDSS RACING
    Package Height10.0
    Package Width10.0
    Package Length10.0
    Weight17.0 PG
    Part CategoryPerformance Parts
    Pin Lock Rings IncludedYes
    Compression Height (In)1.59
    Bore (In)4.165
    Wrist Pin StylePress or Full Floating
    QuantitySet of 8
    Piston Head Volume-3cc
    Piston StyleFlat Top
    Compression Ratio50cc-13.90, 54cc-13.12, 58cc-12.42
    Ring Thickness1/16-1/16-3/16"
    Piston MaterialForged 2618
    Pin Diameter (In)1
    Part FitmentSemi Universal
    Wrist Pin IncludedYes
    Snap Rings IncludedYes
    Vendor Part NumberK2-6630-4165
    Package Qty1
    Package TypeEA
    Please click here to download the instructions PDF file
