![K2-6847-4065C FX-Series Dome Top Piston Set for 2005-19 Small Block Mopar Hemi Gen-III, 4.065 in. Bore, +4cc Volume [OEM Stroke]](https://www.jegs.com/images/mini_750/900/915/915-k268474065c.jpg)
Vehicle Info NeededDSS RACINGPART NUMBER: 915-K268474065C

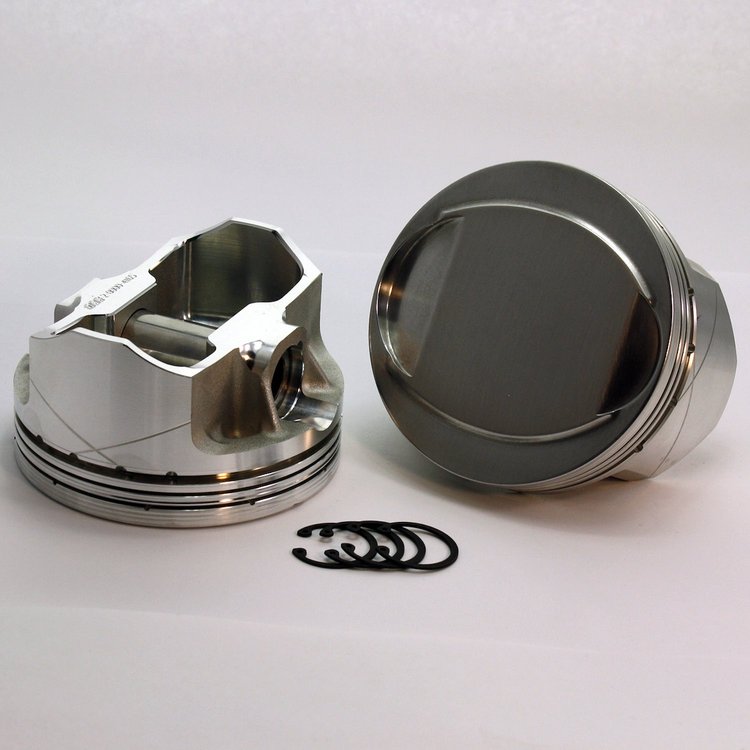

K2-6847-4065C FX-Series Dome Top Piston Set for 2005-19 Small Block Mopar Hemi Gen-III, 4.065 in. Bore, +4cc Volume [OEM Stroke]
$1,04895
Ships on 09/15/2026
Lowest Price GuaranteeMopar Gen III Hemi
FX-Series Dome Top Piston Set2005-19 Small Block Mopar Hemi Gen-III Bore: 4.065 in. Head Volume: +4cc Material: Forged 2618 Pin Diameter: .927 in. Pin Style: Press or Full Float Ring Thickness: 1.2/1.2/3 mm OEM Stroke Set of 8
DSS Racing K2-6847-4065C Features:
- Strong, Heat Resistant 2618 Alloy
- Proprietary "DMAX" Multi Stage Forging Process, Produces' a Superior Forging
- Patented "X Groove" Skirt for Superior Cylinder & Ring Performance & Durability
- Advanced Ring Lands Featuring a Combination of Accumulators and Drilling Ops.
- 6 additional areas of CNC milling for weight reduction in non critical areas.
- Thinner Ring Grooves Maximize Critical Ring Land Strength
- Larger CNC Machined Valve Reliefs for More Aggressive Head & Cam Combinations
- Heavy-Duty Piston Pins
- Double True Arc Pin Locks, Provide Redundancy
- Precision CNC Finished Pin Bores
- Drilled Forced Wrist Pin Oiling
- Drilled Bottom Ring Land Intersecting Oil Drain Backs
- Advanced Profile Precision Diamond-Turned Skirts
- Ring Set Required: RS-XP600-4065
- Ring Series: XP600
- Fits Base Engine: 392 - 6.4
- Compression Ratio: 65cc-12.38, 74cc-11.07, 85cc-9.83
- Calculated Zero Deck: 9.27
- Compression Height: 1.21 in.
- Rod Length: 6.2 in.
- Stroke: 3.72 in. (OEM Stroke)
- Pin Locking Rings Included: Yes
- Wrist Pin Included: Yes
- Oil Rail Support Ring Included: N/A
- With Rings Without Rings: With Rings
- Total Valve Reliefs: 2
High-Performance FX2 Forged Piston and Ring Sets
DSS FX-Series premium aircraft-quality 2618 alloy piston sets with corresponding piston rings are forged and machined to perfection with internal gussets that provide added strength to withstand the demands of today's high-performance naturally aspirated, Nitrous, or boosted engines. CNC milling removes non-critical material, resulting in a lighter weight and ideal balance of power, strength, and longevity. The DSS FX-Series piston patented X-Groove skirt design reduces damage caused by fuel washdown and break-in debris for superior skirt, cylinder, and ring life. This advanced skirt design is ideal in stroker engines and will improve piston stability and ring seal, resulting in quieter operation.
Part TypePiston
Product LineDSS Racing FX2-Series Forged 2618 Piston and Ring Kits
BrandDSS RACING
Package Height10.0
Package Width10.0
Package Length10.0
Weight17.0 PG
Part CategoryPerformance Parts
Pin Lock Rings IncludedYes
Compression Height (In)1.21
Bore (In)4.065
Wrist Pin StylePress or Full Floating
QuantitySet of 8
Piston Head Volume+4cc
Piston StyleDome Top
Compression Ratio65cc-12.38, 74cc-11.07, 85cc-9.83
Ring Thickness1.2/1.2/3 mm
Piston MaterialForged 2618
Pin Diameter (In)0.927
Part FitmentSemi Universal
Wrist Pin IncludedYes
Snap Rings IncludedYes
Vendor Part NumberK2-6847-4065C
Package Qty1
Package TypeEA
