![K8110-4000 SX-Series Flat Top Piston Set for 1955-2004 Small Block Chevy, 4 in. Bore, -5cc Volume [OEM Stroke]](https://www.jegs.com/images/mini_750/900/915/915-k8110-4000.jpg)
Vehicle Info NeededDSS RACINGPART NUMBER: 915-K8110-4000

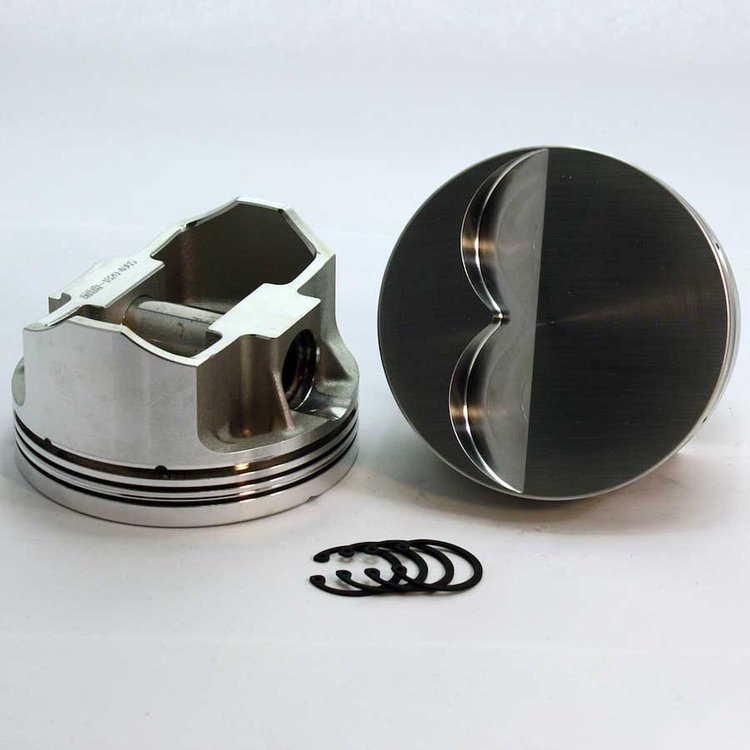

K8110-4000 SX-Series Flat Top Piston Set for 1955-2004 Small Block Chevy, 4 in. Bore, -5cc Volume [OEM Stroke]
$83895
Ships on 09/14/2026
Lowest Price GuaranteeChevy Small Block
SX-Series Flat Top Piston Set1955-2004 Small Block Chevy Bore: 4.000 in. Head Volume: -5cc Material: Forged 4032 Pin Diameter: .927 in. Pin Style: Press or Full Floating Ring Thickness: 1/16-1/16-3/16 in. OEM Stroke Set of 8
DSS Racing K8110-4000 Features:
- Forged from Wear Resistant 4032 Alloy
- Light Weight Design
- Machined Valve Reliefs for Moderate Performance Head and Cam Combinations
- Precision CNC Finished Pin Bores
- Heavy-Duty Piston Pins
- Full Floating or Press Fit
- Double True Arc Pin Locks Provide Redundancy
- Drilled Oil Ring Drain Backs
- Precision Diamond-Turned Skirts
- Boost and NOS Ready! (Mild to Moderate Levels)
- Includes matching DSS Racing Ductile Moly ring set.
- Ring Set Required: RS-DM400-4000
- Ring Series: DM400
- Fits Base Engine: 350
- Cylinder Head Style: 23-Degree
- Compression Ratio: 58cc-11.06, 64cc-10.28, 70cc-9.61
- Calculated Zero Deck: 9
- Compression Height: 1.26 in.
- Rod Length: 6 in.
- Stroke: 3.48 in. (OEM Stroke)
- Pin Locking Rings Included: Yes
- Wrist Pin Included: Yes
- Oil Rail Support Ring Included: N/A
- With Rings Without Rings: With Rings
- Total Valve Reliefs: 2
Part TypePiston
BrandDSS RACING
Package Height10.0
Package Width10.0
Package Length10.0
Weight17.0 PG
Part CategoryPerformance Parts
Pin Lock Rings IncludedYes
Compression Height (In)1.26
Bore (In)4
Wrist Pin StylePress or Full Floating
QuantitySet of 8
Piston Head Volume-5cc
Piston StyleFlat Top
Compression Ratio58cc-11.06, 64cc-10.28, 70cc-9.61
Ring Thickness1/16-1/16-3/16"
Piston MaterialForged 4032
Pin Diameter (In)0.927
Part FitmentSemi Universal
Wrist Pin IncludedYes
Snap Rings IncludedYes
Vendor Part NumberK8110-4000
Package Qty1
Package TypeEA
