Chevy Small Block

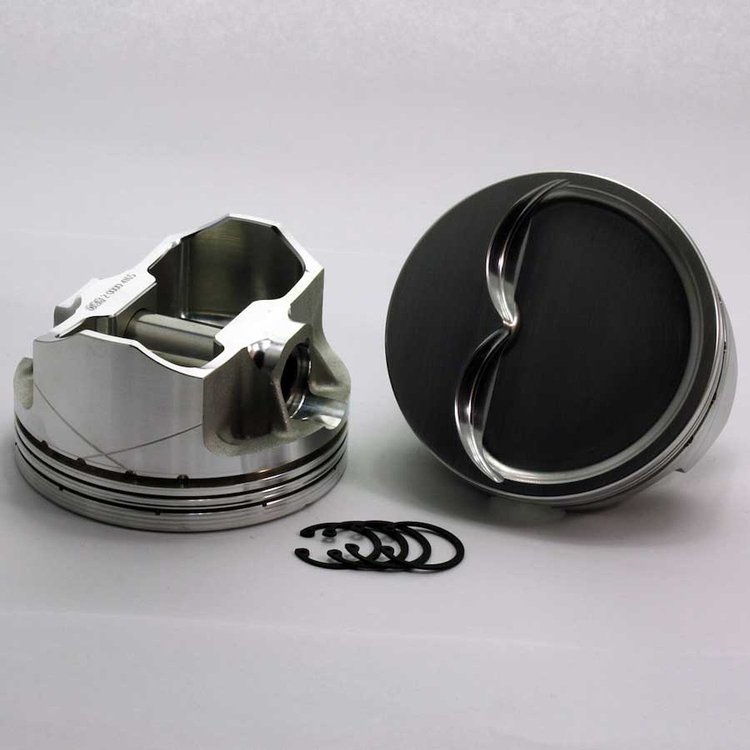

SX-Series Dish Top Piston Set
  • 1955-2004 Small Block Chevy
  • Bore: 4.060 in.
  • Head Volume: -16cc
  • Material: Forged 4032
  • Pin Diameter: .927 in.
  • Pin Style: Press or Full Floating
  • Ring Thickness: 1/16-1/16-3/16 in.
  • Stroker
  • Set of 8

    DSS Racing K8143-4060 Features:

    • Forged from Wear Resistant 4032 Alloy
    • Light Weight Design
    • Machined Valve Reliefs for Moderate Performance Head and Cam Combinations
    • Precision CNC Finished Pin Bores
    • Heavy-Duty Piston Pins
    • Full Floating or Press Fit
    • Double True Arc Pin Locks Provide Redundancy
    • Drilled Oil Ring Drain Backs
    • Precision Diamond-Turned Skirts
    • Boost and NOS Ready! (Mild to Moderate Levels)
    • Includes matching DSS Racing Ductile Moly ring set.
    • Ring Set Required: RS-DM400-4060
    • Ring Series: DM400
    • Fits Base Engine: 396
    • Cylinder Head Style: 23-Degree
    • Compression Ratio: 58cc-10.96, 64cc-10.28, 70cc-9.69
    • Calculated Zero Deck: 8.9995
    • Compression Height: 1.362 in.
    • Rod Length: 5.7 in.
    • Stroke: 3.875 in. (Stroker)
    • Pin Locking Rings Included: Yes
    • Wrist Pin Included: Yes
    • Oil Rail Support Ring Included: N/A
    • With Rings Without Rings: With Rings
    • Total Valve Reliefs: 2

      • Quality Forged Piston Sets with Rings

      DSS Racing SX-Series forged piston and ring kits are a budget-friendly way to increase your engine's horsepower. These high-performance pistons are made of premium aluminum alloy and come with quality features, including forced pin oiling, drilled return holes, a turned dish design, and CNC diamond-turned skirts—not typically found in pistons at this price point. Whether using a blower, turbo, or nitrous, SX-forged pistons will quench your quest for horsepower.

    Part TypePiston
    Product LineDSS Racing SX-Series Forged 4032 Piston and Ring Kits
    BrandDSS RACING
    Package Height10.0
    Package Width10.0
    Package Length10.0
    Weight17.0 PG
    Part CategoryPerformance Parts
    Pin Lock Rings IncludedYes
    Compression Height (In)1.362
    Bore (In)4.06
    Wrist Pin StylePress or Full Floating
    QuantitySet of 8
    Piston Head Volume-16cc
    Piston StyleDish Top
    Compression Ratio58cc-10.96, 64cc-10.28, 70cc-9.69
    Ring Thickness1/16-1/16-3/16"
    Piston MaterialForged 4032
    Pin Diameter (In)0.927
    Part FitmentSemi Universal
    Wrist Pin IncludedYes
    Snap Rings IncludedYes
    Vendor Part NumberK8143-4060
    Package Qty1
    Package TypeEA
    Please click here to download the instructions PDF file
