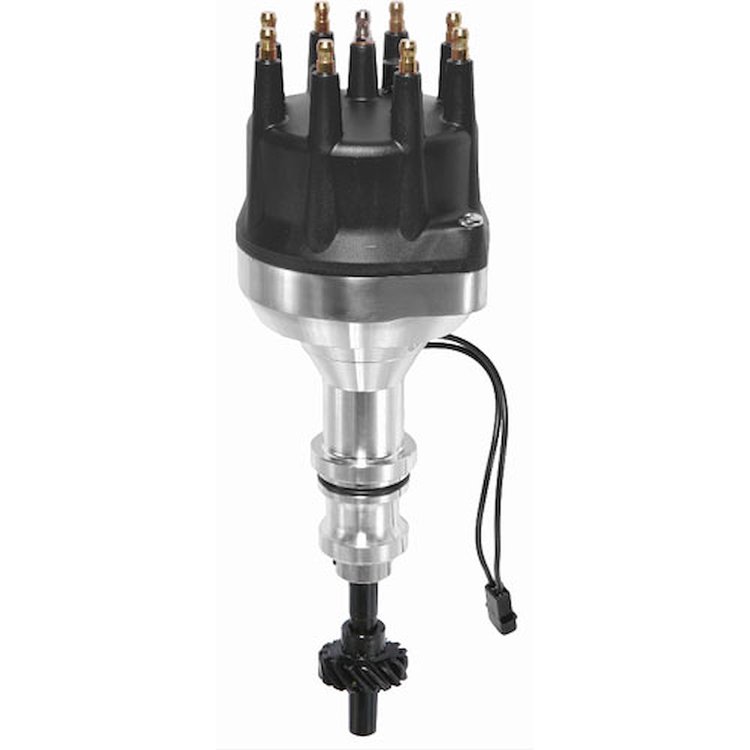

E3's DiamondFIRE Distributors are engineered to withstand the harshest motorsports environments of either street and race applications. All E3 DiamondFIRE Distributors feature a smaller cap and bowl designed to fit compact spaces and a CNC machined 6061-T6 aluminum housing that has O-ring grooves necessary for when using a fully machined engine block. Molded in high-quality 30% glass filled polyester (PBT), the cap, rotor and wire retainer offers both high impact and dielectric strength while resisting carbon tracking. The cap contacts are brass while the rotor spring is stainless steel, delivering long term maximum conductivity. DiamondFIRE Distributors are available for both Ford and Chevy applications.

Features:

• Special hot forging process that eliminates weak spots and porosity
• Precision stamped and blanked cam plate and weights
• Nylon rub pads
• Centerless ground shaft
• Fully adjustable mechanical advance
• Hardened iron drive gear
• Brass cap contacts
• Includes cap, rotor, wire retainer and mechanical advance curve kit

Note: Iron drive gears not compatible with a billet steel hydraulic roller camshaft; a steel alloy drive gear is required.
