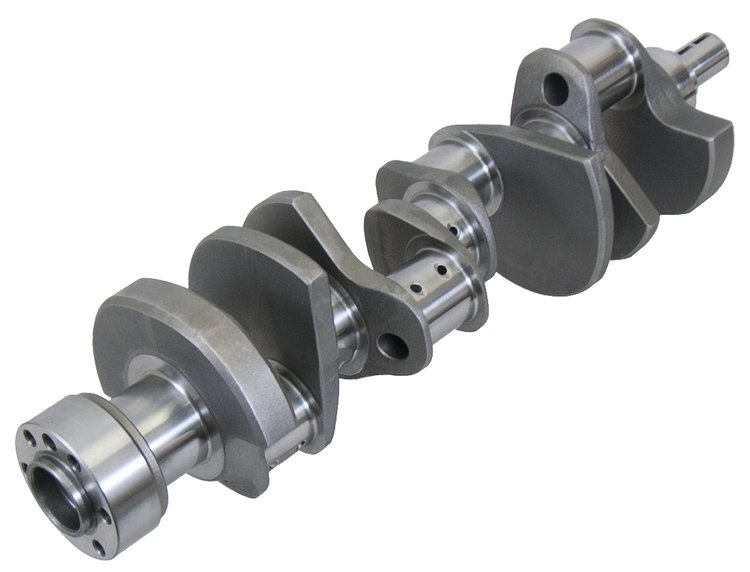

Chevrolet 350 Cast Steel Crankshaft 3.480" Stroke
InfoVehicle Info Needed
EAGLEPART NUMBER: 356-103523480

Chevrolet 350 Cast Steel Crankshaft 3.480" Stroke

$34099
ShippingShips on Sep 04, 2026
Lowest PriceLowest Price Guarantee

Chevrolet - Small Block
    Chevrolet 350 Cast Steel Crankshaft
  • 3.480'' Stroke
  • 1-Piece Rear Seal (Late Style)
  • Internal Balance in Front, External in Rear
  • 1870 Bobweight

    GM engineers redesigned the crankshafts used in production small-block V8 and V6/90° engines in 1986 to use a leak-resistant one-piece rear seal. This change from a two-piece seal to a one-piece seal required a change in the bolt pattern on the crankshaft flywheel flange. The engine block, oil pan, pan gaskets, and flywheel were also redesigned to accommodate this one-piece seal. The bolt circle on pre-1986 production crankshafts is 3.58'' in diameter. 1986 and later cranks have a 3.00'' bolt circle. In addition, all cranks which use a one-piece seal require a counterweighted flywheel for proper engine balance.
Part TypeCrankshaft
BrandEAGLE
Package Height9.0
Package Width9.0
Package Length32.0
Weight35.0 PG
Part CategoryPerformance Parts
Crankshaft MaterialCast steel
Rod Journal Diameter2.1 in (53.3 mm)
Main Journal Diameter2.448 in (62.179 mm)
LightenedNo
QuantitySold individually
Crankshaft Snout StyleStandard
Main Bearings IncludedNo
Engine BalanceInternal
Rod Bearings IncludedNo
Rear Main Seal Style1-piece
Balancer Bolt Thread Size (In.)7/16-20
Requires Narrow BearingsNo
Part FitmentSemi Universal
Engine Stroke3.48 in (88.392 mm)
Vendor Part Number103523480
Package Qty1
Package TypeEA
