Vehicle Info NeededEAGLEPART NUMBER: 356-13010030

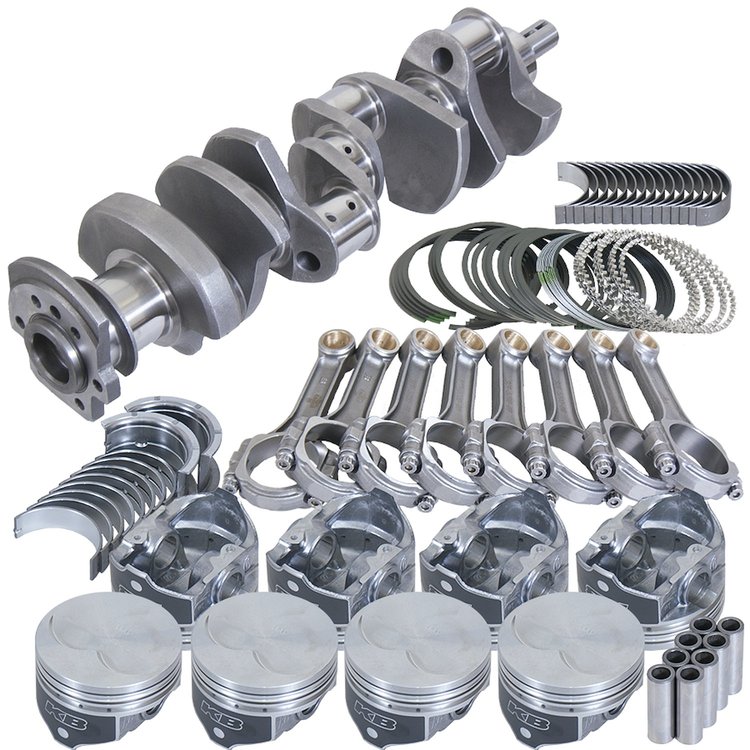

Chevy Small Block 400 Street and Strip Rotating Assemblies
$1,36599
3 left in stock
Ships on Sep 08, 2026
Lowest Price GuaranteeChevy Small Block 400 Street and Strip Rotating Assemblies3.750" Stroke 5.700" Rods Hypereutectic Pistons
Street and Strip Rotating Assembly
Stroke: 3.750
Disp. @ .030: 406
Rod Length: 5.700
Pistons: -7cc Flat Top
Rings: Standard
Comp. Ratio 58cc/64cc/76cc: 11.7/11.0/9.7
Stroke: 3.750
Disp. @ .030: 406
Rod Length: 5.700
Pistons: -7cc Flat Top
Rings: Standard
Comp. Ratio 58cc/64cc/76cc: 11.7/11.0/9.7
EAGLE SPECIALTY PRODUCTS 13010030 Features:
Eagle Street & Strip Rotating Assemblies are the perfect alternative to reworking O.E. Parts. Eagle takes great care to select the most cost effective parts for our Street & Strip assemblies without sacrificing quality. Eagle Street & Strip assemblies are recommended for use in naturally-aspirated, pump gas, street engines.Part TypeEngine Rotating Assembly Kit
BrandEAGLE
Package Height12.5
Package Width21.0
Package Length30.5
Weight65.0 PG
Part CategoryPerformance Parts
Crankshaft MaterialCast steel
Piston And Ring Oversize0.03 in (0.8 mm)
Main Bearing Undersize (Mm)Stock
Wrist Pin StyleFloating
Connecting Rod Beam StyleI-beam
Rod Bearing Undersize (Mm)Stock
Piston Ring Facing MaterialPlasmamoly
Piston StyleFlat top, with two valve reliefs
Assembly Lubricant IncludedNo
Piston Head Volume (Cc)7
Gaskets IncludedNo
Rear Main Seal Style2-piece
Main Bearing Undersize (In.)Stock
Crankshaft IncludedYes
Piston Rings IncludedYes
Bore (Mm)105.537
Actual Engine Cid406
Engine Stroke3.75 in (95.25 mm)
Connecting Rod MaterialForged 5140 steel
Pistons IncludedYes
Rod Bearing Undersize (In.)Stock
QuantitySold as a kit
Main Bearings IncludedYes
Engine BalanceExternal
Rod Bearings IncludedYes
Connecting Rods IncludedYes
Oil Pump IncludedNo
Camshaft IncludedNo
Timing Chain And Gears IncludedNo
BalancedNo
Piston MaterialHypereutectic aluminum
Cam Bearings IncludedNo
Part FitmentSemi Universal
Plastigage IncludedNo
Lifters IncludedNo
Bore4.155 in (105.537 mm)
Vendor Part Number13010030
Package Qty1
Package TypeEA
