Vehicle Info NeededEAGLEPART NUMBER: 356-14420020

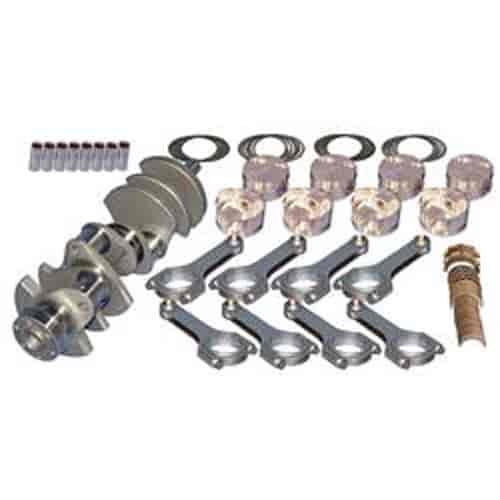

Eagle Ford Modular 4.6L Competition Rotating Assemblies
$3,06199
1 left in stock
Ships Today
Lowest Price Guarantee4 Valve Heads
- Competition Rotating Assembly -
Ford 4.6L
Stroke: 3.554
Disp. @ 3.572: 285
Rod Length: 5.933
Pistons: -17cc Inv. Dome
Rings: File Fit
Comp. Ratio 52.6cc: 8.6
Designed for Internal Balance - Flexplate/Flywheel and Balancer Not Included, Professional Machine Shop Balancing Required.
Eagle 4.6L crankshafts are designed with a center counterweight for durability. Only the Cobra cranks had center counterweights. If you are not using a Cobra block, some clearancing around the center counterweights will be required.
Part TypeEngine Rotating Assembly Kit
BrandEAGLE
Part CategoryPerformance Parts
Crankshaft MaterialForged 4340 steel
Piston And Ring Oversize0.02 in (0.5 mm)
Wrist Pin StyleFloating
Connecting Rod Beam StyleH-beam
Rod Bearing Undersize (Mm)Stock
Piston Ring Facing MaterialPlasmamoly
Piston StyleDish, with a D-shaped cup
Assembly Lubricant IncludedNo
Piston Head Volume (Cc)17
Gaskets IncludedNo
Rear Main Seal Style1-piece
Crankshaft IncludedYes
Piston Rings IncludedYes
Bore (Mm)90.703
Actual Engine Cid285
Engine Stroke3.554 in (90.272 mm)
Connecting Rod MaterialForged 4340 steel
Pistons IncludedYes
Rod Bearing Undersize (In.)Stock
QuantitySold as a kit
Main Bearings IncludedNo
Engine BalanceInternal
Rod Bearings IncludedYes
Connecting Rods IncludedYes
Oil Pump IncludedNo
Camshaft IncludedNo
Timing Chain And Gears IncludedNo
BalancedNo
Piston MaterialForged aluminum
Cam Bearings IncludedNo
Part FitmentSemi Universal
Plastigage IncludedNo
Lifters IncludedNo
Bore3.571 in (90.703 mm)
Vendor Part Number14420020
Package Qty1
Package TypeEA
