![Street & Strip Rotating Assembly for Ford FE 406, 428 Blocks [462 ci Displacement ]](https://www.jegs.com/images/mini_750/300/356/356-158024160.jpg)
Vehicle Info NeededEAGLEPART NUMBER: 356-158024160

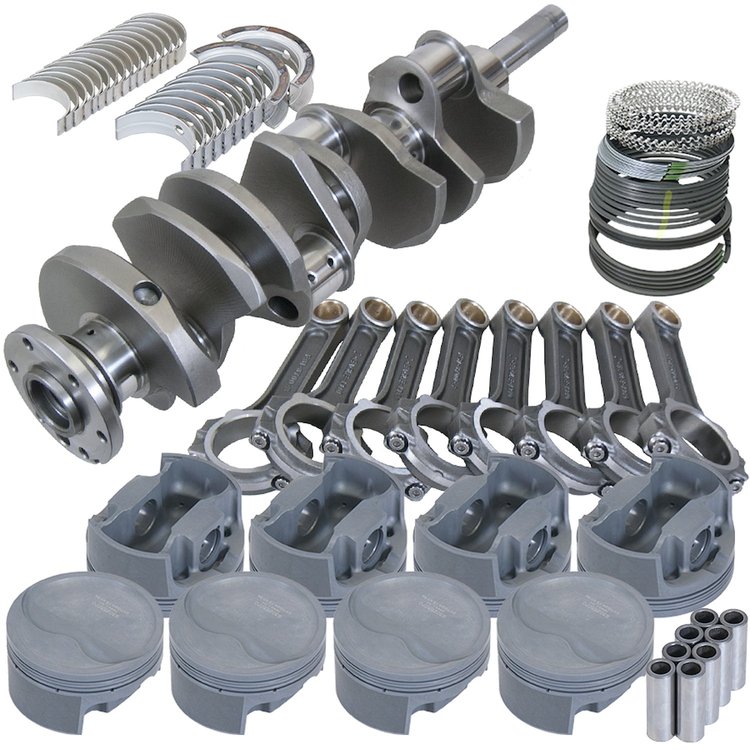

Street & Strip Rotating Assembly for Ford FE 406, 428 Blocks [462 ci Displacement ]
$2,26599
Ships on Sep 16, 2026
Lowest Price GuaranteeFord FE 406/428 Blocks
Street & Strip Rotating AssemblyFord FE 406, 428 Crankshaft: 4.250 in. Stroke, Cast Steel Pistons: 4.160 in. Bore, Forged 4032 -20 cc Dish Rods: 6.700 in. Length, Forged 5140 H-Beams File Fit Rings Unbalanced
Additional Information
- Must be balanced by a qualified machine shop before use, intended for internal balance
- Displaces 462 ci
- Standard 406 and 428 bore is 4.130 in.
- Mahle 4032 Forged Pistons
- 5140 Forged Steel "SIR" I-Beam Connecting Rods w/ 7/16 in. APR 8740 Rod Bolts
- File-Fit Piston Rings 1/16, 1/16, 3/16 in. Thickness
- Performance Street Bearings
- Recommended for use in pump-gas, street engines. No power adders.
Compression Ratios
Calculated at 4.165 in. bore size, the actual ratio may vary.
- 76 cc Chambers - 9.8
- 88 cc Chambers - 8.9
Crankshaft Specs
- Rod Journal: 2.200 in.
- Rod Journal Width: 2.000 in.
- Main Journal: 2.749 in.
- Typical Weight: 76 lbs.
Connecting Rod Dimensions
- Length: 6.700 in.
- Pin Fit: Bushed
- Rod Journal: 2.2000 in.
- Housing Bore: 2.3250 in.
- Pin Size: 0.990 in.
- Big End Width: 0.9900 in.
- Pin End Width: 1.1250 in.
- Thickness Above Pin: 0.210 in.
- Typical Weight: 860 g
- Torque: 63 ft.-lbs. with moly lube
Classic Ford FE Engine Bottom End Kits
Eagle Ford FE Street and Strip Rotating Assemblies have the perfect balance of reliability, affordability, and performance. These kits feature quality components including an Eagle cast steel crankshaft, Eagle forged rods, Mahle forged pistons, plasma moly rings, and performance bearings!
Part TypeEngine Rotating Assembly Kit
Product LineEagle Ford FE Street and Strip Rotating Assemblies
BrandEAGLE
Part CategoryPerformance Parts
Crankshaft MaterialCast steel
Main Bearing Undersize (Mm)Stock
Wrist Pin StyleFloating
Flexplate IncludedYes
Connecting Rod Beam StyleI-beam
Rod Bearing Undersize (Mm)Stock
Piston Ring Facing MaterialPlasmamoly
Engine Make/SizeFord FE
Piston StyleDish, with no valve reliefs
Flywheel IncludedNo
Assembly Lubricant IncludedNo
Piston Head Volume (Cc)-20
Gaskets IncludedNo
Rear Main Seal Style2-piece
Main Bearing Undersize (In.)Stock
Crankshaft IncludedYes
Piston Rings IncludedYes
Actual Engine Cid462
Engine Stroke4.25 in (107.95 mm)
Connecting Rod MaterialForged 5140 steel
Pistons IncludedYes
Rod Bearing Undersize (In.)Stock
QuantitySold as a kit
Main Bearings IncludedYes
Engine BalanceInternal
Rod Bearings IncludedYes
Connecting Rods IncludedYes
Connecting Rod Length Center To Center6.7 in (170.18 mm)
Oil Pump IncludedNo
Camshaft IncludedNo
Timing Chain And Gears IncludedNo
BalancedYes
Piston MaterialForged aluminum
Cam Bearings IncludedNo
Part FitmentSemi Universal
Plastigage IncludedNo
Bore4.16 in (105.664 mm)
Vendor Part Number158024160
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
