Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

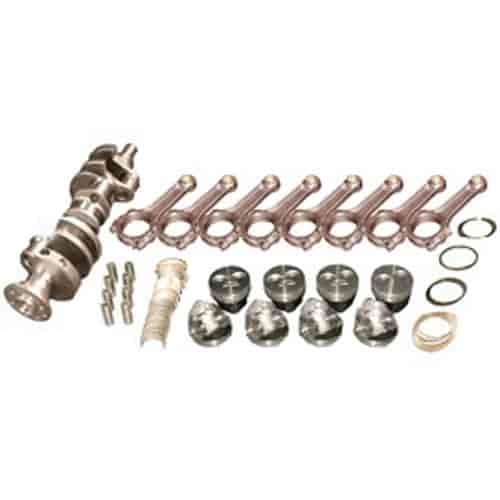

Mopar 360 Internally Balanced, Bushed Rods
Street & Strip Rotating AssemblyChrysler Small Block 360 408 Displacement Crankshaft: 4 in. Stroke, Cast Steel Pistons: 4.060 in. Bore, Forged 4032 -13 cc Dish Rods: 6.123 in. Length, 5140 I-Beams Unbalanced
Additional Information
- Intended for internal balanced, assembly comes unbalanced
- Mahle 4032 Forged Pistons
- 5140 Forged Steel "SIR" I-Bean Connecting Rods with 3/8 in. APR 8740 Rod Bolts
- Compression Ratios
Calculated with uncut block and .040 in. head gasket thickness
- 60 cc Chambers - 10.6
- 65 cc Chambers - 10.1
- 70 cc Chambers - 9.6
Crankshaft Specs
- Rod Journal: 2.125 in.
- Rod Journal Width: 1.874 in.
- Main Journal: 2.810 in.
- Snout Diameter: 1.530 in.
- Pilot Bore Diameter: 0.964 in.
- Flywheel Bolt Holes: 6
- Typical Weight: 56 lbs.
Connecting Rod Dimensions
- Length: 6.123 in.
- Pin Fit: Bushed
- Rod Journal: 2.1250 in.
- Housing Bore: 2.250 in.
- Pin Size: 0.984 in.
- Big End Width: 0.9300 in.
- Pin End Width: 1.060 in.
- Thickness Above Pin: 0.200 in.
- Typical Weight: 605 g
Part TypeEngine Rotating Assembly Kit
BrandEAGLE
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part Number20502060
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
